Low Price Good Quality Actuated Ball Valve ball

Supplier: Zhejiang Valogin Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr. Valogin VG
Price: $0.80 / >=500 pieces
Min. Order: 500 pieces

Click here to contact

Product details

Brand Name:	V&G;	Delivery:	Ningbo Port, 28 days after payment;
Place of Origin:	Zhejiang China;	Port:	NingBo;
Supply Ability:	5000000 Piece/Pieces per Week;	Lever Handle:	1/2"F20 , 3/4"F 25 , 1F32,1 1/4"F 40,1 1/2"F *50;
Payment Terms:	L/C,Western Union,D/P,T/T;	Guarantee time:	3 year;
Customized support:	OEM,ODM,OBM;	Material:	Brass;
Packaging:	Standard export package or Customized;	Packaging Detail:	Standard export package or Customized.;
Fields of applications:	Water;	MOQ:	500 pieces;
Connection End:	Thread;	Model Number:	VG10.77023;
Payment:	L/C,D/P,T/T,Western Union;	Female thread connections comply with:	ISO 228 ( BS2779);

Introduce

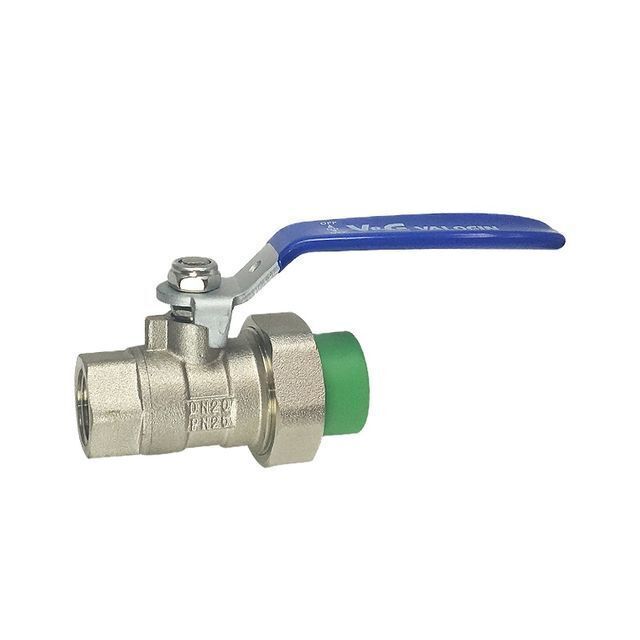

20 x 1/2" - 50 x 11/2" Valogin Nickel Plating 362.5 psi Brass Water PPR Ball Valve

Full flow DN20 x 1/2" - DN50 x 11/2" internal thread brass ball valves (brass ball & stem) fitted with Iron lever handle and PPR pipe are used for a variety of applications including oil & petroleum, and water. They are steam rated with PTFE stem packing. Pressure ratings are 25 bar/362.5 psi). EN13828 approval; Work normally from -20°C to 120°C under 25 bar or 362.5 psi; Ball & stem nickel-then-chrome plated for smooth operation.

Why Choose Us

WHY CHOOSE US ?

MARKET Our valve export $80 million. Our sales service networks have been established in more than 60 countries and regions in the global market .	AUTOMATION 70% of the capacity manufactu- red by automation.we achieve the target of 12 million pcs output monthly	CERTIFICATION Company- CNAS ISO9001 ISO18001 USA- UPC AB1953 NSF SA UL FM EUROPE- CE ACS DVGW WRAS EN215 INIG AUSTRALIA- WATERMARK AGA
R&D TEAM We have a r&d team of over 30 people. If you have a sample, the research and development time is a week.	PROJECTS We have the stable supply cap- acity, the annual output value exceeds 100 million.	SUPPLY ABILITY We are suppliers of many large projects, such as the London 2012 Olympics.

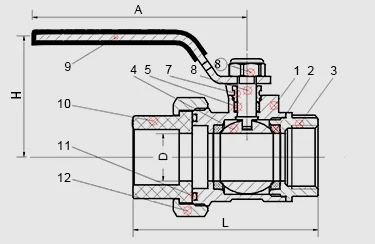

Product Description

PRODUCT DESCRIPTION

NO.

Part Name

Material

1	Body	Brass
2	Bonnet	Brass
3	Seat	PTFE
4	Ball	Brass
5	Stem	Brass
6	Packing	PTFE
7	Pressing cap	Q235
8	Handle	Q235
9	Check nut	304
10	Connect pipe	PPR
11	O-ring	Silica gel
10	Hexagon nut	Brass

Dimensions

Spec

DN20x1/2"	15	96	75	75
DN25 x3/4"	20	96	81.5	82.32
DN32 x1"	25	112.5	95	101

NO.

DN40 x1-1/4"5	32	144.5	113.5	117.43
DN50 x1-1/2"	38	144.5	135	130.2

Product Attributes

Item: Ball Valve
Size: 20x1/2" - 50x11/2"
Brass material: 59-3
Connection Type: pipe x Female BSP
Handle Material: IRON / AL
Handle Type: Lever
Stem Type: Blowout Proof
Stem Material: Brass
Seat Material: PTFE
Body Seal Material: PTFE

Ball Material: Chrome Plated Brass
Valve Basic Body Material: Brass
Surface Treatment: Nickel Plating
Application: Can be used for oil & petroleum, and water
Max. Temp: 20°C to+120°C
Working Pressure: -20°C to +120°C
Port: All
Features: Thread Standard Diameter
Standards: EN13828
