LISHAI On/Off Magnetic Welding Ground Clip / Neodymium Magnetic Welding Base 200A
- 18.00 10 - 99 pieces
- 16.50 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Screw size: | M10 | Custom Support: | OEM |
| Warranty: | 3 years | Packaging Details: | export small carton |
| brand: | Li Shuai | Material: | Neodymium magnet |
| weight: | 0.27KG | place of origin; place of origin: | Zhejiang, China |
| Single package size: | 64X35X60 cm | pull: | 30KG |
| current: | 200A | Rated output current: | 165A, 180A |
| Gross weight per piece: | 0.300 kg | Sales unit: | single product |
Product Description
Magnetic welding ground clip MWGC1-200
This soldered ground clip is designed to secure the ground cable to any ferromagnetic surface. The device adopts patented technology,
Features a strong grip along with plenty of shear grip to reduce sideways movement.
feature:
1. Suitable for clamping flat and round workpieces.
2. Simple operation. On/off is controlled by a switch.
3. Save time and cost.
Features a strong grip along with plenty of shear grip to reduce sideways movement.
feature:
1. Suitable for clamping flat and round workpieces.
2. Simple operation. On/off is controlled by a switch.
3. Save time and cost.
Specification

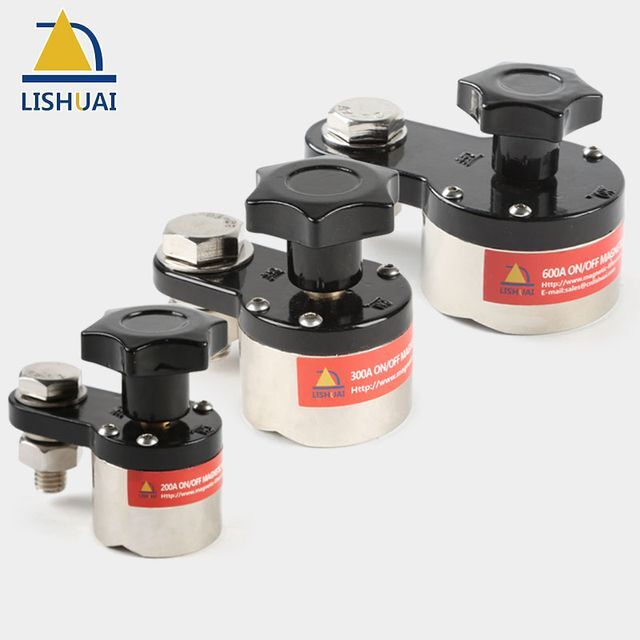

Model | Dimensions (mm) | Current (A) | Weight (kg) | Pull-off force(kg) |
MWGC1-200 | 64*35*60 | 200 | 0.27 | 30 |
MWGC1-300 | 71*42*60 | 300 | 0.37 | 40 |
MWGC1-600 | 95*55*62 | 600 | 0.54 | 70 |
