(15+ years) Lishuai CE certified steel plate permanent magnet jack/lifting magnet factory provides OEM service for round steel

Click here to contact
Product details
color:custom colorCore Components Warranty:3 years
Certification:Chief Executiveport:Ningbo/Shanghai
Rated lifting weight:0.1T-10TShowroom location:not any
Warranty:3 yearsMechanical test report:if
Health status:newApplicable industries:Building Materials Stores, Mechanical Repair Shops, Manufacturing Plants, Construction Engineering, Energy & Mining, Others
Supply capacity:1000 pieces per monthSafety factor (0.1T-1T):3.5 times
Core components:engineMarketing Type:normal product
payment terms:letter of credit, wire transferWeight (kg):40kg

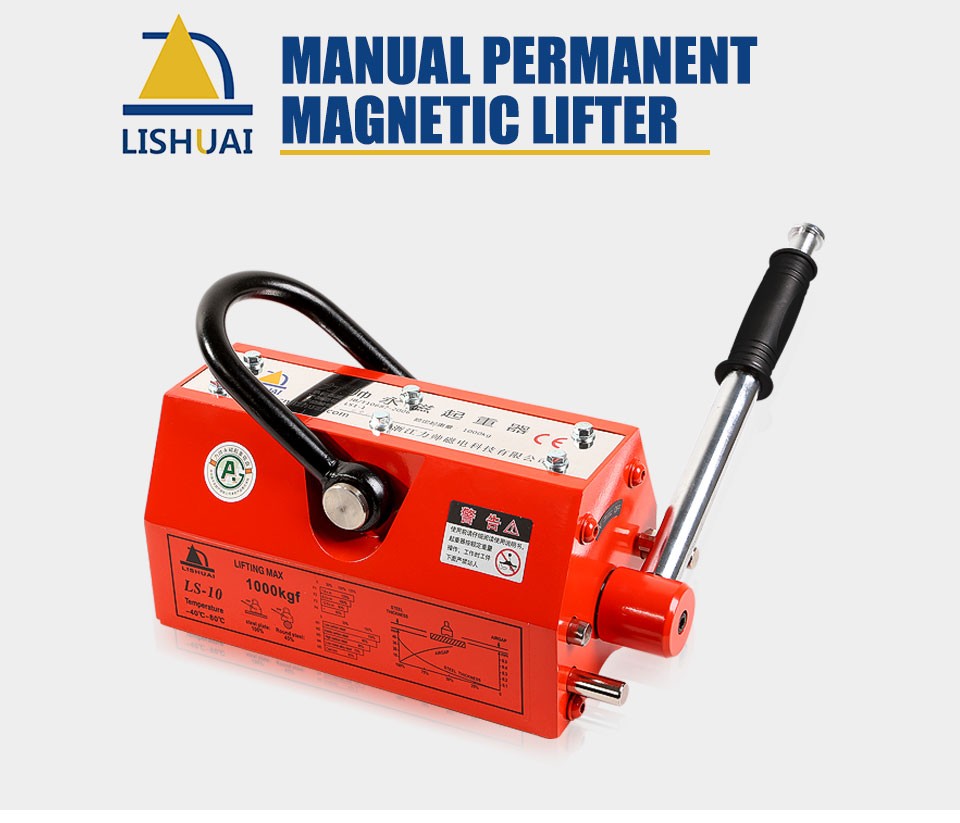

Video external inspection:ifproduct name:LS1 Permanent Magnet Lifter
Safety factor (1.5T-10T):3 timesPackaging Details:100kg-1000kg carton packaging, 1500kg-5T wooden box packaging
place of origin; place of origin:Zhejiang, Chinabrand:Li Shuai



1. Widely used in machining and mold processing industries.

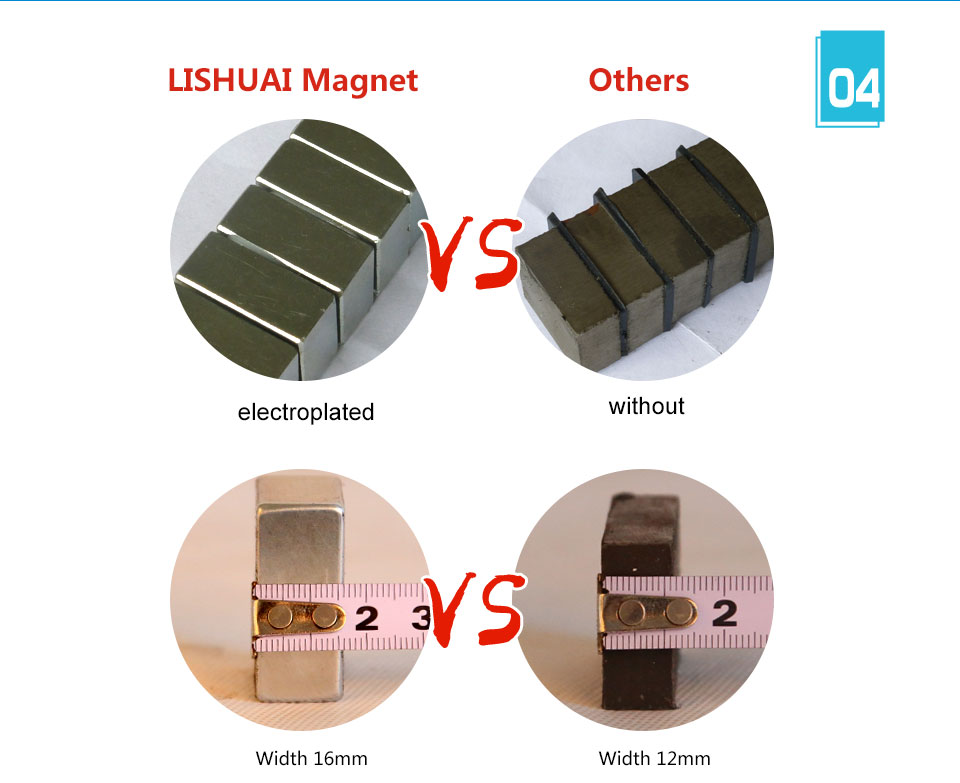

2. Using high-performance permanent magnet material, strong magnetic force, unique circuit design, almost zero remanence.
3. The safety factor is high, and the maximum magnetic force is 3.5 times the rated lifting capacity.
4. The handle switch with safety button is convenient for one-handed operation, which is more safe and convenient.

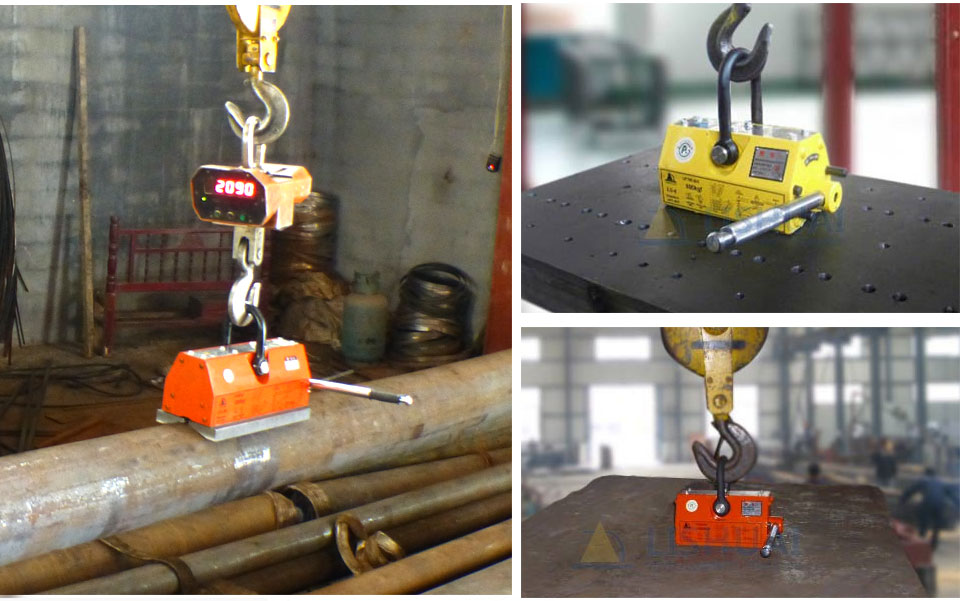

5. The "V" shape design at the bottom of the lifter can lift the round steel and steel plate.
6. No electricity, permanent magnetic force, safer to use, and can be used in the field.

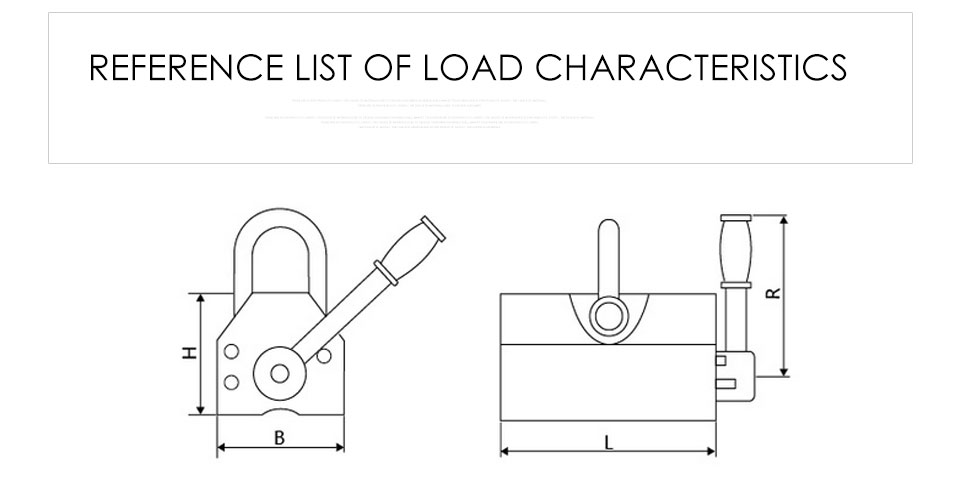

Model iron plate round steel Maximum pull-off force (kg) Dimensions (mm) Net weight (kg)
Maximum load (kg)

Minimum thickness

(mm)

longest length

(mm)

 Maximum load (kg) Maximum diameter (mm)

longest length

(mm)

 large Second H R

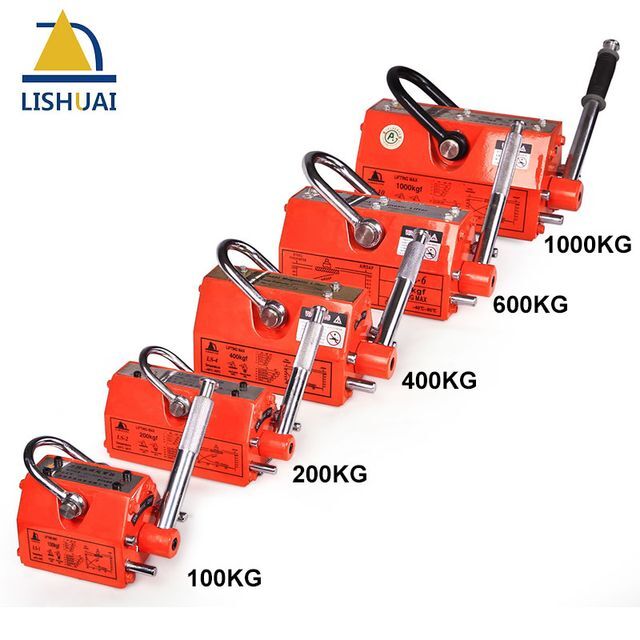

LS1-0.1 100 15 1500 45 Diameter 50 1000 350 94 72 78 145 3.2
LS1-0.2 200 20 1750 90 Diameter 75 1250 750 146 72 81 145 5.4
LS1-0.4 400 25 2000 180 Diameter 100 1750 1250 168 94 106 178 11
LS1-0.6 600 30 2250 270 Diameter 125 2000 2100 218 116 116 225 20
LS1-1 1000 40 2500 450 Diameter 150 2500 3500 272 145 145 295 40
LS1-1.5 1500 45 2750 675 Diameter 175 2750 5000 342 145 145 295 48
LS1-2 2000 55 3000 900 Diameter 200 3000 6000 388 160 170 365 74
LS1-3 3000 60 3000 1350 Diameter 225 3000 9000 460 185 185 425 105
LS1-5 5000 70 3000 - - - 15000 568 250 255 900 248
LS1-10 10000 120 3000 - - - 30000 586 567 308 1200 750

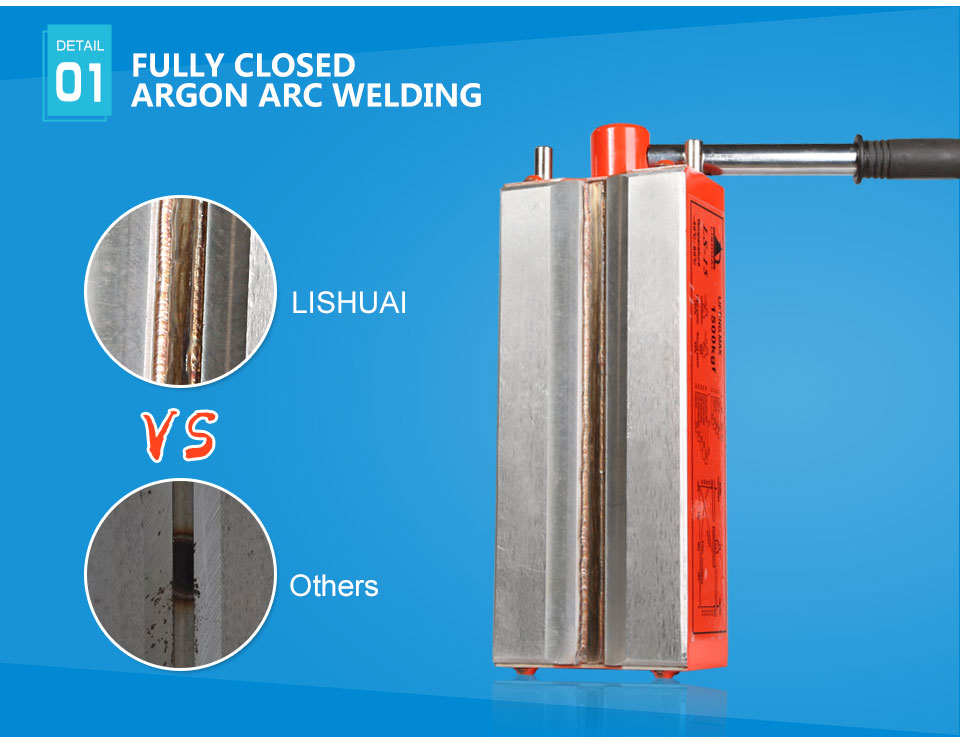

Advantage one: Fully enclosed argon arc welding; Avoid iron filings, dust, etc., and increase the service life.

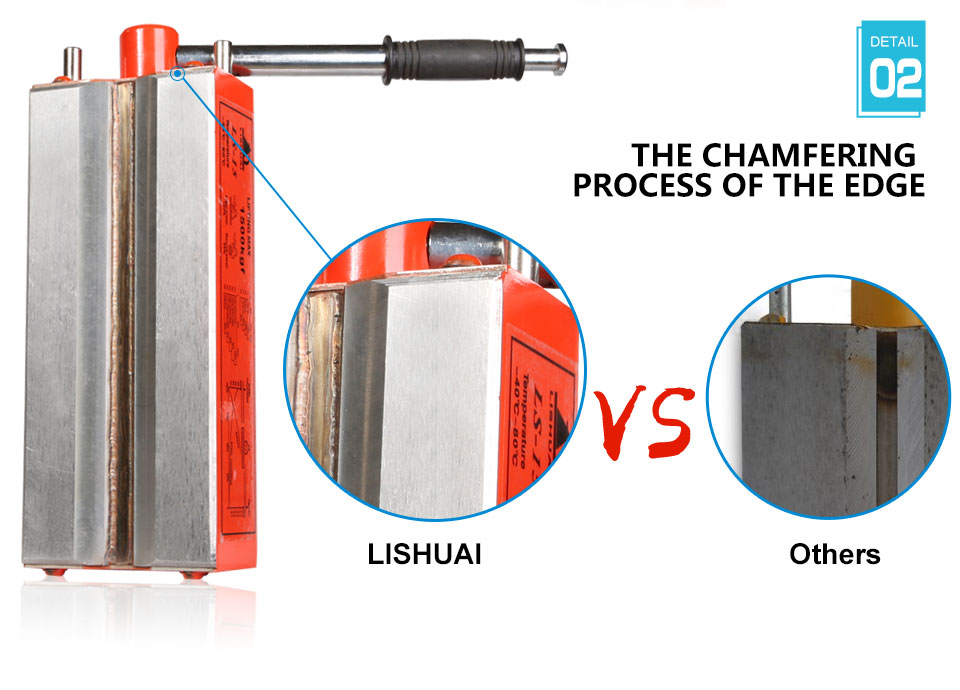

Advantage two: Edge Chamfering: Keep the bottom flat for better magnetism.

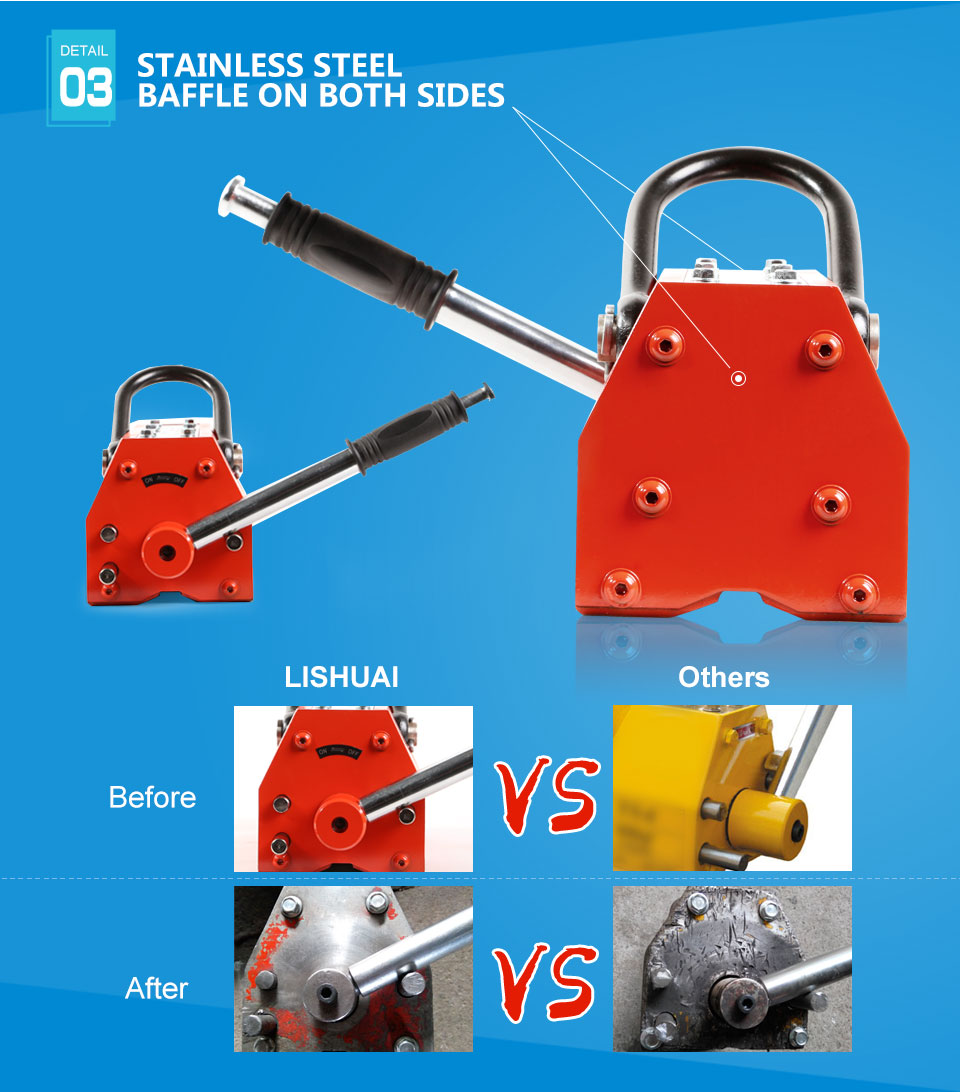

Advantage 3: Stainless steel bezel on both sides: Strong and impact resistant.
