Portable Internal Combustion Rail Track Grinding Machine

Supplier: Xiangyang Lianjie Mechanical&Electrical Co., Ltd
Region: Hubei, China
Contact: Mr Jodie Yuan
Price: $850.00 / 1 - 5 pieces
$700.00 / 6 - 10 pieces
$500.00 / 11 - 15 pieces
Min. Order: 1 piece

Click here to contact

Product details

Product Description

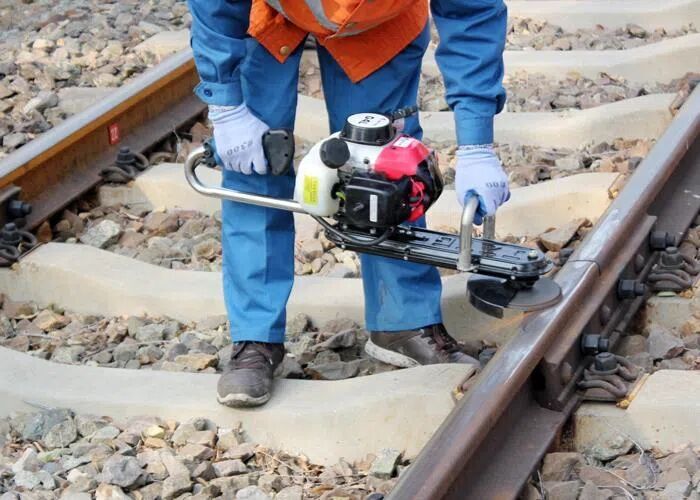

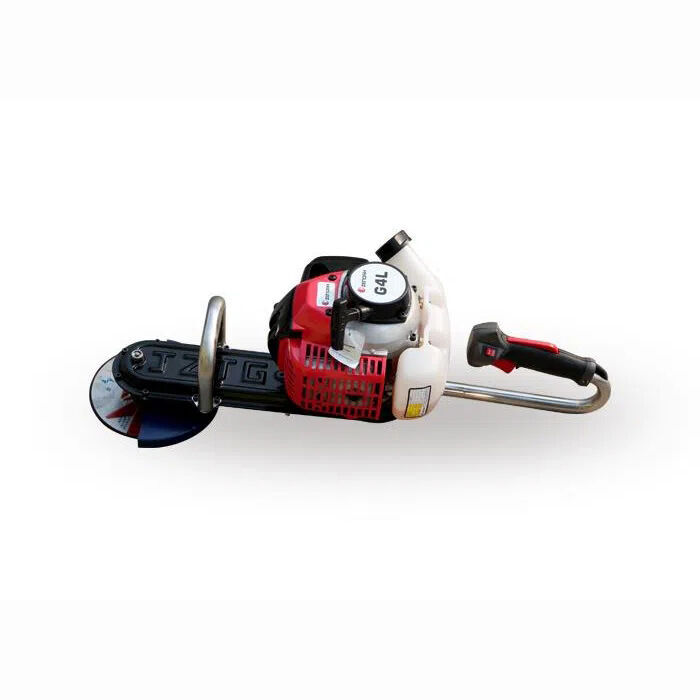

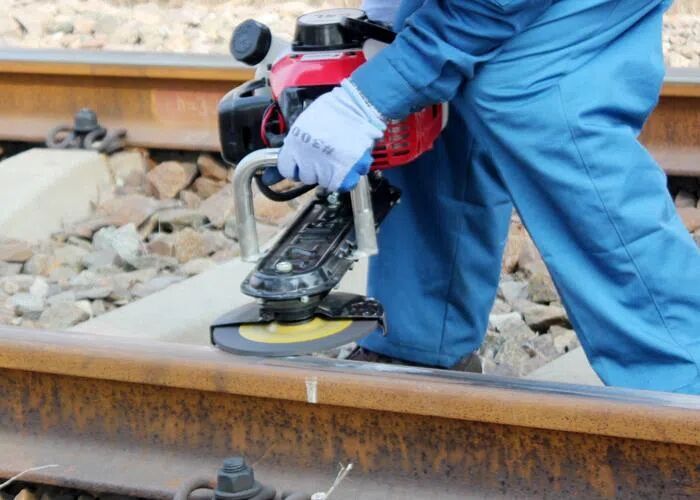

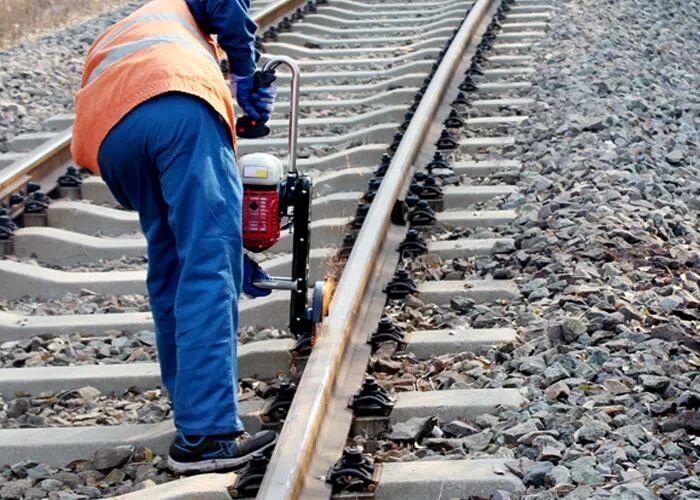

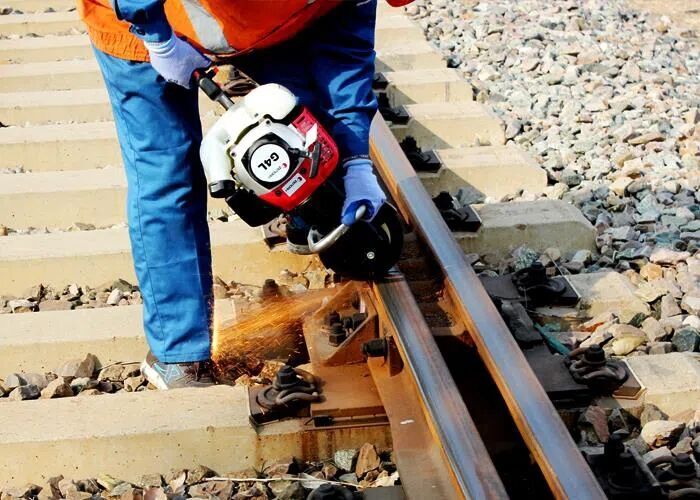

Internal Combustion Rail Grinding Machine

SNGM-180 portable internal combustion rail grinding machine for all types of rails for all-round grinding, its small size,flexible and lightweight, simple operation, high grinding efficiency, easy to carry, easy maintenance and repair, but also for other Occasions.

First, The gasoline and two-stroke Komatsu gasoline engine special lubricants mixed with 50: 1 ratio or the use of the market to sell the two-stroke oil 25: 1 ratio of mixing, and shake evenly. Specific methods refer to the gasoline engine manual.

Second, Check whether the wheel damage and moisture deformation, the end surface is smooth, if the normal use of the wheel should be replaced immediately. Press the stop button above the spindle (stop button can only be used as a disassembly lock nut, prohibited as a stop brake), use the machine to carry the wrench, the grinding wheel lock nut off, replace the new wheel The Install the grinding wheel with the same way to tighten the lock nut. (Note: If the lock nut is not easy to remove through the stop button, you can use other wrenches on the back of the grinding wheel in the flat side, and then forced to disassemble.

Third, Start the gasoline engine, no-load operation of not less than 30 seconds, one hand to hold the front armrest, one hand after holding the handrail, internal combustion engine warmer, gradually increase the throttle, if no abnormal sound, the equipment is running smoothly and then polished.

Specification

Model	SNGM-180
Type	Rail Grinding Machine
Material	Stainless Steel
Dimensions (L x W x H) (mm)	780 * 270 * 310mm
Petrol engine	Two-stroke gasoline engine, 1.42kW
Speed	≥7500r / min
Grinding wheel	∮ 180 × ∮22.2 × 6 Or ∮ 150 × ∮ 22 × 6
Wheel speed	≥ 70m / s
The spindle speed	≥ 6000r / min
Machine weight	7KG

Packing & Delivery

Wooden box, export standard

Company Profile

Xiangyang Lianjie Mechanical&Electrical Co.,Ltd.

Xiangyang Lianjie Mechanical&Electrical Co.,Ltd. Established in 2013,specialized in designing and manufacturing of the geometry measurement systems for the railway,including digital track gauges,mechanical gauge,rail wear gauge,turnout measurement gauges ect. Our products are China Railway Construction Corporation Limited (CRCC) approved.The products are used by CRCC for all their rail operation. Besides, our products are also being used by major rail operators in America, Australia, Europe and the ASEAN countries.The bitterness of poor quality remains long after the sweetness of low price is forgotten. Our mission is to manufacture high quality rail measurement instruments at a competitive price with reliable services to our clients in order to help them to maintain & operate a safe railway system.
