Portable Rail Web Printing Marking Machine

Click here to contact
Product details
Product Description

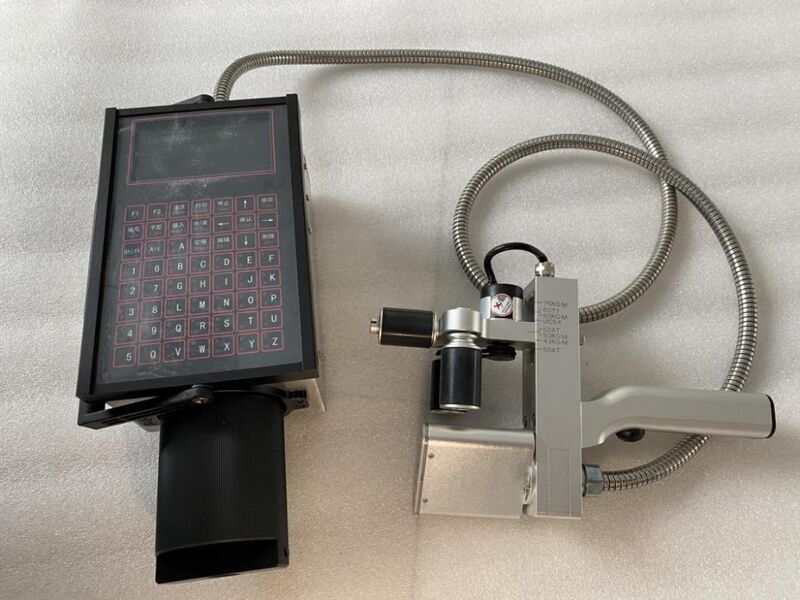

Rail Web Printer
Portable rail web printer is special design for printing rail number,rail code ,data ect . Be widely used in rail manufacture,rail maintenance department ,rail inspection department.Help you improve the work efficient.

Features
1. Small size, light weight 3kg 2. The character height can be adjusted between 15- 60mm 3. Multifunctional input method, easy to operate 4. Gas-liquid separation, to ensure that the air pump gas road is not blocked by ink. 5. 4.3 inch color LCD screen, humanized operation 6. 360 degree spray able.
Specification

Model

JM-188PLX

Type

Rail Printer

Dimensions (L x W x H) (mm)

205*130*110mm

Application rail type

Rail Web, available for 50AT,43KG/M,50KG/M,60AT,UIC54,60KG/M,60TY,75KG/M

Font height

15mm-60mm(Available for Chinese, numbers, English letters)

Software functions

Update the Time, Print batches, Counts, Shifts,Font upside-down, left-right flip

Spray printing pattern

Can spray trademark, logo, symbols

Date code

Support Century, Year, Month, Day, Hour, Minute, Second

Printing speed

Manual control

Print distance from the object surface

8mm (fixed)

Screen display

Display all printing parameters, can modify the settings by a simple click

Trigger mode

Photoelectric sensor trigger

Printing control

Encoder control

Printing direction

360 degree spray able

Printing material

Permeable or non-permeable materials available

Use ink

Water based ink (permeable surface) or oil based ink (non-permeable)

Ink color

Black, red, blue, yellow, white, optional

Ink supply mode

Built-in air pump

Number of storage

100 messages, expandable to 200

Air supply pressure

0.01—0.06Mp adjustable

Power parameters

DC24V、1.5A ，Average power consumption≤ 30W

Charging time

≤3H（One charge can last 12H ）

Operating environment

Temperature -10℃-70 ℃, humidity 30%-70%

Cable length

1.8m (can be customized upon request)



Packing & Delivery

Aluminum box+carton box
