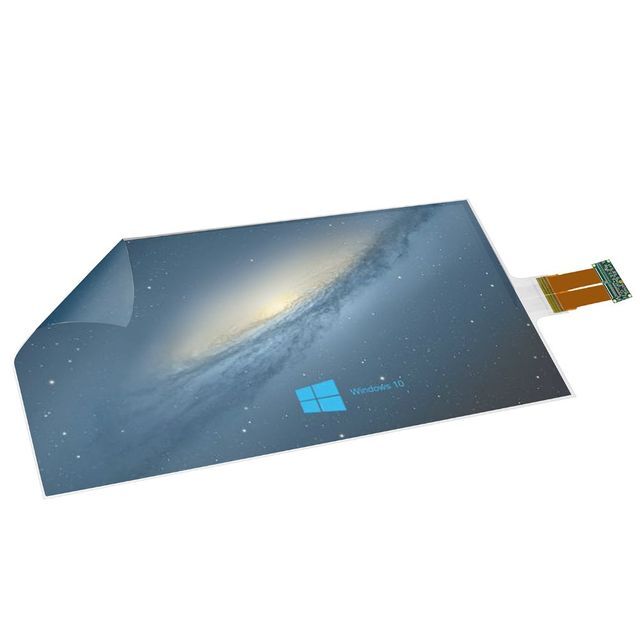

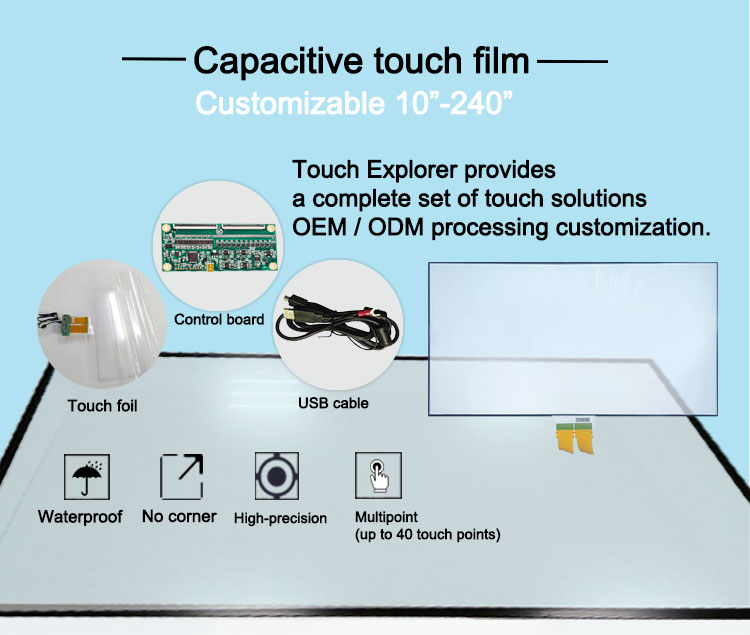

Flexible Multi Transparent Capacitive Touch Screen Foil Film with Touch Display/Panel/Foil Touch
- 98.70 1 - 29 pieces
- 78.00 >=30 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| operating system: | Win7/Win8/Android/Linux; | After-sale service: | Call center and online technical support, on-site training and inspection; |
| Warranty Period (Years): | 1 year; | Warranty: | 1 year; |
| color: | Transparent; | pack: | yes; |
| product name: | Flexible touch screen foil/display/panel/foil touch; | Single package size: | 105X14X0.4 cm; |
| series: | business use; | brand: | touch the planet; |
| Packaging Preview: | ; | Origin: | Jiangsu, China; |

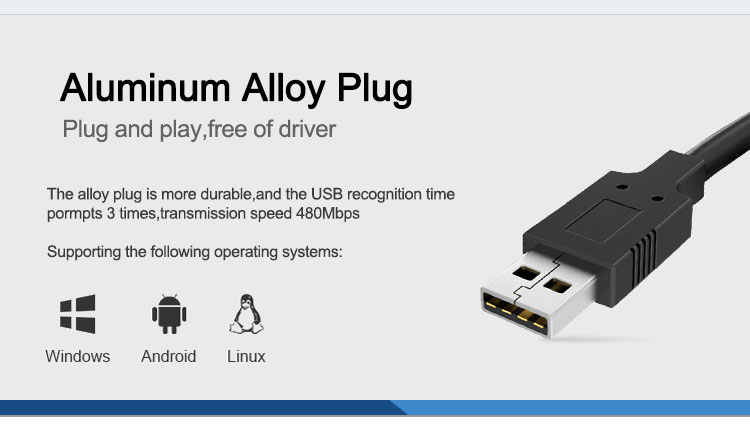

| Interface Type: | Serial port, USB; | interface: | USB 2.0 (full speed); |
| type: | Capacitive; | aspect ratio: | 16:9; |

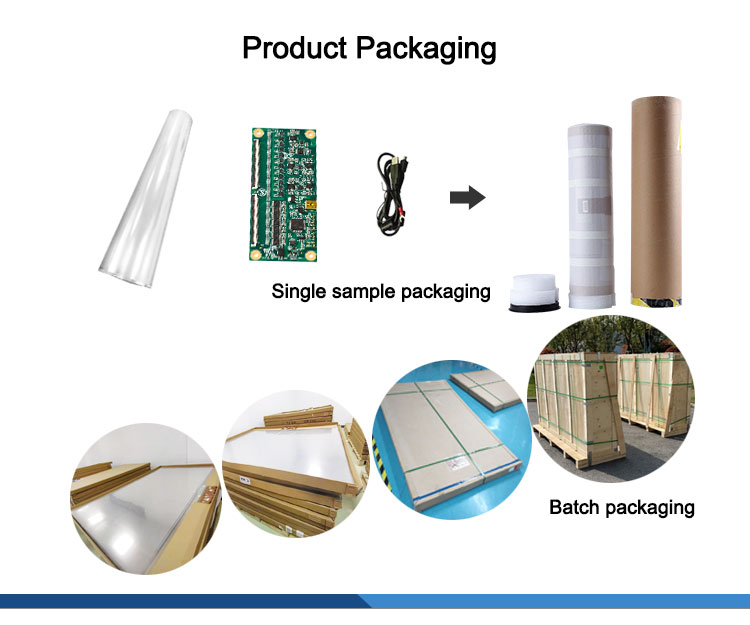

| size: | custom made; | Packaging Details: | cylinder.Includes 1 Touch Film, 1 Touch Film Controller, 1 Touch Film USB Cable. |
| Gross weight per piece: | 3.000 kg; | Contact point: | 50 (max); |
| product status: | stock, new; | application: | Industrial applications, retail, education; |
| Sales unit: | single item; |
Specification
product name | Capacitive touch film | series | XTA |

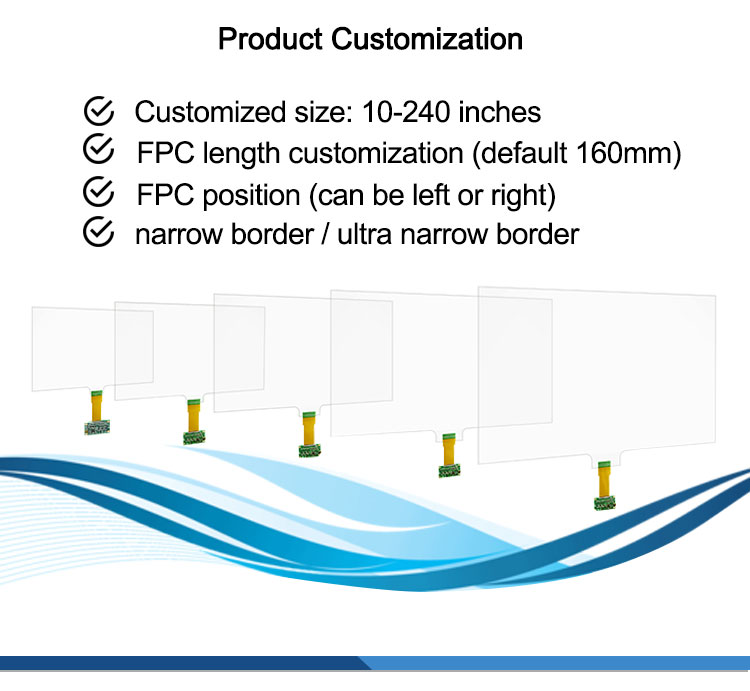

Regular size | 32"-55"(XTA series) | other sizes | 7"-30" |
Contact point | 20 points | deviation | ≤0.5mm |
sensor | Transmit: 56 (max) Receive: 96 (max) | Scan speed | 8ms |
FPS | 120 | energy consumption | 0.5W |
power supply | USB(5V+/-5%DC) | calibration | software calibration |
thickness | ≤200um | Transmittance | >93% |
Voltage | 5V | send | USB2.0 |
Transmission distance | ≤50m (plus USB signal amplifier) | safe distance | 2mm |
Operating temperature | -20℃~70℃ | Storage temperature | -20℃~80℃ |

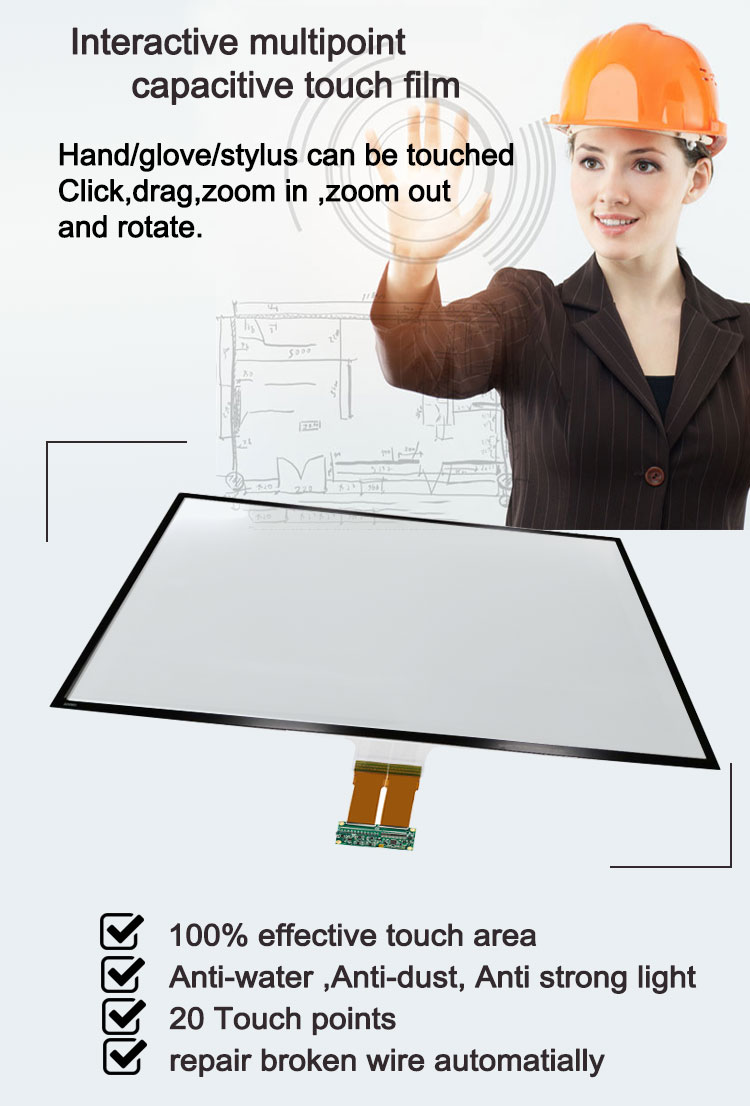

touch gesture | Click/drag/zoom/rotate | Warranty | 1 year |
Ambient brightness | All-angle anti-glare lighting | packing list | Touch Film*1 Controller*1 USB Cable*1 |
support system | win/android/linux | Certificate | ROHS CE FCC ISO |
Related Products
FAQ
ask:What operating system does it support?
A: WIN7 /WIN8 /Linux (Ubuntu 2.04.4, kernel version: 3.11.0-15-generic) / Android4.2 and above (kernel version>A20->3.3.0, RK3188->3.0.36)
ask:What is your MOQ?
Answer: 1
ask:Which certificates have passed?
Answer: CE, FCC, RoHs.
ask:How to place an order?
A: Online or offline
ask:How long is your warranty period?
A: 1 year touch foil warranty.
ask:What is your delivery time?
A: Sample order: within 5 days, mass production 5-12 working days after confirmation
payment terms:
TT, Western Union, PAYPAL, Trade Assurance.
1) Sample order: 100% T/T, Western Union, Paypal.
2) Bulk order more than 10,000 yuan: 30% T/T in advance.70% Balanced before delivery.
