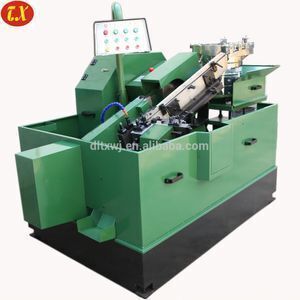

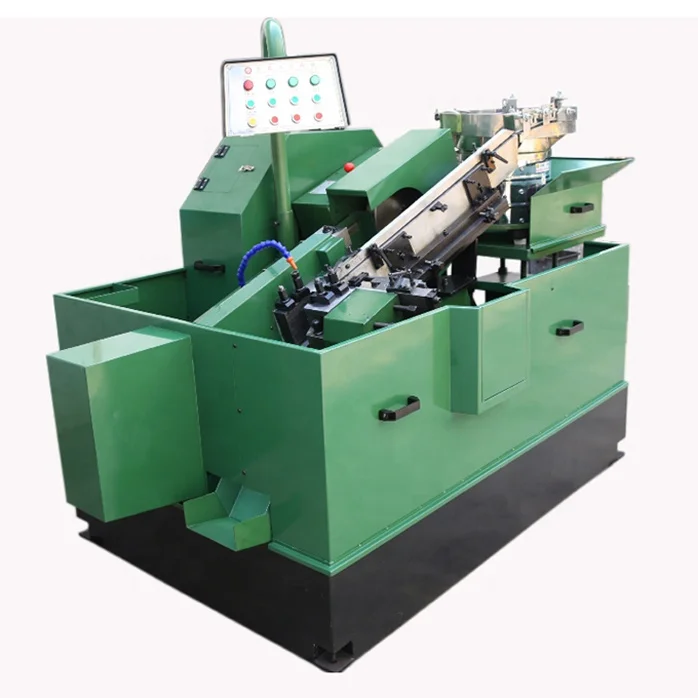

TX-8R Automatic High Speed Wood Screw Bolt Thread Rolling Making Machine

TX-8R Automatic High Speed Wood Screw Bolt Thread Rolling Making Machine

Please kindly see our machines' end products picture as below:

Main functions of thread rolling machine:

Main functions of thread rolling machine make products happen plastic deformation by pressing of two dynamic and statics screw plates, and form the thread needed, it can accurately grinding various standard thread tooth of national standard,ISO,DIN, JIS, ANSI, BS,GB,etc., the machine has the advantages of rapid speed and good stability, the minute capacity can be up to about 300pcs, it is advanced thread machine with higher speed in the current market, which is suitable for mass production in the large scope thread factory. It can also design, coil abnormal screw and abnormal hardware and metal products especially according to the customers’ requirements.

Basic manufacturing process of screw:

Coarse line→ Wire →Heading →Thread rolling → Heat treatment → Plating (color) → Packing

Brief introduction of processes and machines needed:

1) Pull the coarse line to the line patch needed. ( wire drawing machine)

2) Adjust, produce, and form the head of screw on the heading machine.(screw heading machine)

3) Grind tooth on the coil thread rolling machine, and form the screw completely (Thread rolling machine)

4) Treat the semi-finished screw in the heat treatment according to the standard ( heat treatment

furnace)

5) According to the requirements, process plating etc. ( Zinc plating machine )

6) Packing and out of factory.

 1.Apply and features:

(1) Newest style,perfect design.High speed and stability fitting your goal of efficiency.Made from high quality material, undergoing high abrasion-resistance and low deformation heat treatment process, the machine is
endurable with long time preciseness.
(2) Our machines adopt the automatic feeding system with vibrator mode.
(3) The materials transportation bridges are made under 40Cr hign frequency quenching condition,so the mateirals could go smoothly and the bridges are abrasion resistant.
(4) The slider of our machines are made of tin bronze alloys imported from Japan,and the sideboard are made of high abrasion-resistant spring steel from Taiwan,so it can be high abrasion-resistant,without any drag force,not generating any heat.
(5) The bearing of our machines are imported from Japan's NSK,and springs are imported from Japan's Daido,the lubrication equipments are imported from Taiwan.
(6) The interface of all parts are scraped as per the traditional handwork technology,the space between each position are less than 0.02mm.
(7) Our machines are designed for precise machining of all types of screw thread conforming to the Metric System, Japanese System, American System, etc.

2.Technical Specifications:

3.The photoes for other kinds of screws machines:

4.Our factory and office show:

A.Factory and office:

B.Our Workshop Show:

C.Machines' accessories show:

5.Customers Scene:

(1)In 2011,we manufacture 300 sets screws cold heading machine & thread rolling machines for Asia's biggest screw manufacturer Gem-Year Group,and we make over 600 sets cold heading machine, thread rolling machines for it's branch company--Gem-Duo company,we have been highly praised by our clients due to the good quality and perfect performance of our machines.

(2) In 2012,we manufacturer 50 sets screws cold heading machine and thread rolling machines for United Industry Company and United Mechanical Corp in Vietnam,and in July 2012,our vice General Manager Mr.Deng visited these two companies to train their employees how to debug the screw machines.

6.Customers Visit:

7.Service:

We can design and make all kinds of screw heading machines and thread rolling machines for our clients,based on the business concept of "quality first,customers supreme",we'll provide the best products and service to you.

we've passed the ISO9001:2008 Quality Management System Certification.

Please kindly see our machines shipped abroad as below:

Company Profile

Taishin Screw Machinery Manufacturing Co., Ltd. was founded in 1998, locate in Dalang Town,Dongguan City,Guangdong Province,China.The plant area of our company is 4000 square meters.We were formerly known as Taiwan Taixin Machinery Company, which was founded in 1980 in Taiwan Changhua County,we have been manufacturing screw cold heading machine,thread rolling machine,multi-station cold forging machines and other screw machines for over 30 years,which makes us accumulated rich experience in screw machinery manufacturing industry.

We have formed a professional design and development team, and our company is equipped with many CNC lathe machine,grinder machine, milling machine,boring machine,drilling machine and other high-precision processing equipments,and also,the key components of all mahcinery products are directly imported from Taiwan, Japan, Germany and other country,which ensure our machinery products reach the requirements of high precision, high hardness, high wear resistance standards.

Our machines have been well sold to India, Indonesia, Vietnam, Uzbekistan, Sweden, Croatia and other countries, especially for the machinery sold to the biggest screw manufacturer in Asia----GEM YEAR Group,ANJI FAST,and to the famous clients "UNITED INDUSTRY CO., LTD" in Vietnam,which have been highly praised by our clients due to the good quality and perfect performance of our machines. We have received zero complaint and zero return on our machinery products within 12 years.

In recent years, our company is more committed to continuously improve technological level and product quality, keep good quality reputation and fast delivery service, to make our products be in favor of many clients.Meanwhile,we can design and manufacture all kinds of screws machinery according to customers' specific requirements,and provide debugging,spare parts supply and professional repair service. If there is any defect on our machinery products after selling,we'll visist the domestic coustomers and repair the machine for free,and provide the repairing solution to the foreign customers in 24 hours,or even go abroad to repair the machines for foreign customers.

Our company insist on the business principle of "quality first,customer supreme",provide customers with the most first-class product,we sincerely welcome all friends to contact us for more information and look forward to working with you!

If you have any enquires or questions on the  TX-6R Automatic High Speed Wood Screw Bolt Thread Rolling Making Machine  ,please don't hesitate to contact with me as below:
