Lightweight Abrasive Rail Saw Rail Cutting Machine

Product details
Product Description

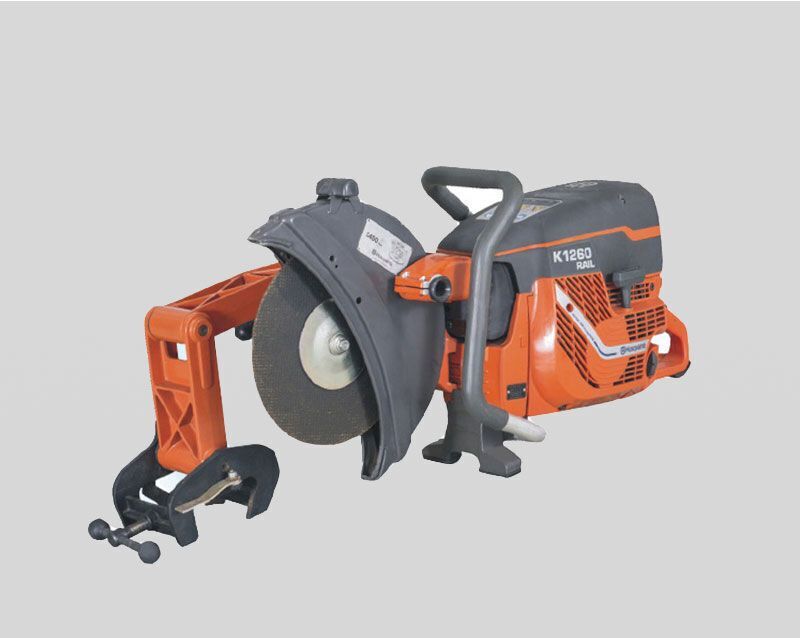

Lightweight Abrasive Rail Saw

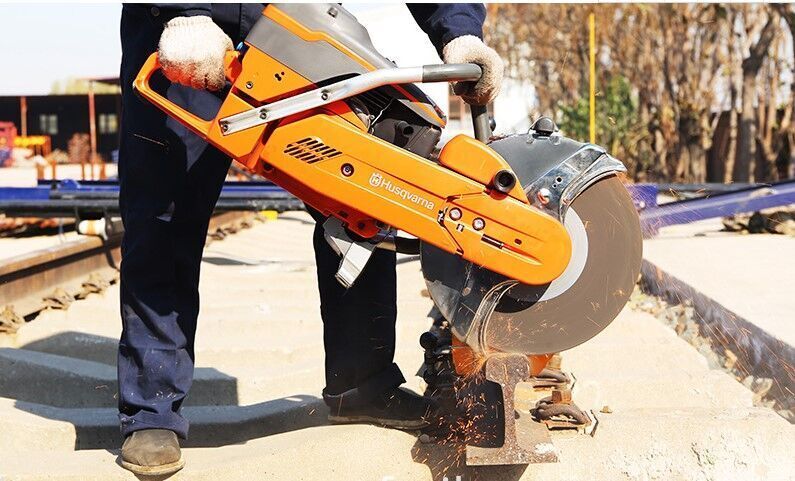

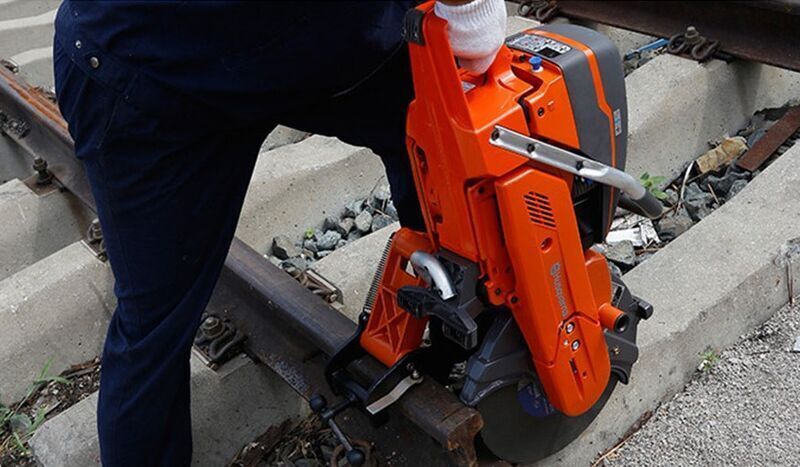

NQG-5.8 lightweight abrasive rail saw is a railway maintenance tool. It not only cuts rails with high speed and high quality, but also has low wear cutting discs. It is locked by rail clamps. It has a simple structure, light weight, safety and easy movement. It is suitable for maintenance, repair of broken rails of seamless tracks, and cutting of steel rails in long rail welding factories.

BENEFITS
● Adopt K 1270Rail single-cylinder air-cooled two-stroke petrol engine
imported from Sweden
● Rail cutting mechanism and rail clamp swing arm can be separated or assembled in short time
● The petrol engine drives the cutting disc to rotate through the belt to
complete the rail cutting function
● It can cut rails of 43~75kg/m rail on or under the line
● Anti-loose and fall off device is provided on the rail hook


Specification

Item

Value

Dimensions (L x W x H) (mm)

800*560*500mm

Place of Origin

China

Engine

Single-cylinder, air-cooling

two-stroke petrol engine

(imported from Sweden K1270R) 5.8 kW

Cutting disc form

Double- layer reinforced wire mesh

Linear speed of cutting disc

100 m/s

Rated RPM

≥4500 r/min

Specification of cutting disc

φ355*φ25.4 *3.8mm

Cutting accuracy

Vertical deviation of notch and rail≤0.30mm

Deviation of bidirectional cutting interfaces≤0. 35mm

Weight

50kg

Cutting time

≤110s( cut off 60kg/m rail)

Fuel tank capacity

1.25 L

Dimensions

850*480*500mm




Packing & Delivery

wooden box, export standard
