Automatic Remote Control Hydraulic Railway Tamping Machine for Sale

Product details
Product Description

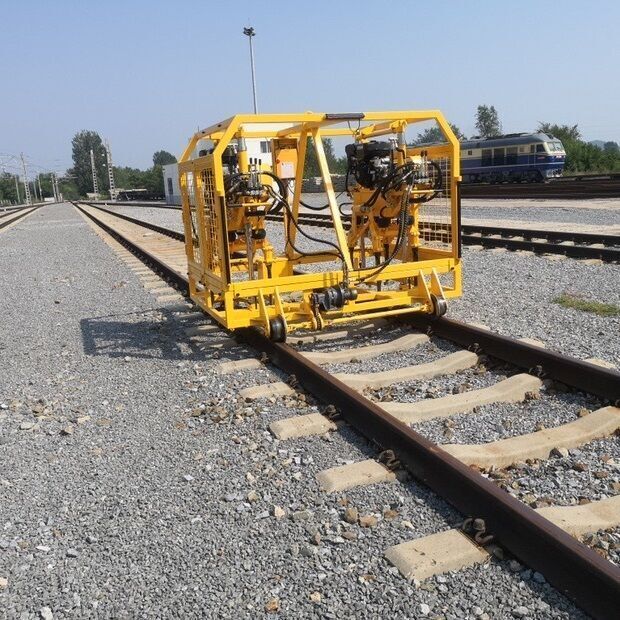

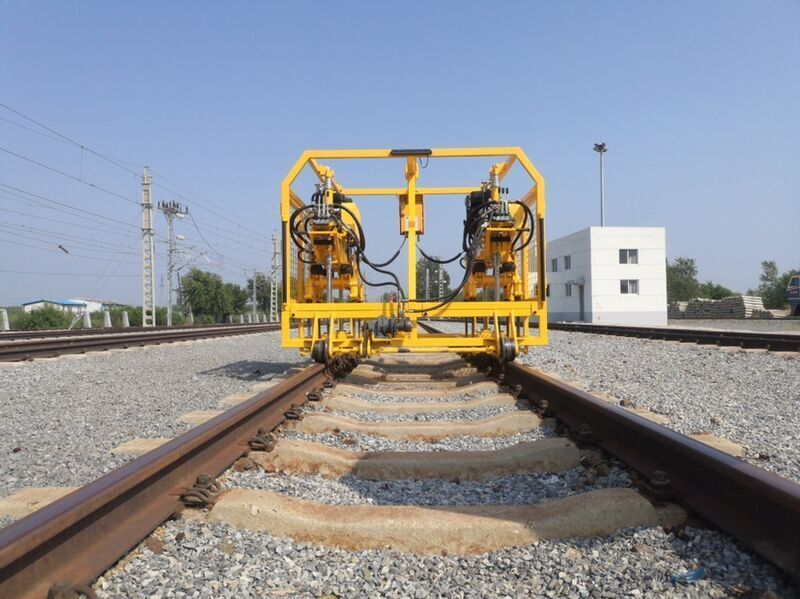

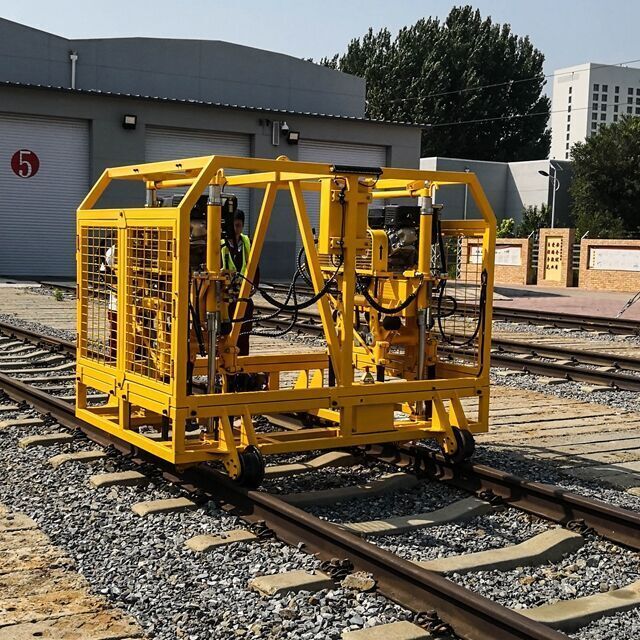

YD-22III Smart rail tamping machine
YD-22III Smart rail tamping machine unit is a renewal product developed by our factory with new material and new technology. It has collected the tamping experience of users at home and abroad. It can do tamping works not only on the ballasted track of concrete sleeper type II and III in China, but also on various kindsof concrete sleepers and steel sleepers in foreign countries.This machine is suitable for tamping operation of different types of rails and concrete sleeper line after large and medium repair and sieving operations, and also suitable for tamping operation of ballast on newly built track bed. The equipment has superior performance, reasonable structure, safety and reliability, and high working efficiency. It fully meets the needs of railway ballast tamping operation

Benefits:
1. The chassis of tamping unit is equipped with walking device and electronic control device (electric engine and remote control will control each function of the equipment). The equipment realizes the characteristics of automatic walking ad remote control, which greatly improves the working efficiency and comfort, it also can reduce the labor intensity. 2. Protective nets are installed on both sides of tamping unit to ensure the safety of workers and the stability of tamping operation. And also, it has the front and rear lights which can provide better lighting when working at night.

Specification
Model

YD-22III

Material

Stainless steel

Dimensions (L x W x H) (mm)

2580*2150*1950mm

Modie

YD-22III

Working Pressure

4-Stroke Gasoline engine; Power 10.5kW*2; R.P.M: 3600 r / min

Hydraulic system working pressure

5 ~ 6MPa

Vibrating frequency

66.7Hz

Vibrating force

22kN

Max clamping force

6.5kN*2

Insert depth

90-110mm ( under the sleeper)

Max inserting force

16kN

Production efficiency

≥ 300 pieces / (unit. hour)

Walking frame track gauge

1435mm (adjustments can be made according to customer requirement)

Machine weight

1385kg



Packing & Delivery
Export Standard Wooden Box

Company Profile

Xiangyang Lianjie Mechanical&Electrical Co.,Ltd.



Xiangyang Lianjie Mechanical&Electrical Co.,Ltd. Established in 2013,specialized in designing and manufacturing of the geometry measurement systems for the railway,including digital track gauges,mechanical gauge,rail wear gauge,turnout measurement gauges ect. Our products are China Railway Construction Corporation Limited (CRCC) approved.The products are used by CRCC for all their rail operation. Besides, our products are also being used by major rail operators in America, Australia, Europe and the ASEAN countries.The bitterness of poor quality remains long after the sweetness of low price is forgotten. Our mission is to manufacture high quality rail measurement instruments at a competitive price with reliable services to our clients in order to help them to maintain & operate a safe railway system.
