New technology 3m3/h 5m3/h 7m3/h 9m3/h air motor dry shotcrete gunite machine for mine

Supplier: Zhengzhou Gaode Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Jessica Liu
Price: $4000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Output:	1~9m3/h;	Max. Conveying Distance:	200m;
UNIQUE SELLING POINT:	High operating efficiency;	Weight:	720 kg;
Suitable Mix Ratio(Cement/Sand):	1:3~5;	Warranty of core components:	1 Year;
Max Aggregate Size:	15mm;	Warranty:	1 Year;
Application:	Spraying Concrete;	Video outgoing-inspection:	Provided;
Place of Origin:	Henan, China;	Applicable Industries:	Construction works ;
Voltage:	air motor driven;	Certification:	ISO, CE;
Product name:	air motor dry shotcrete gunite machine;	Color:	Customised;
Power:	air motor driven;	Drive mode:	Air Motor Driven;
Condition:	New;	Marketing Type:	Hot Product 2019;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Dimension(LWH):	1.350.751.2m;

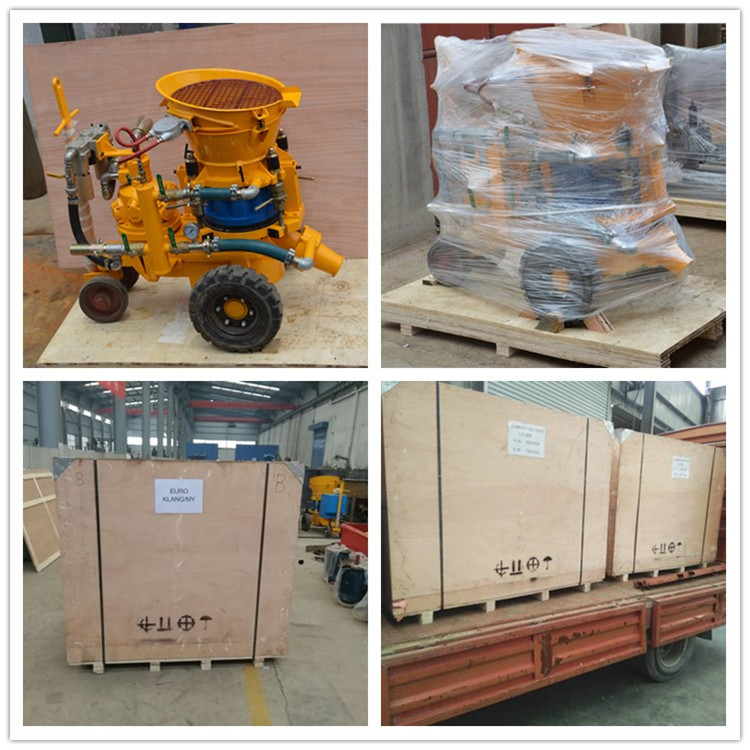

Packaging Detail:	In order to protect air motor dry shotcrete gunite machine and avoid damage during transport, our shotcrete machine adopts plywood box packaging.;	Brand Name:	GAODETEC;
Hose Inner Diameter:	50 mm;	Air Motor Type:	TMH6A;
Supply Ability:	30000 Sets per Year;	Machinery Test Report:	Provided;
Core Components:	Engine;	Port:	Tianjin, Shanghai, Qingdao;
Showroom Location:	Malaysia;	Air Consumption:	14.5-15.5m3/min;

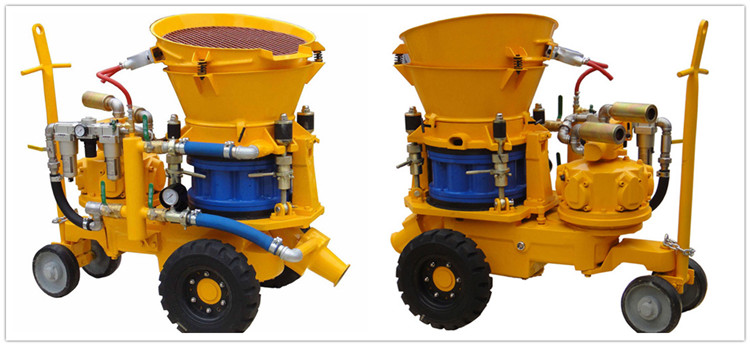

New technology 3m3/h 5m3/h 7m3/h 9m3/h air motor dry shotcrete gunite machine for mine

Product Description

Description:

Air motor dry shotcrete gunite machine is shotcrete machine for the dry spraying process. And the gunite machine is widely used by so many contractors. Air motor shotcrete machine can be used for tunneling, mining operations, hydropower projects and hillside protection etc.

Full pneumatic shotcrete machine doesn’t need any electric power supply, suitable for using in remote working site.

Parameters:

Air Motor Driven Shotcrete Machine Model	GZ-9A	GZ-5A	GZ-3A
Output Capacity	5-9m3 /h	2.5-5.5m3 /h	1.5-3m³/h
Max. Horizontal Conveying Distance	200m	200m	200m
Suitable Mix Ratio(Cement/Sand)	≤1:4~5	≤1:3~5	≤1:3~5
Max. Aggregate Size	Dia.20 mm	Φ15 mm	Φ10 mm
Conveying Hose Inner Diameter	Dia.64 mm	Φ51 mm	Φ38mm
Conveying Pressure	0.2-0.4MPa	0.2-0.4MPa	0.2-0.4MPa
Air Consumption For Conveying Material	10~12m3/min	7~8m3/min	5~6m³/min
Air Motor Air Pressure	0.5Mpa	0.5MPa	0.5MPa
Material Charging Height	1.1m	1.1m	0.9m
Rotor Speed	6-11r/min	11rpm	14r/min
Air Motor Type	TMH8A	TMH6A	TMH5.5D
Air Motor Air Consumption	10 m3 /min	7.5m3/min	6.5m³/min
Overall Dimension(length×width×height)	1.65×0.9×1.25m	1.35×0.75×1.2m	1.13×0.54×1.02m
Net Weight	900kg	720kg	430kg

Contact Us

Detailed Images

Advantages:

High quality, reliable performance, support global service
Reasonable design, convenient to move
Convenient operation and longevity of service
Four-point clamping device make it easy to adjust the press between seal plate and rotor disk so as to no air and dust leak and prolong consumption parts life
Non-adhesion going-througth rotor with new material chamber, completely eliminat bonding and blocking during operation so as to reduce clearance and maintenance period
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality

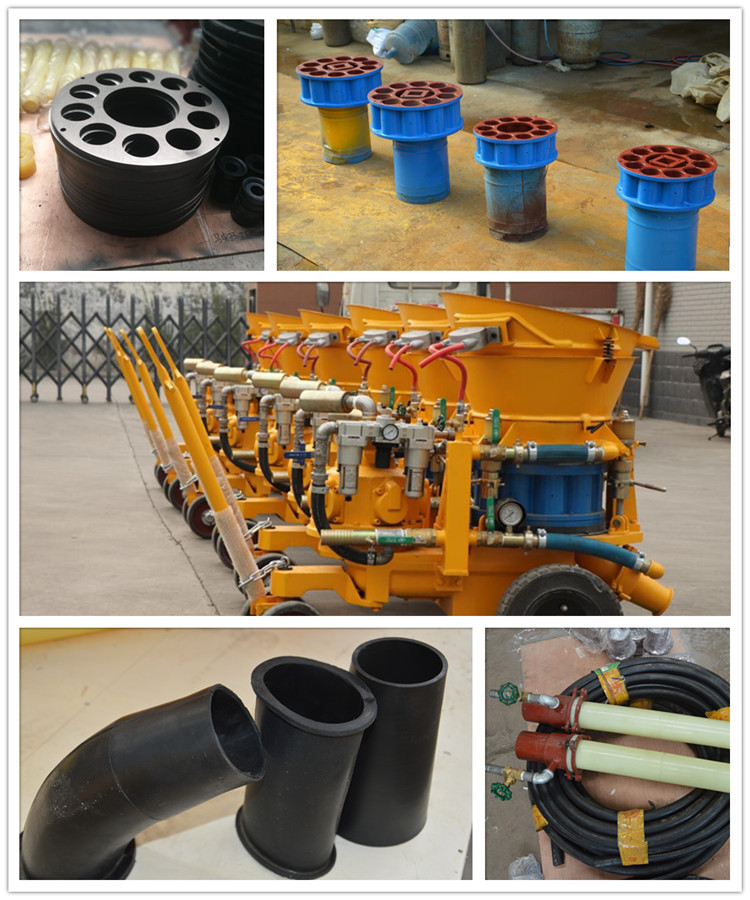

Detailed images:

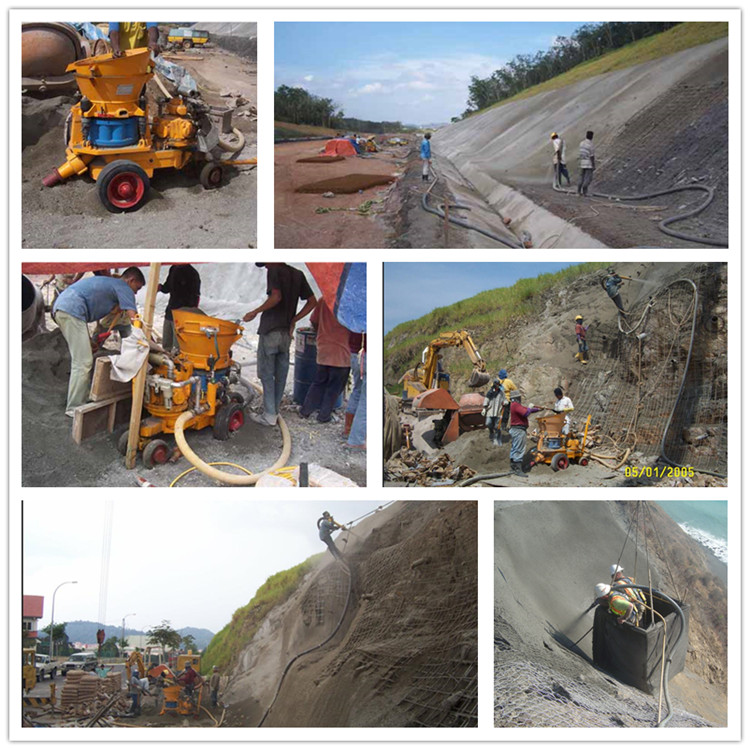

Application

Application:

The shotcrete machine is widely used in:

Dry-mix shotcrete for tunnel building, hydropower engineering, mines, underground engineering, civil engineering and slope stabilization, ect
Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface
