8m3 diesel driven high pressure water spray grass water seeder china water planter

Supplier: Zhengzhou Gaode Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Jessica Liu
Price: $33600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Core components:	engine	Dimensions (LWH):	587521502750mm
Production capacity:	100m³/h	Warranty:	1 year
Packaging Details:	Shipped in a 20" container.	weight:	4850 kg
Discharge distance:	70m	Local service location:	not any
Tank capacity:	8m³ (2114 gallons)	place of origin; place of origin:	Henan, China
Voltage:	Diesel engines	After Warranty Service:	On-site maintenance and repair services
Health status:	new	output:	100m³/h
Applicable industries:	construction project	type:	Diesel Hydraulic Planter Sprayer
Marketing Type:	New Products 2020	Core Components Warranty:	1 year
Mechanical test report:	if	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
port:	Shanghai or Qingdao or Tianjin or Ningbo or Guangzhou or any port as required	Type of engine:	Diesel engines
application:	slope greening	Showroom location:	not any
brand:	Goldett	Video external inspection:	if
strength:	103KW	Diesel Power:	103KW @ 2200rpm
After-sales service provided:	On-site installation, commissioning and training	Supply capacity:	10000 sets/year

application

Hydraulic Planter Application

GHS series hydraulic seeder and hydraulic seeder technology are increasingly used in road greening, highway slope greening, erosion control, landfill coverage, mine reclamation, dust control, landscaping and other projects, and also involve permanent Planting, spraying, slope protection, etc. , planting grass and preventing erosion.

Product Description

For sale hydraulic planter

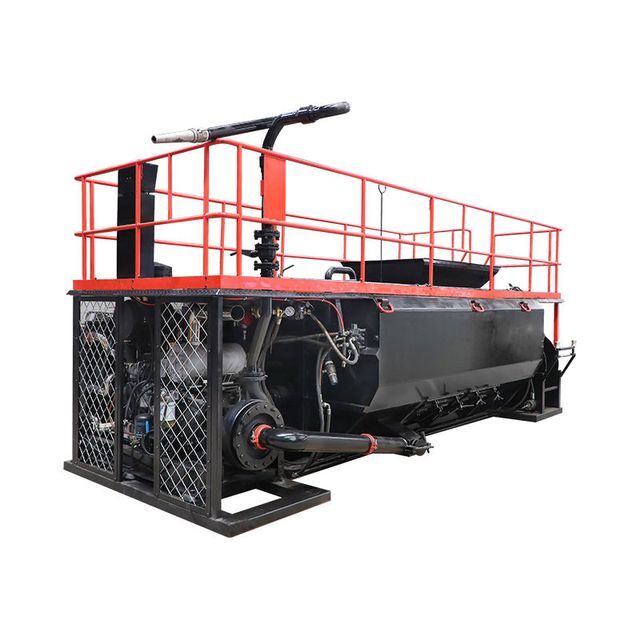

The GHS08100A Hydraulic Planter is the most powerful member of our Hydraulic Planter family, designed to meet the needs of medium-sized jobsites and demanding seeding applications. The unit has the power and output capability to handle medium-sized mine reclamation, highway and commercial sites with new conveniences, greater versatility and reduced operational efficiency.

Specification

Name	data
type	GHS08100A Water Planter
diesel powered	103KW @ 2200rpm
Effective tank capacity	8m³ (2114 gallons)
centrifugal pump	5”X2-1/2” (12.7cmx6.4cm), 100m³/h (440gpm) @10bar (145psi), 1” (2.5cm) solid clearance
pump drive	In-line coupling to air control on central clutch, pump drive operates independently of agitator
agitation	Mechanical paddle agitator and liquid recirculation
agitator drive	Reversible, variable speed hydraulic motor drive (0-130rpm)
Discharge distance	70m (230ft) from discharge tower
hose reel	Hydraulic drive, reversible, variable speed
aspect	5875x2150x2750mm
weight	4850 kg
