25kva Steel Wire pedal foot drive point welding resistance spot welder machine
- 590.00 1 - 2 sets
- 550.00 3 - 4 sets
- 500.00 >=5 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Weight: | 150KGS; | Brand Name: | HANXIN; |
| Key Selling Points: | Easy to Operate; | Video outgoing-inspection: | Provided; |
| Condition: | New; | Rated Capacity: | 16kva; |
| Input voltage: | 2PH380V; | Max. Welding Thickness: | 2+2mm; |
| Payment Terms: | T/T; | Applicable Industries: | Building Material Shops,Retail,Construction works ; |
| Control mode: | Mechanical; | Dimensions: | 400*350*1130mm; |
| Voltage: | 380V; | Rated Duty Cycle: | 20%; |
| Weight (KG): | 180 KG; | Color: | Green; |
| Machinery Test Report: | Provided; | Machine type: | Machinery Equipment; |
| Warranty: | 1 Year; | Place of Origin: | Jiangsu, China; |
| Marketing Type: | New Product 2020; | Application: | Automobile Body Repair; |
| Pressure: | Foot Operated; | Function: | 0.01-9.99seconds; |
| Packaging Detail: | standard wooden package; | Core Components: | Engine; |
| Warranty of core components: | 1 Year; | MOQ: | 1set; |
| Usage: | Spot Welding; | Material: | Matal; |
| Showroom Location: | None; |
Product Description
Title goes here.

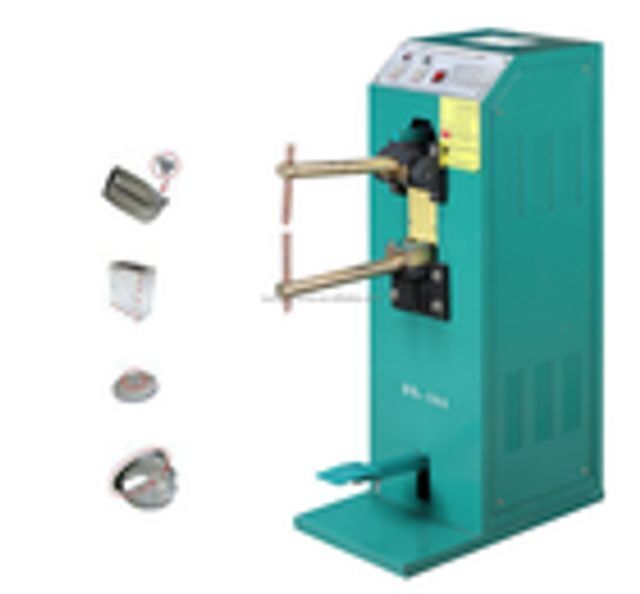

DN1 Series Foot Pedal Spot Welding Machine
Technology Parameters :
1.It made up of advanced isolated steel with low wastage and stable electricity releasing.
2.Advanced mould groups, automatic control electricity current.
3.Digital IC control of time, 20 groups time controlling system to make sure the excellent welding result.
4.Beautiful welding effect for excellent choice.
Technology Parameters :
1.It made up of advanced isolated steel with low wastage and stable electricity releasing.
2.Advanced mould groups, automatic control electricity current.
3.Digital IC control of time, 20 groups time controlling system to make sure the excellent welding result.
4.Beautiful welding effect for excellent choice.
Specification
Parameter Model No. | Rated Power (KVA) | Rated Voltage (V) | Rated Frequency (Hz) | Max Short Current(A) | Max Welding Input(KVA) | Arm Length (mm*mm) | Max Pressure(N) | Electrode Stroke (mm) |
DN-16 | 16 | 380-415 | 50/60 | 10800 | 30 | 250*380 | 1000 | 40 |
DN-25 | 25 | 380-415 | 50/60 | 13200 | 45 | 250*380 | 1000 | 40 |
DN-35 | 40 | 380-415 | 50/60 | 17800 | 50 | 250*380 | 1000 | 40 |

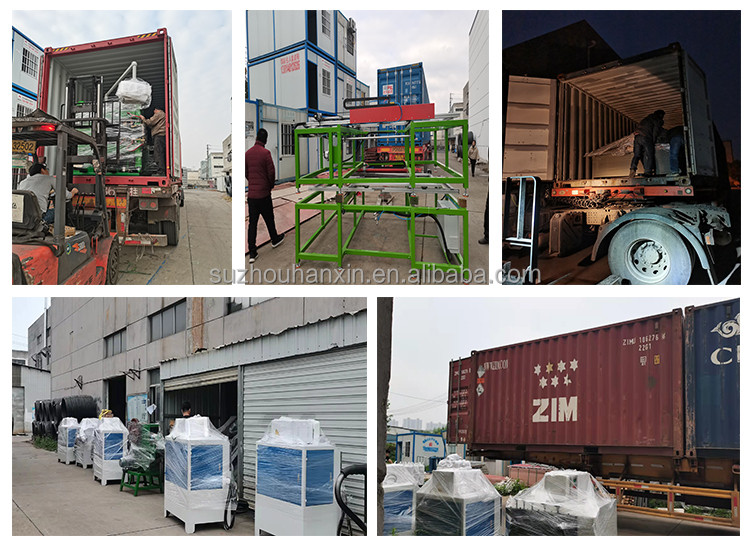

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
