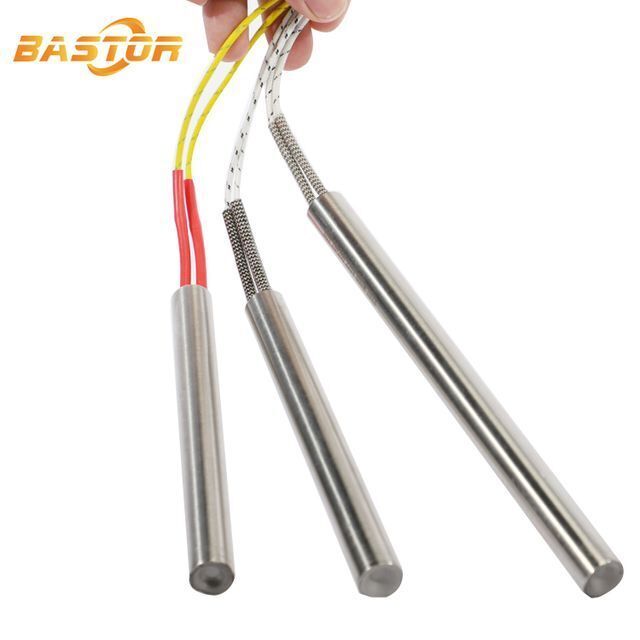

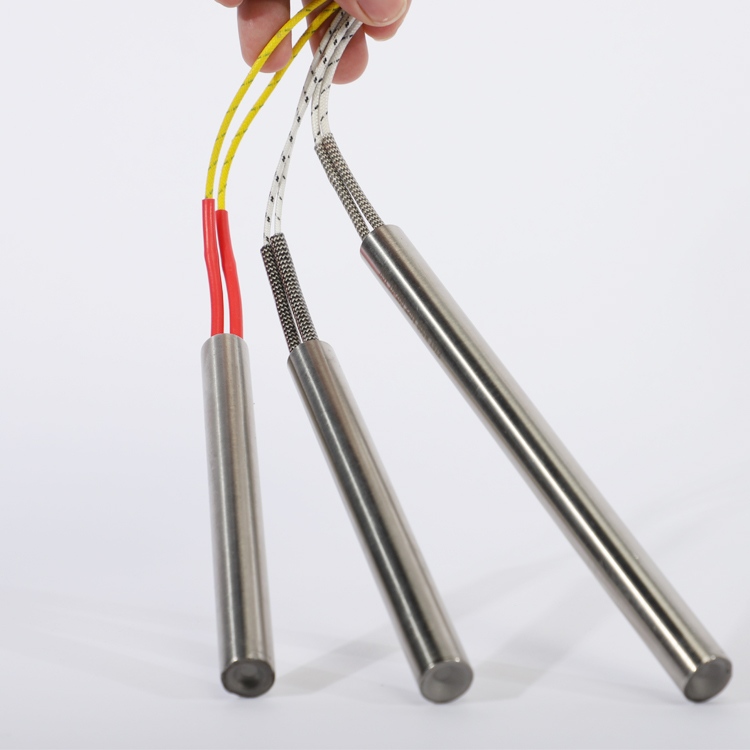

220V 1000W High temperature stainless steel industrial electric cartridge resistance heater

Product details
key word:cartridge resistance heater;Port:taizhou;
Brand Name:BEST;Supply Ability:10000 Pieces per Month;
Type:Air Heater;Dia tolerance:+0.05mm -0.1mm (+.002" -.004");
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company,electric cartridge resistance heater;
Packaging:Plastic bag , Carton box,wooden box;Material:stainless steel 304,321,316, Incoloy 800, Incoloy 840,Stainless Steel;
After-sales Service Provided:Overseas third-party support available;Machinery Test Report:Provided;
Working Temperature Range:1 - 870 ℃;Product name:220V 1000W High temperature electric cartridge resistance heater;
Weight:0.2 KG;Max temperature:870c(1600F);
Condition:New;Power Source:Electric;
Place of Origin:Jiangsu, China;Voltage:12-480V or customized;
Key Selling Points:fast heater;Dimension(L*W*H):as your requests;
Packaging Detail:packaging:Plastic bag & Carton box;Warranty of core components:1 Year;
Video outgoing-inspection:Provided;Warranty:1 Year;
Tube Diameter:8mm/10mm/12mm/14mm/16mm etc.;Application:oil, water ,other liquid etc;
Core Components:heating wire;

220V 1000W High temperature electric cartridge resistance heater

Product Description

Advantages

internal wiring: high temperature resistance, uniform heating, high thermal conductivity and difficult

                        cable fracture.

external wiring: high temperature resistance, uniform heating and high thermal conductivity.

Date sheets

Resistance heating wire NiCr 80/20 wire
Wattage Tolerance +5%, -10%
Resistance tolerance +10%, -5%
Length tolerance ±1 mm
Diameter tolerance -0.02mm
Standard Cold Zone 5-10mm
Insulation resistance (cold) ≥ 500 MΩ
Maximum leakage current (cold) ≤ 0.5 mA
Thermocouple Location type J / K / Ground wire

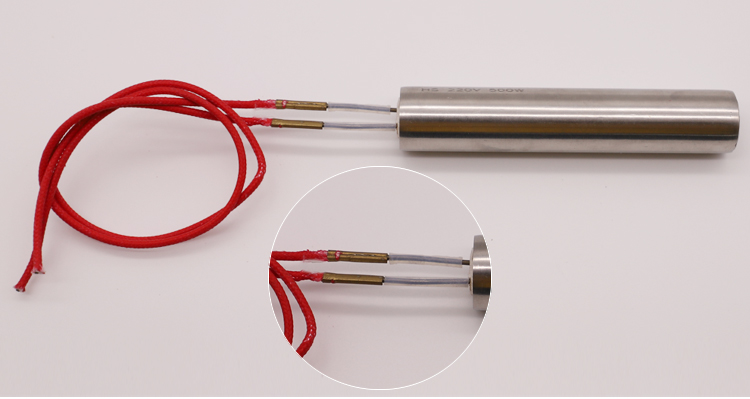

     Internal wiring port section of the heating tube does not adopt the terminal connection mode,

                    Making it havhigh temperature resistance and strong mechanical properties.

                 The port part of the heating tube adopts terminal connection mode Is resistant to

       high temperature and works in the heating medium which can not conduct wiring at both ends.

Function:
1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA; Insulation resistance> 30MΩ;
Buyer Feedback

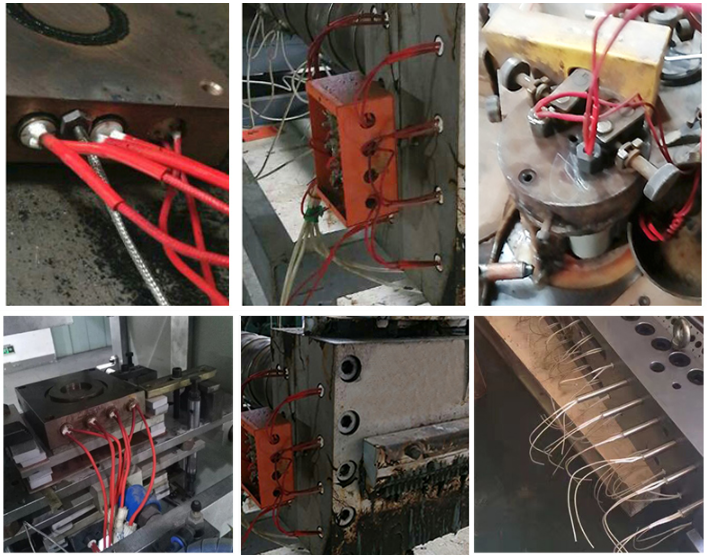

Application



Company Information

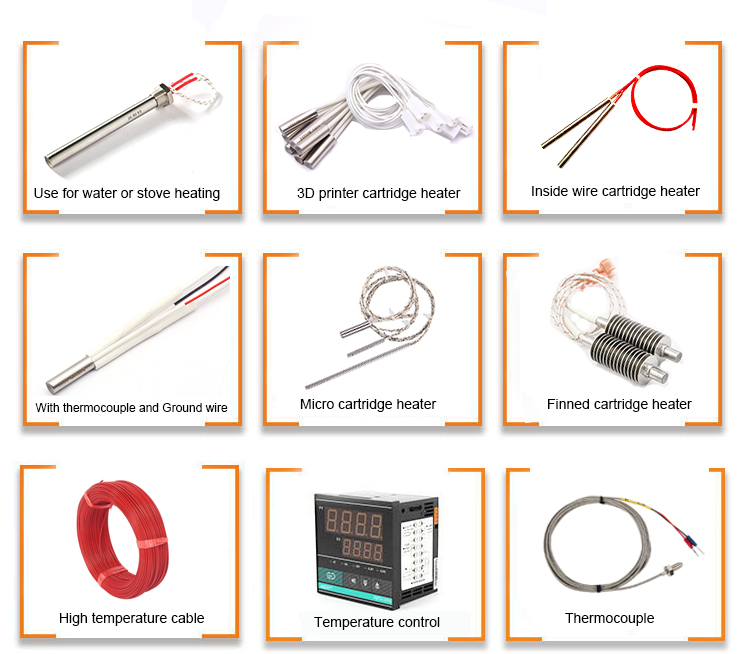

Related Products

Certifications

1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
    You may contact any one of our sales and services team: email to us as inquiry.

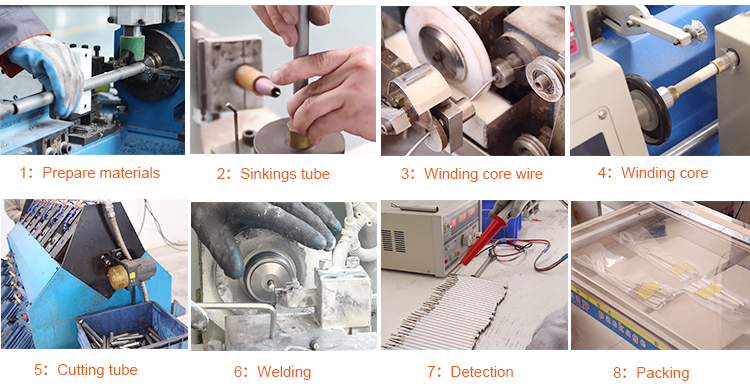

Process flow
