12v 24v 120v 220v 50w 80w 200w stainless steel high density immersion electric water heating element cartridge heater

Product details
Material:SS304, 316, 321,Stainless Steel;Selling Units:Single item;
Place of Origin:Jiangsu, China;Dia tolerance:+0.05mm -0.1mm (+.002" -.004");
Packaging:Plastic bag , Carton box,wooden box;Video outgoing-inspection:Provided;
Single package size:30X20X20 cm;Machinery Test Report:Provided;
Single gross weight:0.500 KG;Product name:electric water heaing element cartridge heater;
Power Source:Electric;Condition:New;
Application:oil, water ,other liquid etc;key word:cartridge heater/ electric heating element;
Working Temperature Range:1 - 870 ℃;Brand Name:BEST;
Warranty:1 Year;After-sales Service Provided:Overseas third-party support available;
Weight:0.2 KG;Tube Diameter:3mm-30mm or customized;
Warranty of core components:1 Year;Max temperature:870c(1600F);
Dimension(L*W*H):as your requests;Packaging Detail:packaging:Plastic bag & Carton box;
Type:Air Heater;Key Selling Points:fast heater;
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company,cartridge heater;Voltage:12-480V;
Core Components:heaitng wire;

12v 24v 120v 220v 50w 80w 200w stainless steel high density immersion electric water heating element cartridge heater

Product Description

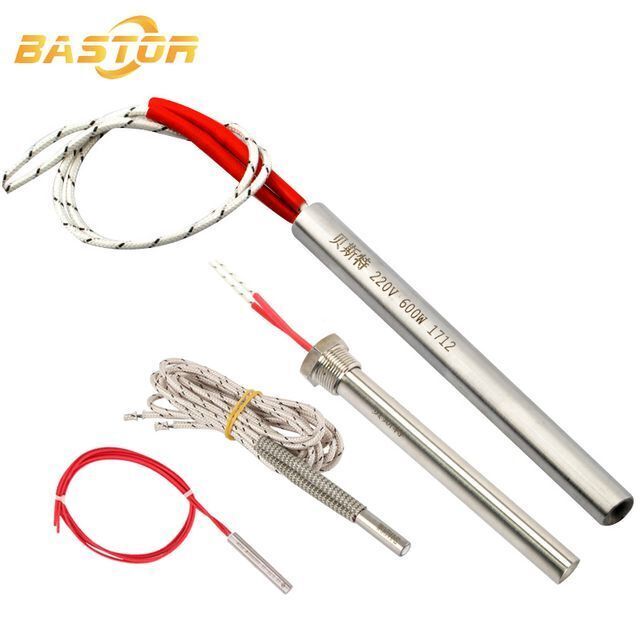

Electric heater cartridge is made of MgO powder and MgO tube, ceramic cap, resistance wire(NiCr2080),

High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form, that

is used in heating applications by way of insertion into metal blocks via a series of drilled holes.

Resistance heating wire NiCr 80/20 wire
Sheath stainless steel 304,321,316, Incoloy 800, Incoloy 840
Tube diameter 3mm-30mm
Tube length  min is 15mm max is 3meter.
Wattage Tolerance +5%, -10%
Resistance tolerance +10%, -5%
Length tolerance ±1 mm
Diameter tolerance -0.02mm
Standard Cold Zone 5-10mm
Thermocouple Location type J / k
Insulation resistance (cold) ≥ 500 MΩ
Maximum leakage current (cold) ≤ 0.5 mA

Internal wiring port section of the heating tube does not adopt the terminal connection mode,

                    Making it havhigh temperature resistance and strong mechanical properties.

            The port part of the heating tube adopts terminal connection mode Is resistant to

       high temperature and works in the heating medium which can not conduct wiring at both ends.

Advantages

internal wiring: high temperature resistance, uniform heating, high thermal conductivity and difficult

                        cable fracture.

external wiring: high temperature resistance, uniform heating and high thermal conductivity.

Function:
1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA; Insulation resistance> 30MΩ;
