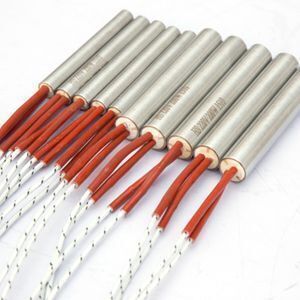

single-point electric rod 12v heating element cartridge heater

Supplier: Taizhou Best Electric Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Ms Miranda hua
Price: $1.35 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Video outgoing-inspection:	Provided;	Power Source:	Electric;
Warranty:	1 YEAR;	Machinery Test Report:	Provided;
key word:	electric rod cartridge heater;	Weight:	weight after production;
Local Service Location:	None;	Dia tolerance:	+0.05mm -0.1mm (+.002" -.004");
Showroom Location:	None;	Type:	Air Heater;
Voltage:	12-480v or customized;	Application:	oil, water ,other liquid etc;
After Warranty Service:	Video technical support,Online support;	cartridge heater:	single-point electric rod 12v heating element cartridge heater;
Tube Diameter:	3mm-30mm or customized;	Key Selling Points:	fast heater;
Max temperature:	870c(1600F);	Selling Units:	Single item;
Material:	SS304, 316, 321;	Dimension(LWH):	as your requests;
Packaging Detail:	packaging:Plastic bag & Carton box;	Core Components:	heating wire;
Marketing Type:	New Product 2020;	Packaging:	Plastic bag , Carton box,wooden box;
After-sales Service Provided:	Overseas third-party support available,Video technical support,Online support;	Single gross weight:	1.0 KG;
Condition:	New;	Place of Origin:	Jiangsu China;
Brand Name:	BEST;	Certification:	CE,ISO9001,ROHS;
Warranty of core components:	1 YEAR;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company,heater elements;
Single package size:	30X25X30 cm;	Working Temperature Range:	0 - 870 ℃;

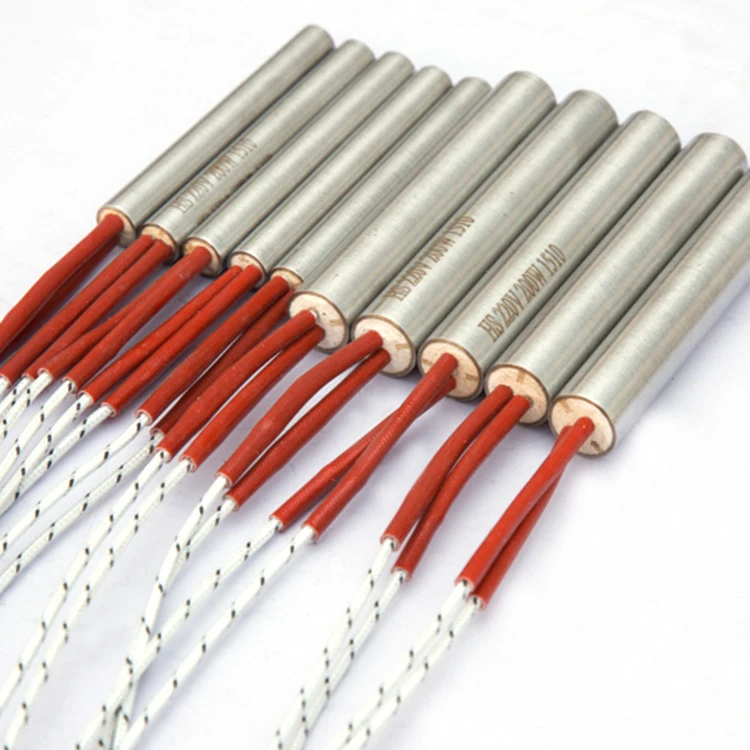

single-point electric rod 12v heating element cartridge heater

Product Description

Advantages

internal wiring: high temperature resistance, uniform heating, high thermal conductivity and difficult

cable fracture.

external wiring: high temperature resistance, uniform heating and high thermal conductivity.

Date sheets

Resistance heating wire	NiCr 80/20 wire
Wattage Tolerance	+5%, -10%
Resistance tolerance	+10%, -5%
Length tolerance	±1 mm
Diameter tolerance	-0.02mm
Standard Cold Zone	5-10mm
Insulation resistance (cold)	≥ 500 MΩ
Maximum leakage current (cold)	≤ 0.5 mA
Thermocouple Location	type J / K / Ground wire

Internal wiring port section of the heating tube does not adopt the terminal connection mode,

Making it havhigh temperature resistance and strong mechanical properties.

The port part of the heating tube adopts terminal connection mode Is resistant to

high temperature and works in the heating medium which can not conduct wiring at both ends.

Function:
1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA; Insulation resistance> 30MΩ;
