300W 20A Constant Current DC DC Step down Buck Converter with LED Driver
- 2.20 piece
| Output Type: | Single; | Brand Name: | RUIZE Technology Co., Ltd.; |
| Product name: | DC-DC buck converter step-down module; | Output current: | 20 A (max.); |
| Port: | Shenzhen,HongKong,China; | Type: | DC/DC Converters; |
| Payment Terms: | T/T,Western Union,MoneyGram; | Packaging Detail: | Customization brand logo packing; |
| Supply Ability: | 1000 Pieces per Week; | Size: | 60 x 53 x 27 mm; |
| Input voltage: | 6 V to 40 V; | Output voltage: | 1.2 V to 36 V DC; |
| Model Number: | 300W 20A; | Place of Origin: | Guangdong, China; |
| Output Current: | 20 A; |

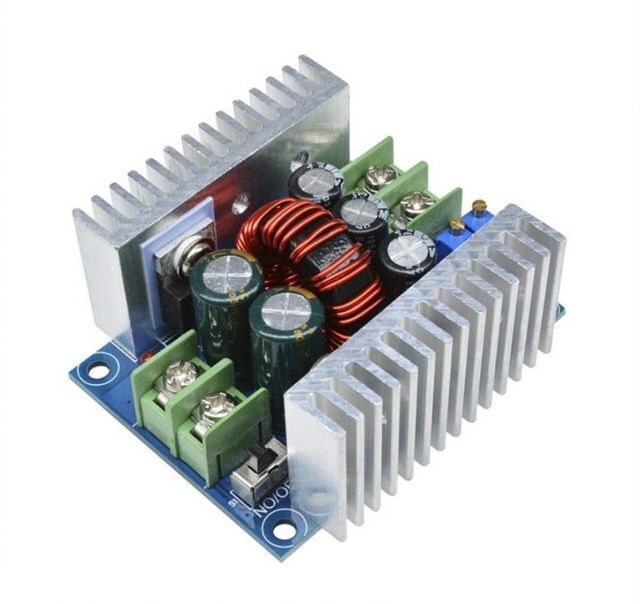

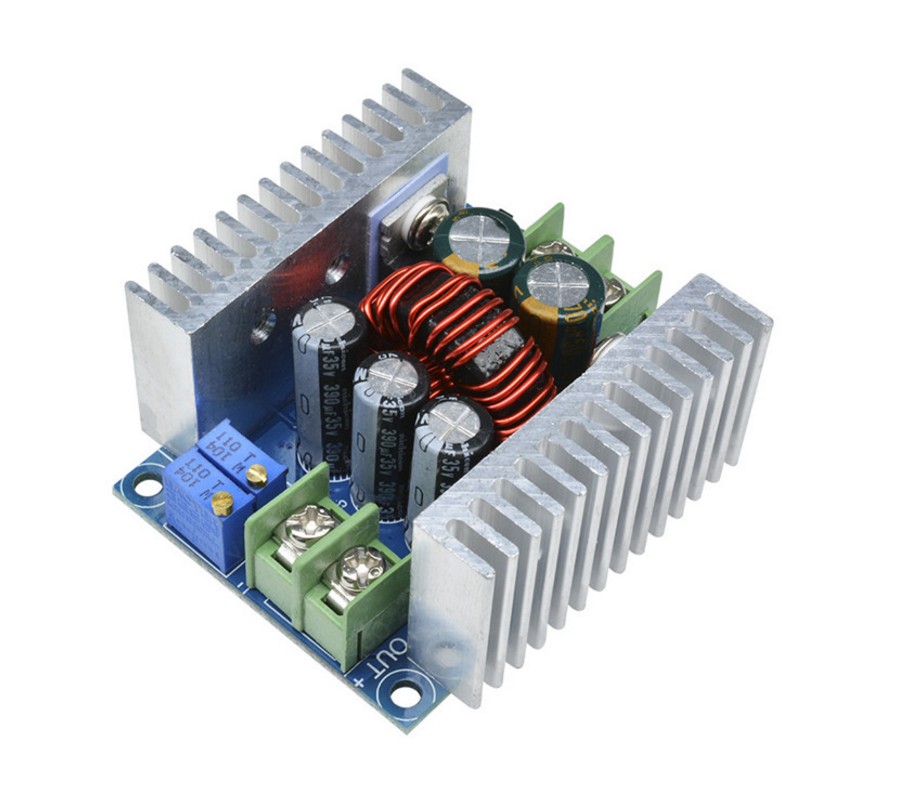

300W 20A Constant Current DC DC Step down Buck Converter with LED Driver
DC-DC buck converter step-down module
Wide input voltage range from 6-40 V, the step-down converter can accurately adjust output voltage and current.
Efficiency up to 96%, measured at 20 A, converting 24 V to 12 V
It is designed with 75 V / 80 A current dual MOS tube.
Input and output use high frequency low resistance electrolytic capacitor for stable output.
Large current 30 A screw terminals

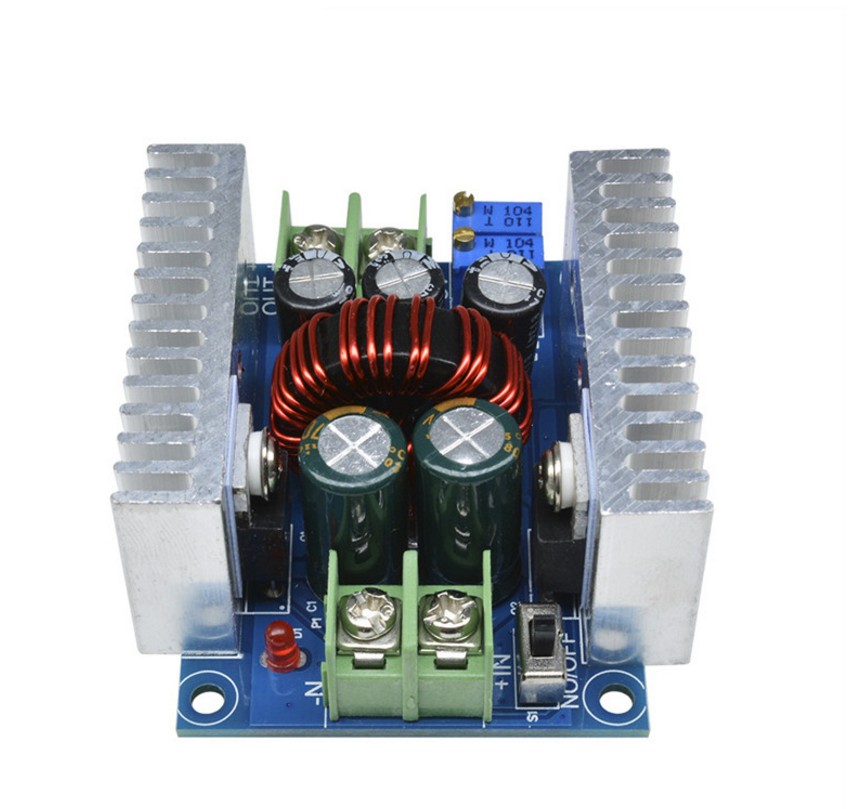

The buck module has 2 heat sinks for enhanced heat dissipation.
When large input and output voltage occurs, please decrease power and current.
| Specifications | |
| Input voltage | 6 V to 40 V DC(10 V to 40 V suggested) |
| Output voltage | 1.2 V to 36 V DC |
| Output current | 20 A (max.), 15 A (suggested) |
| Efficiency | 95%(24 V to 12 V, 20 A) |
| Output ripple | ≤ 50 mV |
| Wiring method | Terminal |
| Short circuit protection | Self-recovery |
| Size | 60 x 53 x 27 mm / 2.36 x 2.08 x 1.06 in |

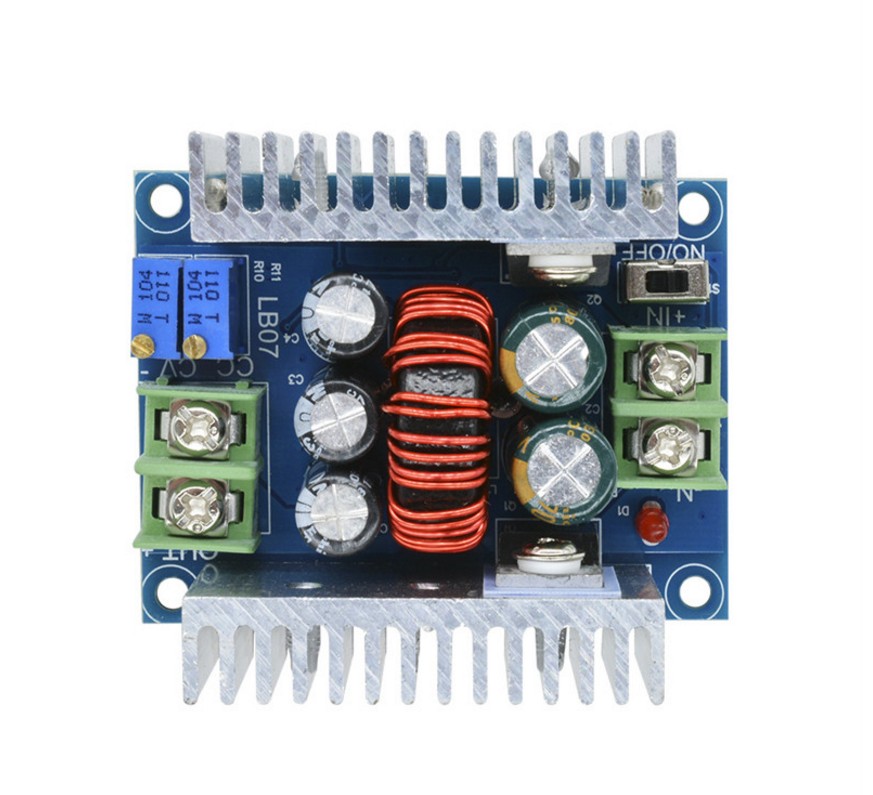

VO+: Output positive
VO-: Output negative
+IN: Input positive
-IN: Input negative
CV: Output voltage adjustment
CC: Output current adjustment
EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
When input and output is common grounded, no-load CV output constant voltage,CC output constant current
