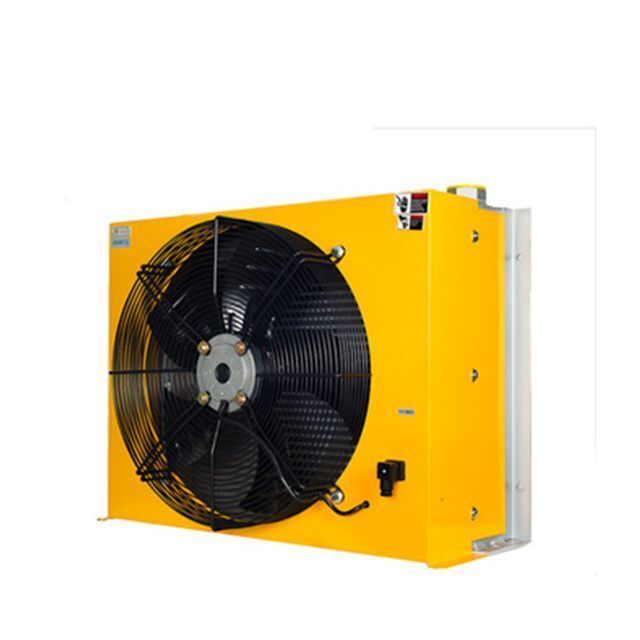

AH1680T-CA-300L/min Aluminum Oil Cooler for Hydraulic Press Machine
- 55.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Brand Name: | Eternal; | Liquid Flow Rate: | 300L/min; |
| Weight: | 55 KG; | Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Retail,Construction works ,Energy & Mining; |
| Type: | with Electric Motor; | Marketing Type: | New Product 2020; |
| Warranty of core components: | 1 Year; | Place of Origin: | Zhejiang, China; |
| Warranty: | 1 year,1 Year; | Video outgoing-inspection: | Provided; |
| Dimension(L*W*H): | 85*66*42CM; | Supply Ability: | 60000 Pieces per Year; |
| Machinery Test Report: | Provided; | Showroom Location: | None; |
| Packaging Detail: | Plywood pallet box; | Color: | Black/Yellow or Customized; |
| Fin coating: | Epoxy Coated; | Port: | Ningbo&Hangzhou&Shanghai&Guangzhou&HongKong; |
| Structure: | Plate Heat Exchanger; | Model: | AH1680T-CA-300L; |
| Exterior cooling area: | 14 ㎡; | Voltage: | AC110V/220/380V, DC12V/24V; |
| Product name: | Aluminum Hydraulic Air cooler Iil cooler fan Cooler Heat Exchanger; | Key Selling Points: | Long Service Life; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Cooling capacity: | 19KW; |
| Core Components: | Engine,Motor; | Maximum Working Pressure: | 2.0Mpa; |
| Condition: | New; | Fin material: | Auminum; |
Products Show
ETERNAL air cooler:
* The tube thickness≤0.3mm, fin thickness≤0.12mm, plate thickness≤1.5mm.
* Best quality oil coolers provided, can replace the international brand, including the COOLBIT,OLLLT
* The tube thickness≤0.3mm, fin thickness≤0.12mm, plate thickness≤1.5mm.
* Best quality oil coolers provided, can replace the international brand, including the COOLBIT,OLLLT
AW Series / AH Series
AW Series: it suitable for port of high pressure variable displacement piston, or independent loop.
AH Series: it suitable for reture loop pf hydraulic system, but must bave bypass press relief loop.Max static state pressure:
20kgf/m².
AW Series: it suitable for port of high pressure variable displacement piston, or independent loop.
AH Series: it suitable for reture loop pf hydraulic system, but must bave bypass press relief loop.Max static state pressure:
20kgf/m².
Features:
The air cooler are made of aluminum alloy material with light weight, good seismic intensity, high heat transfer efficiency. In the structure fo the channel, adopting the efficient fin, the maximum increase the heat transfer area, increase the total heat transfer coefficient.
The air cooler are made of aluminum alloy material with light weight, good seismic intensity, high heat transfer efficiency. In the structure fo the channel, adopting the efficient fin, the maximum increase the heat transfer area, increase the total heat transfer coefficient.

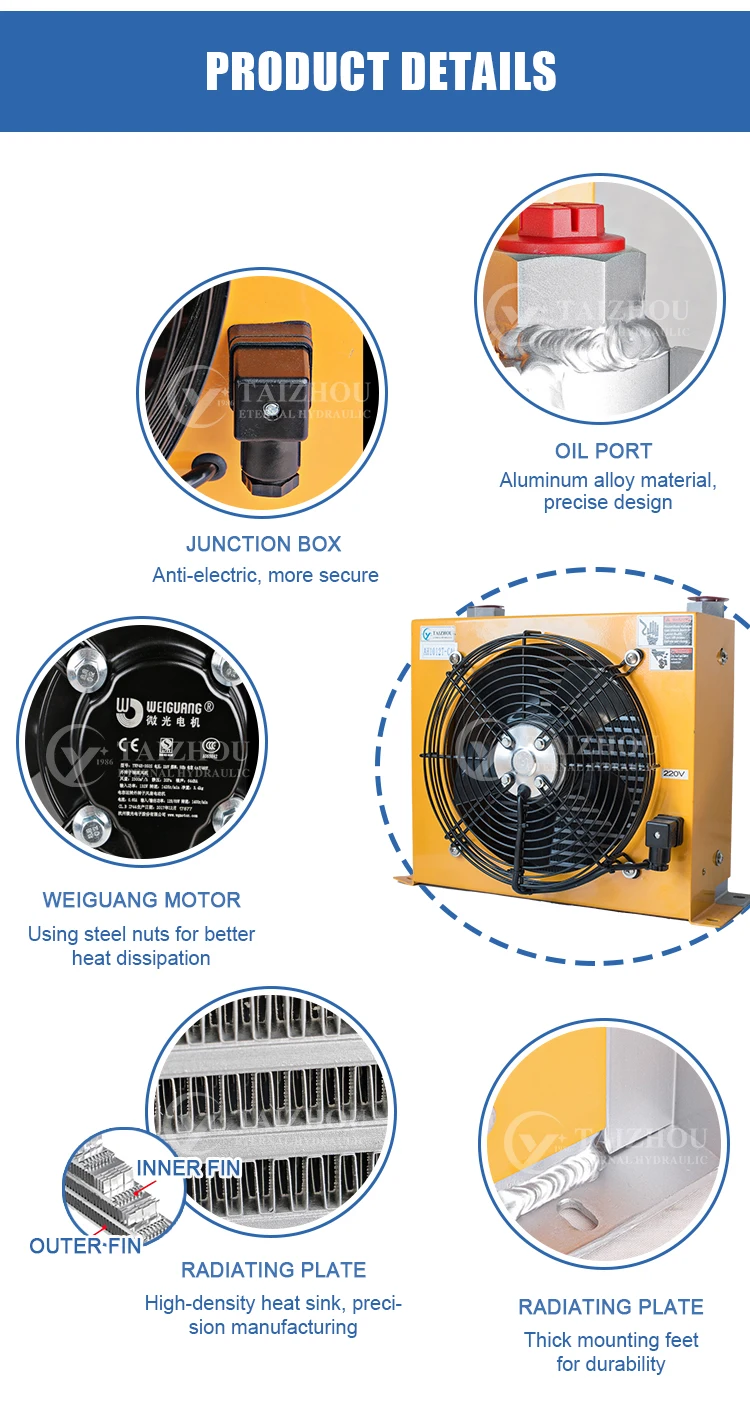

Products Description
Product packaging

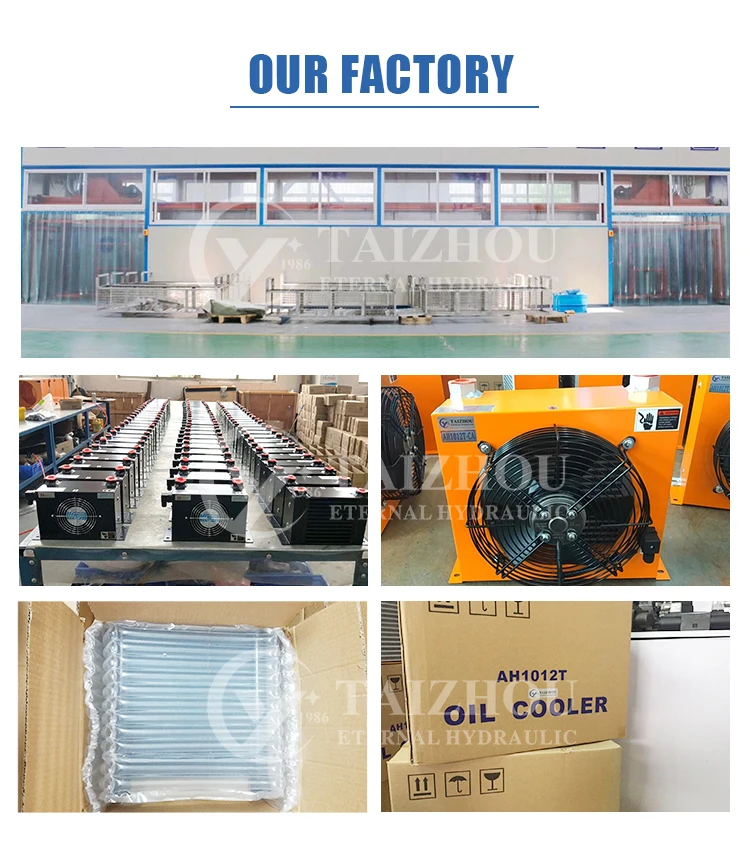

Company Profile
About Eternal Hydraulic
Eternal Hydraulic is a professional Manufacturer of Hydraulic Components with more than 10 years experiences, is also a One-Stop Mall in Hydraulic Filed, with 40+ distributors and 1000+ regular customers , 160+ Suppliers. CE/ISO/SGS/TUV certificate.
Our products including Piston Pump, Vane Pump, Gear Pump, Hydraulic Valve, Hydraulic
Motor, Electric Motor, Oil Cooler, Accumulator, Servo System, Power Pack Unit and other hydraulic accessories etc.
Motor, Electric Motor, Oil Cooler, Accumulator, Servo System, Power Pack Unit and other hydraulic accessories etc.
