Double-wall copper tube coaxial heat exchanger

Double Wall Condenser Coil

product introduction

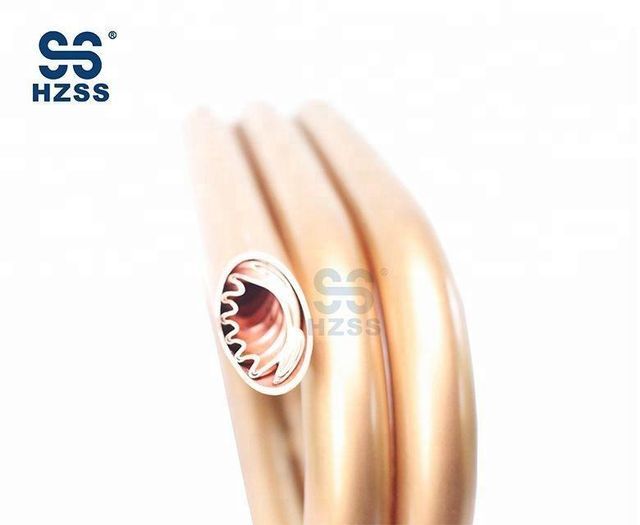

The HZSS double-wall coaxial coil has strong safety. If the inner layer of the inner tube leaks, water will flow out from the inner tube, which plays an early warning role. If the inner layer leaks, the refrigerant will leak through the interlayer and will not enter the water.

Features

1. The water flows in the inner tube, and the refrigerant flows in the gap between the inner and outer coils, which enhances the turbulence intensity and heat transfer coefficient.

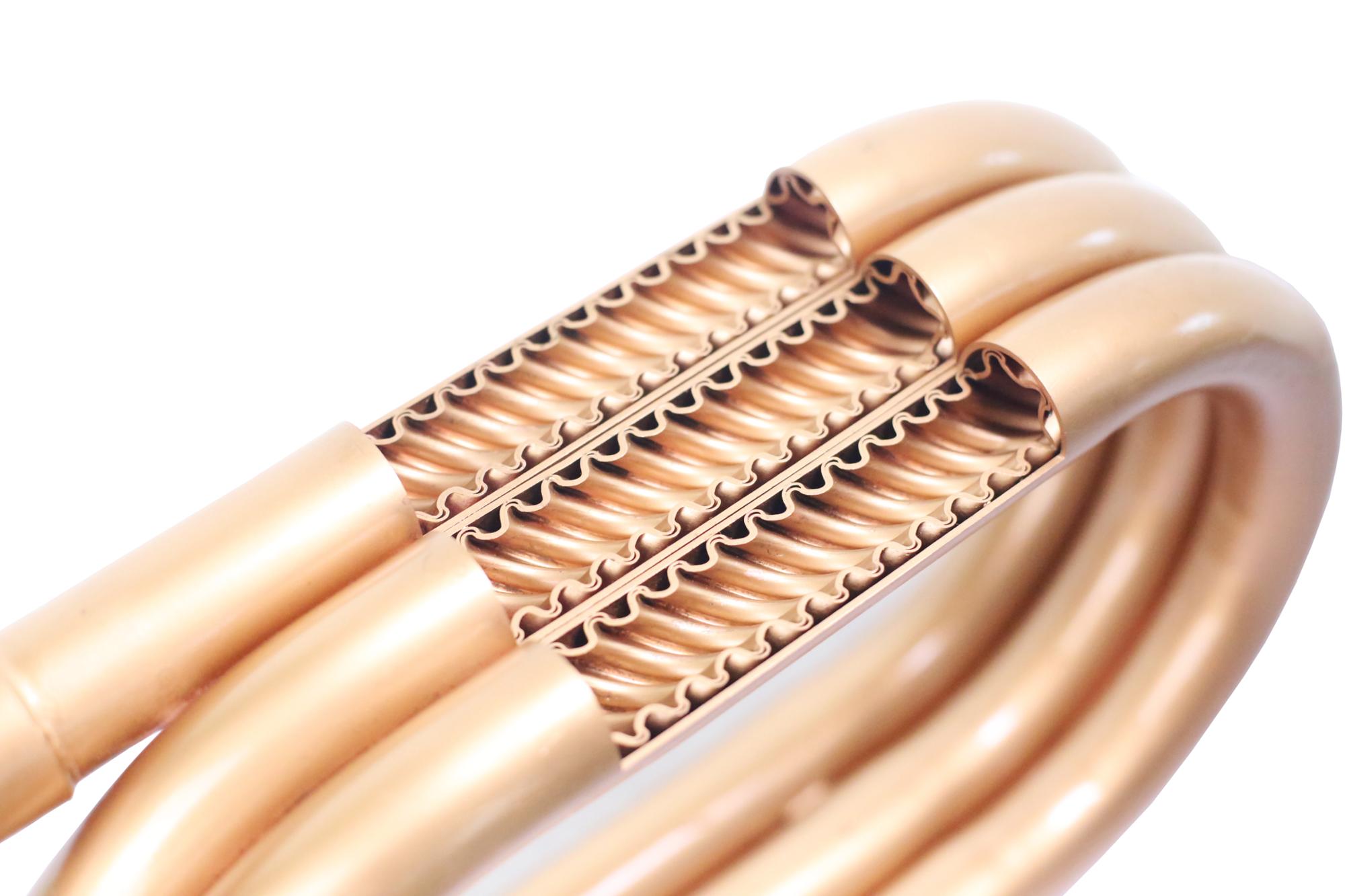

2. The spiral corrugated inner tube increases the heat transfer area and improves the efficiency.

3. High pressure resistance, less welding points, reliable work.

4. Antifreeze and self-cleaning.

5. Double-layer inner tube, more reliable and safe.

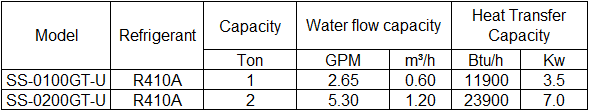

Product Specifications

Test conditions: As a condenser, the inlet water temperature is 68°F, the outlet water temperature is 95°F, and the condensing temperature is 104°F.

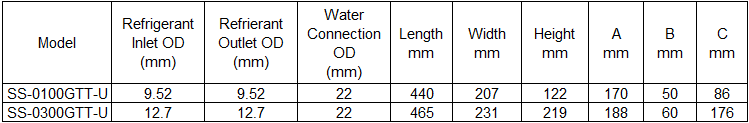

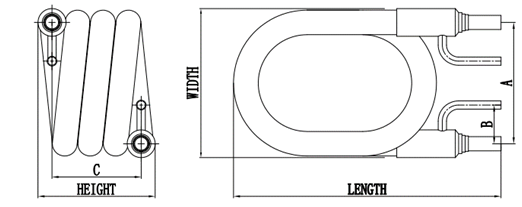

Product Size
