SGP1 SGP2 crane hydraulic pump for Tadano crane with lifting capacity from Chinese manufacturer

Supplier: Taizhou Eternal Hydraulic Machine Co., Ltd.
Region: Zhejiang, China
Contact: Mr LEO WU
Price: $50.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Dimensions (LWH):	depends on model	Shift:	other
type:	hydraulic pump	pressure:	medium voltage
Shimadzu & Kayaba+:	Shimadzu & Kayaba+	Maximum flow:	depends on model
port:	Shanghai/Ningbo	structure:	gear
brand:	Eternal Hydraulics	theory:	rotary pump
Packaging Details:	Each piece is wrapped in a plastic bag and carton and stands upright on a plywood shelf.	Certificate:	ISO9001&TUV
Material:	cast iron	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Supply capacity:	6000 pieces per month Lifting capacity 3 tons Crane hydraulic pump	Origin:	China
Showroom location:	Vietnam, Ukraine, Colombia, Canada, Pakistan, Nigeria, Philippines, Australia, Indonesia, Saudi Arabia	Warranty:	1 year, 1 year
Certification:	ISO9001, EU certification	Pump type:	gear pump
weight:	4

product display

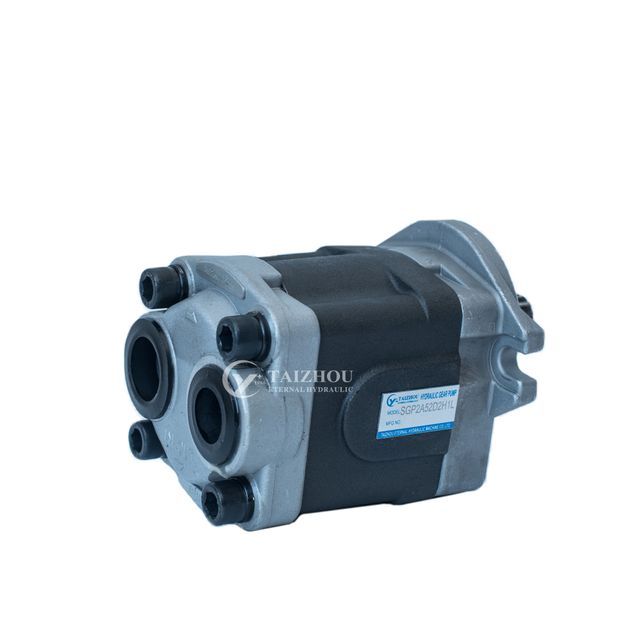

ETERNAL SGP series gear pump:

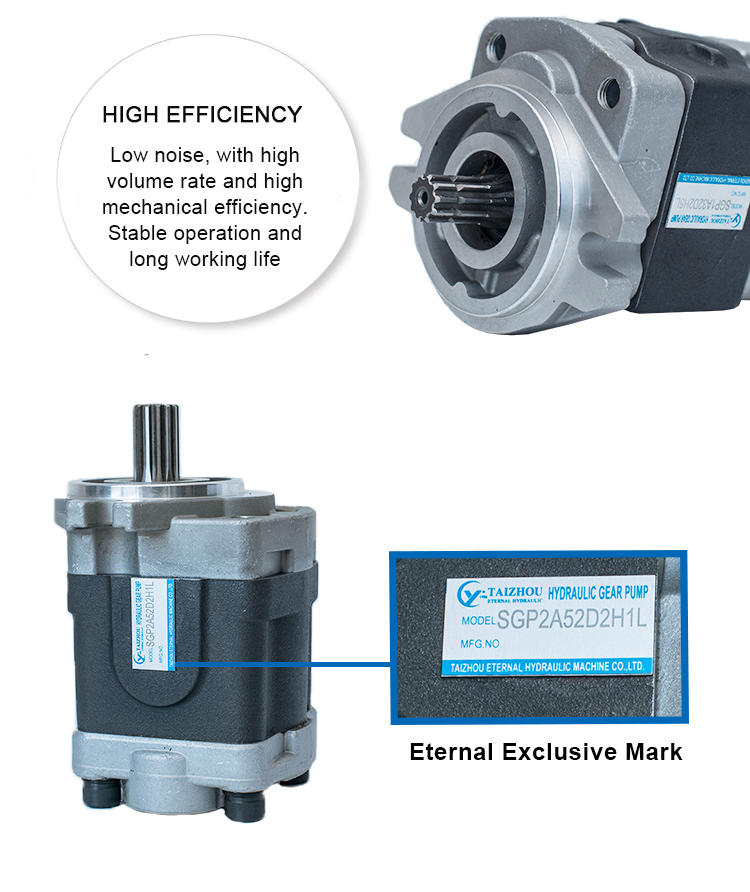

* Light weight, compact structure, aluminum alloy body, high-precision molding design
* High efficiency: precise and meticulous structural design, this series of gear pumps have high volume ratio and high mechanical efficiency
* low noise
* Stable operation and long service life

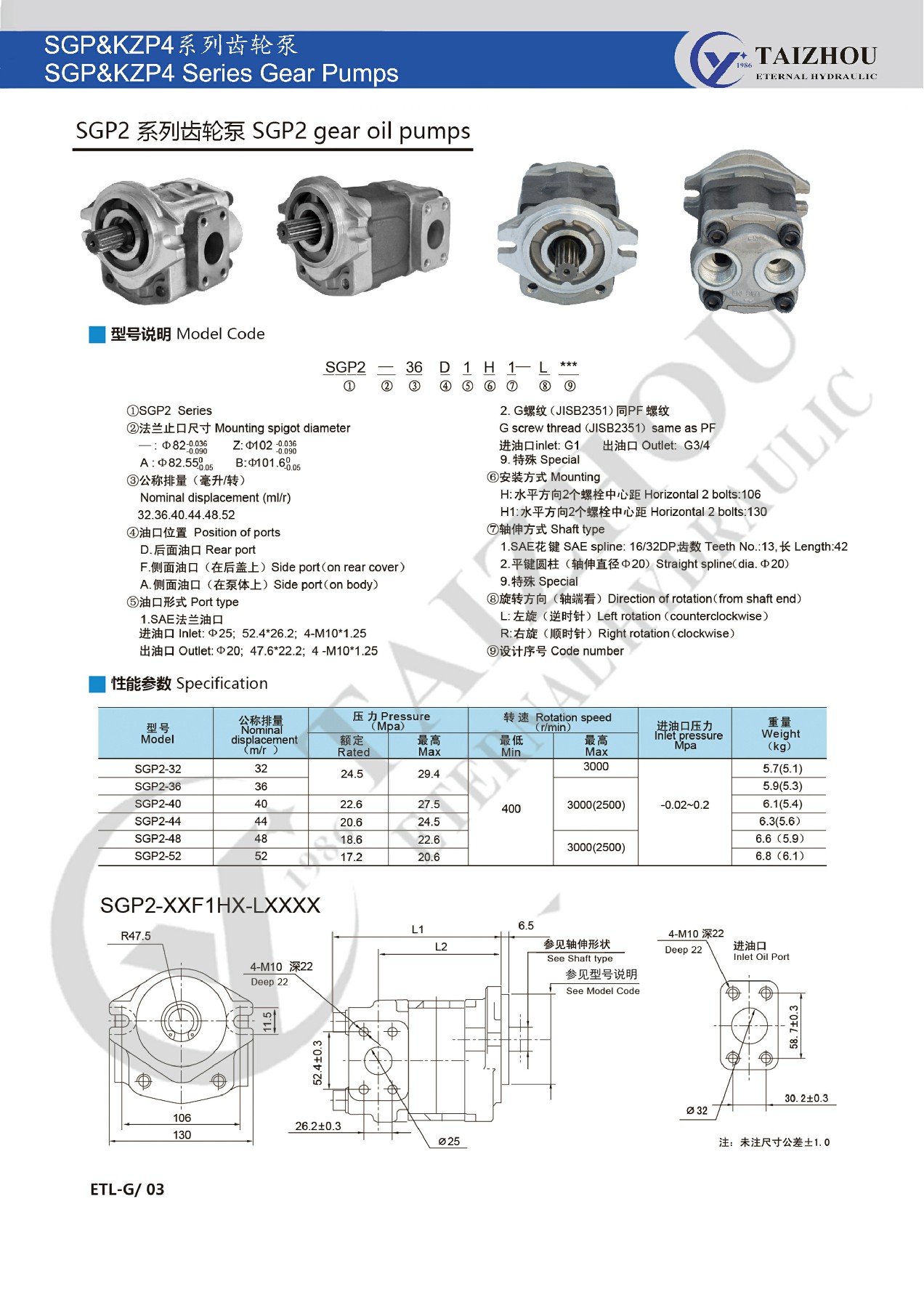

Model	Nominal displacement (m/r)	Pressure (Mpa)			Speed(r/min)			Inlet pressure (Mpa)	Weight (kg)
Model	Nominal displacement (m/r)			rated	maximum	minimum value	maximum	Inlet pressure (Mpa)	Weight (kg)
SGP2-32	32	24.5	29.4	400	3000	-0.02~0.2	5.7(5.1)
SGP2-36	36	24.5	29.4						3000(2500)		5.9(5.3)
SGP2-40	40	22.6	27.5							6.1(5.4)
SGP2-44	44	20.6	24.5							6.3(5.6)
SGP2-48	48 years old	18.6	22.6				3000(2500)		6.6 (5.9)
SGP2-52	52	17.2	20.6				3000(2500)			6.8 (6.1)

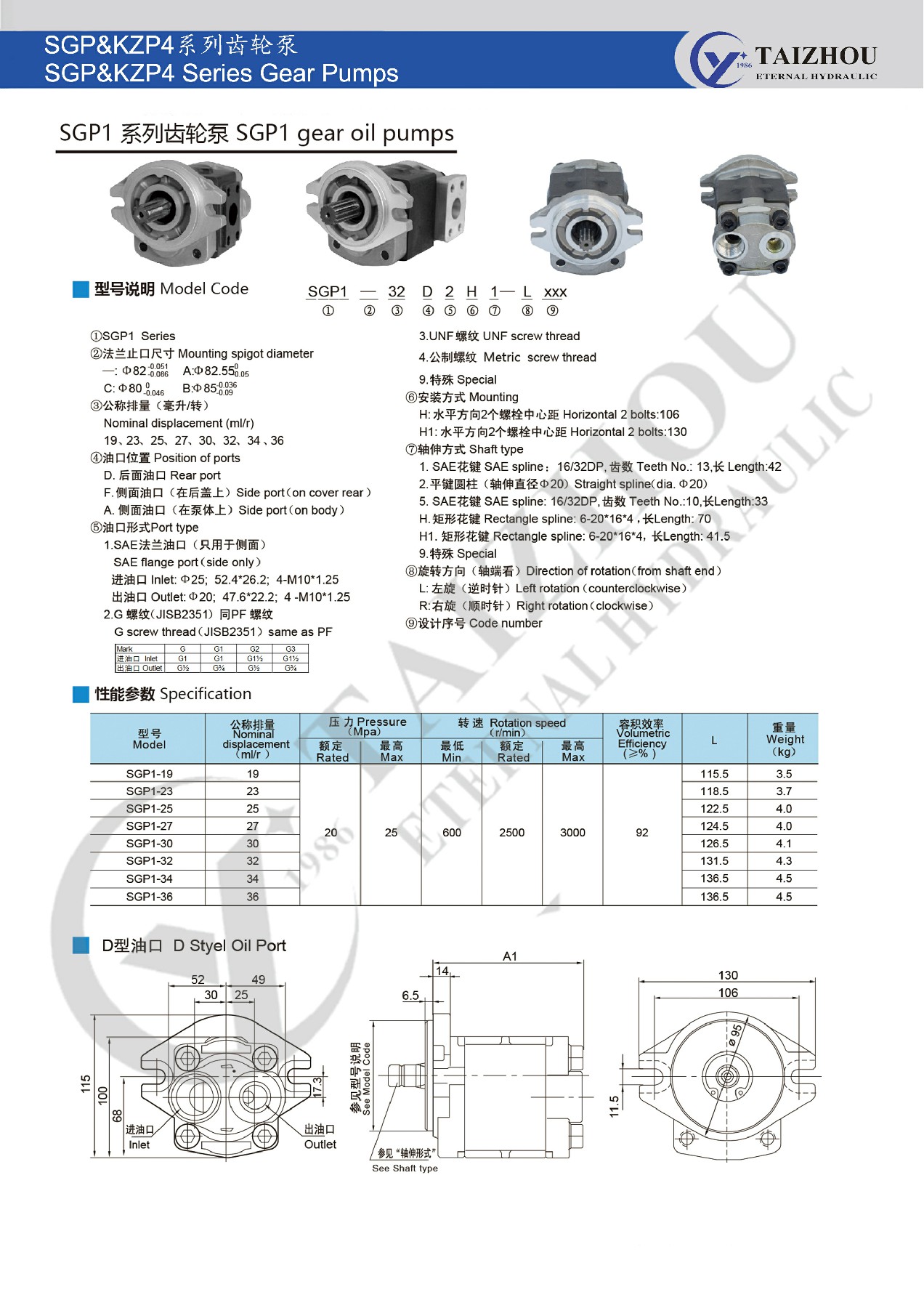

Model	Nominal displacement (m/r)	Pressure (Mpa)			Speed(r/min)					Volumetric efficiency (≥%)	Weight (kg)
Model	Nominal displacement (m/r)			rated	maximum	minimum value	rated	maximum		Volumetric efficiency (≥%)	Weight (kg)
SGP1-19	19	20	25	600	2500	3000	92	3.5
SGP1-23	twenty two											3000(2500)	3.7
SGP1-25	25							22.6	27.5				4
SGP1-27	27							20.6	24.5				4
SGP1-30	30							18.6	22.6			3000(2500)	4.1
SGP1-32	32							17.2	20.6				4.3
SGP1-34	34												4.5
SGP1-36	36												4.5
