150L Vertical Food Autoclave For Canned Food Glass Jar
- 988.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details

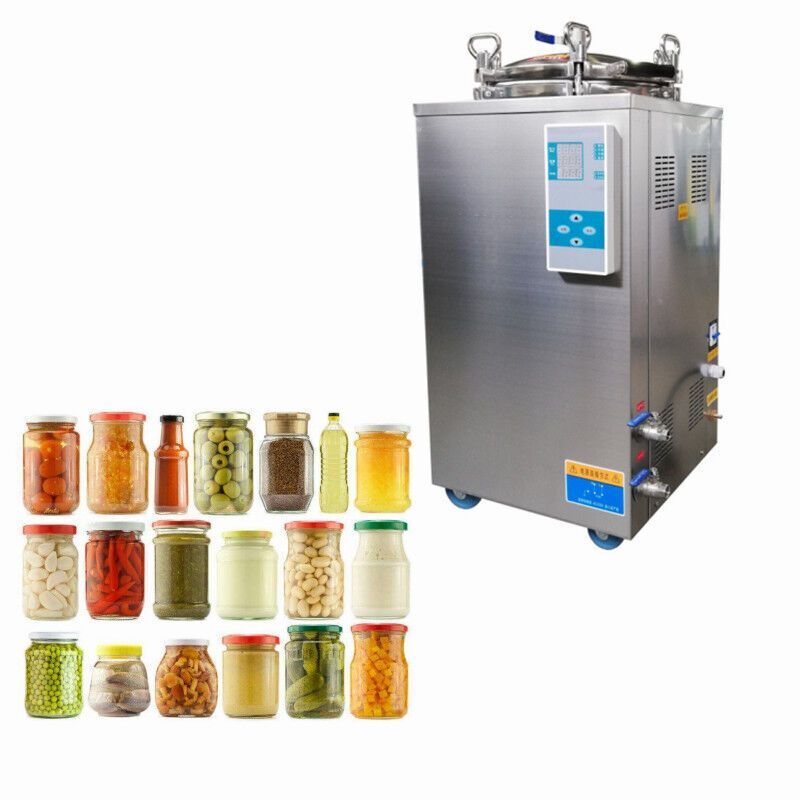

150L Vertical Food Autoclave For Canned Food Glass Jar
This food sterilizer is counter pressure vertical type autoclave sterilizer, widely used in food sterilization, suitable for all vacuum packaged food.
Main Features:
Safety performance: When the steam over-pressure is 0.25MPa, the pressure will be released automatically. When the temperature exceeds 140 ℃, the power supply will be cut off automatically, and the double safety protection, water cut-off and overheating protection, and current overload automatic cut-off safety interlock device protection will be provided.
* Equipped with timer to automatically control the sterilization time.
* This product is equipped with safety valve, with steam overpressure 0.25MPa self relief, when the temperature exceeds 140 ℃, the power supply is automatically cut off, double safety protection, water cut-off overheating protection, current overload automatic cut-off safety interlock device protection, safe and reliable use.
* This product is suitable for the disinfection and sterilization of food packaging, utensils, instruments and other articles. It is an ideal equipment for aseptic test in Food Research Institute.
* The whole machine is made of high-quality stainless steel, which has the advantages of corrosion resistance, easy maintenance and long service life.
PRODUCT SPECIFICATIONS
|
Model
|
HY-F35DC
|
HY-F50DC
|
HY-F75DC
|
HY-F100DC
|
|
Volume
|
35 liter
|
50 liter
|
75 liter
|
100 liter
|
|
Chamber
|
318*450mm
|
340*550mm
|
400*600mm
|
440*650mm
|
|
Sterilizing Baskets
|
2pcs
|
2pcs
|
2pcs
|
2pcs
|
|
Basket Size per pc
|
290*190mm/pc
|
315*250mm/pc
|
370*250mm/pc
|
410*250mm/pc
|
|
Working Pressure
|
0.22MPa
|
|||
|
Working Temperature
|
134℃
|
|||
|
Max. Working Pressure
|
0.23MPa
|
|||
|
Heat Average
|
≤±1℃
|
|||
|
Temperature Range
|
105~134℃
|
|||
|
Timer
|
0~99min or 0~99hour59min
|
|||
|
Voltage
|
AC110-220V±10V, 50-60Hz
|
|||
|
Power Supply
|
2.5KW
|
3KW
|
4.5KW
|
4.5KW
|
|
Overall Size mm
|
470*450*840
|
520*500*970
|
550*530*990
|
580*560*1060
|
|
Transportation Size mm
|
570*570*1000
|
610*610*1130
|
650*650*1150
|
680*680*1220
|
|
G.W./N.W.
|
64/46 KG
|
75/56 KG
|
90/67 KG
|
198/73 KG
|
