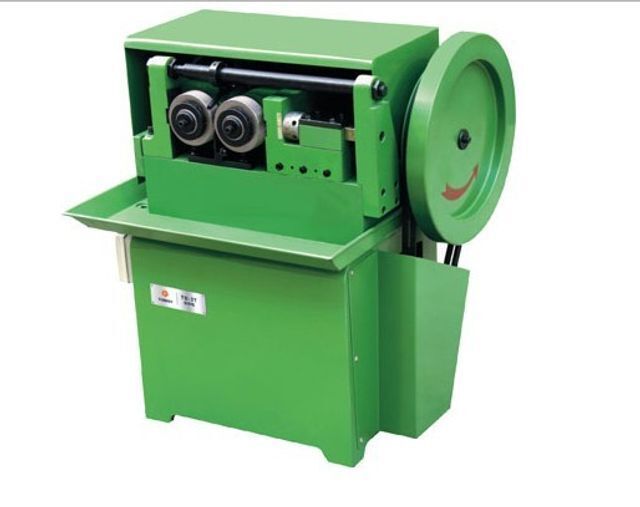

TOBEST bolt and nuts screw making machine two rollers thread rolling machine M2-M10

Click here to contact

Product details

Warranty of core components:	1 Year;	Power:	735W;
Diameter range for the threads rolled:	2-10/mm;	Warranty:	1 Year;
Video outgoing-inspection:	Provided;	Outside diameter of rolling die:	100mm;
Brand Name:	TOBEST;	Port:	Shenzhen;
Voltage:	3-380V 50HZ;	Dimension(LWH):	650600750 mm;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal;	Key Selling Points:	High-accuracy;
Inside diameter of rolling die:	50.5mm;	Condition:	New;
Range of pitch rolled:	0.4-1.5P;	Applicable Industries:	Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Retail,Construction works ,Energy & Mining;
Supply Ability:	100 Sets per Month it is for anchor bolts making machine;	Marketing Type:	Hot Product 2019;
machine motor:	1HP;	Application:	bars and solid pipe parts,bars and solid pipe parts;
After-sales Service Provided:	Engineers available to service machinery overseas;	Thickness of rolling die:	30mm;
Place of Origin:	Guangdong, China;	Showroom Location:	Turkey,Germany,Russia;
Production Capacity:	5-30 pcs/min;	Packaging Detail:	packed in wooden case;
Machinery Test Report:	Provided;	Length of thread rolled:	28mm;
Weight:	280;	Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;

TOBEST bolt and nuts screw making machine two rollers thread rolling machine M2-M10

Features:

1.Suitable for various shaft-type hardware for different industries.

2.Adopt eccentric-type tool-forward mode for extrusion process.

3.Internal or external placement for oil tank available, so the space can be saved.

4.Each rolling die is matched with proper center plate so that the machine can be adjusted easily.

5.ISO 9001-2008, CE

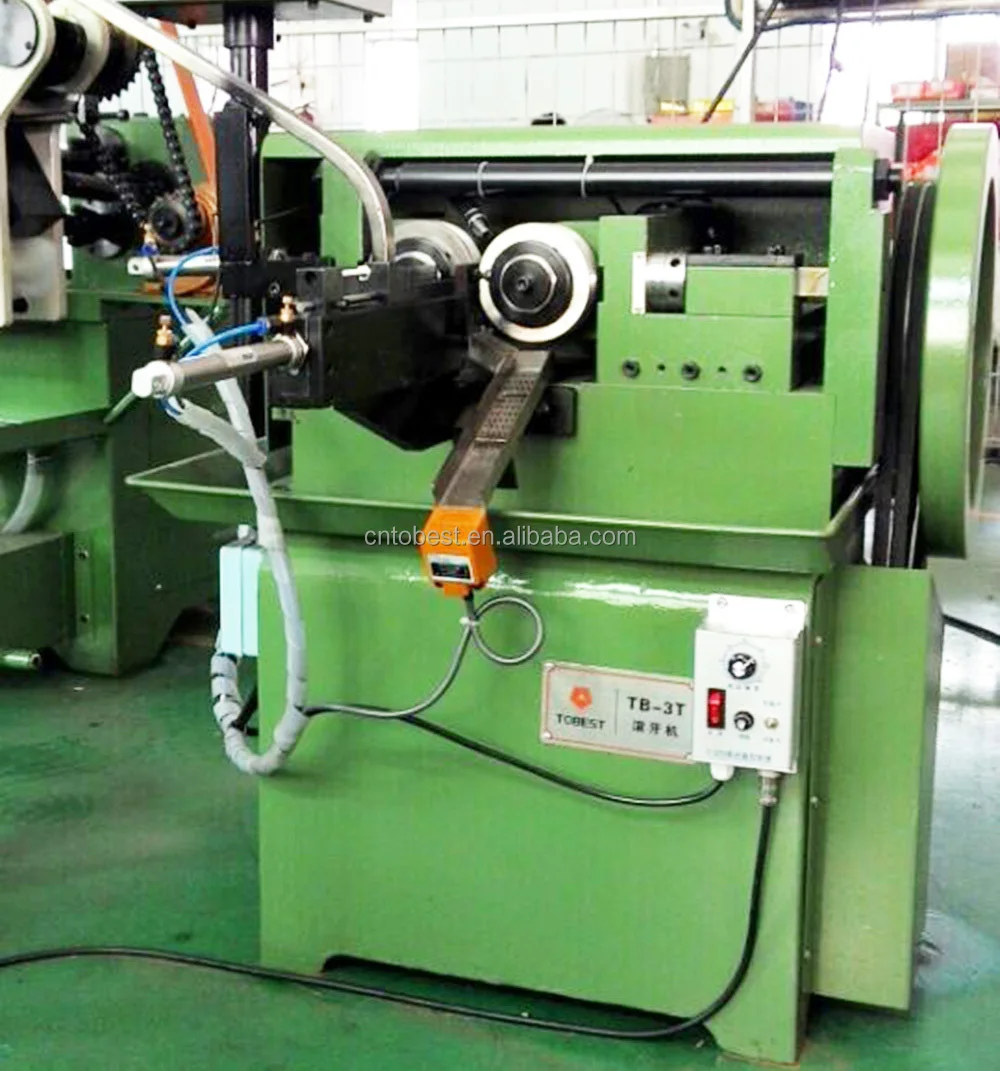

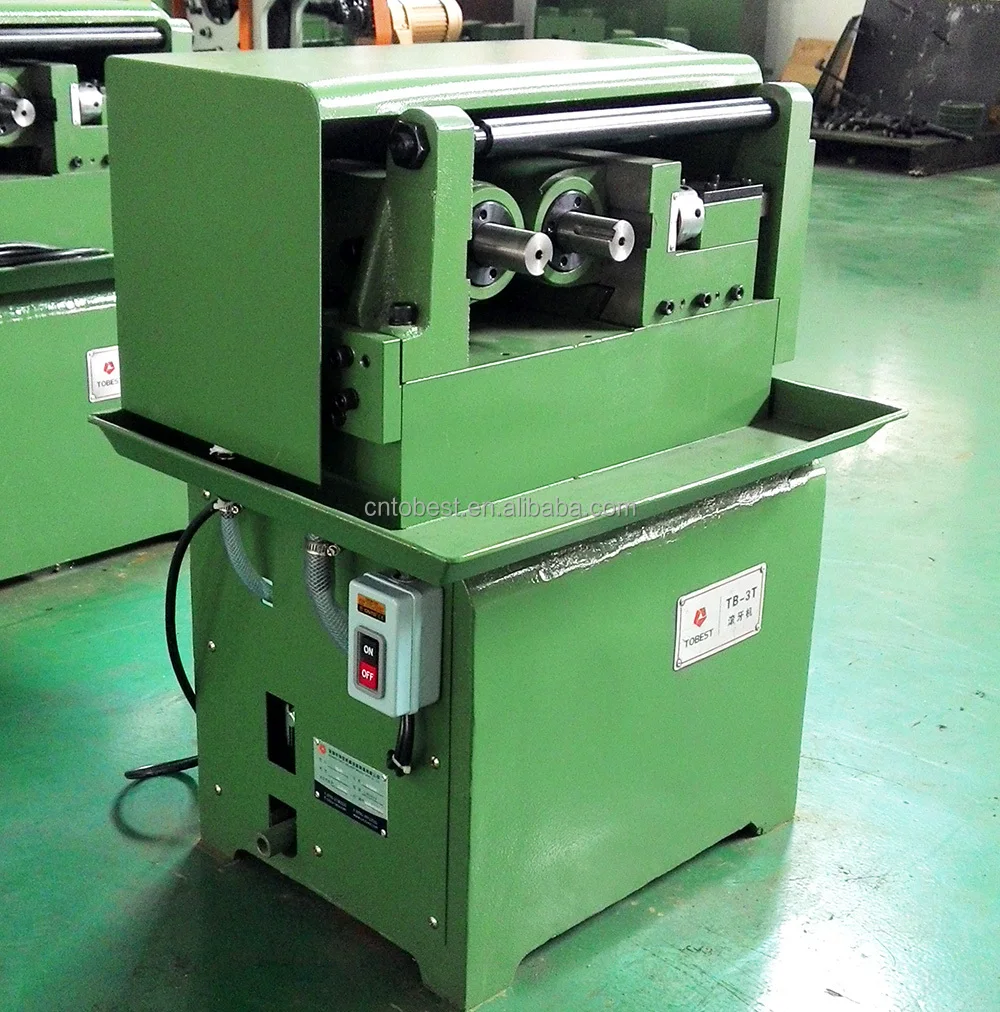

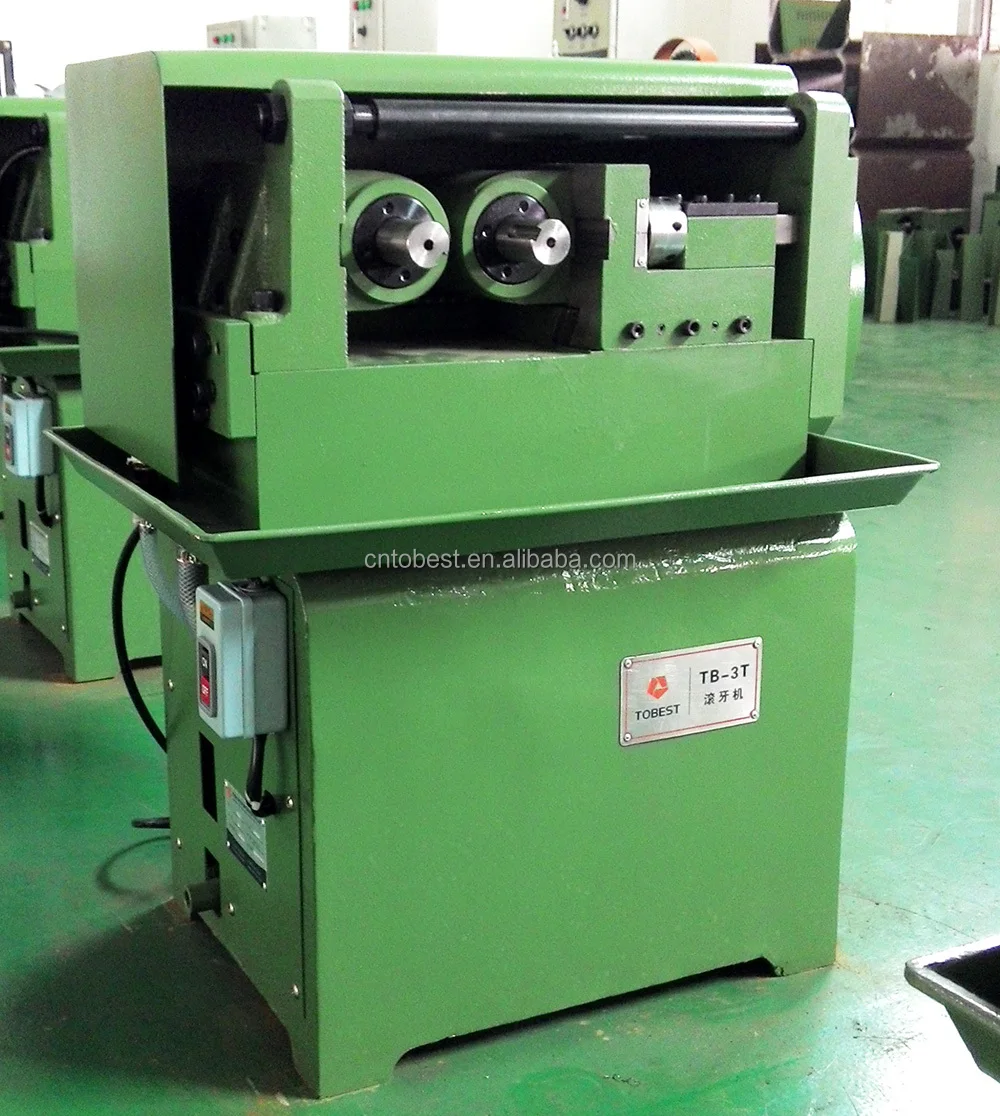

Technical Parameter of TOBEST TB-3T

Diameter for the threads rolled				φ2-φ10/mm
Range of pitch rolled				0.4-1.5P
length of thread rolled				28mm
Spindle speed				27rpm
Outside diameter of rolling die				φ100mm
Inside diameter of rolling die				φ50.5mm
Thickness of rolling die				30mm
Distance between the roller shaft				90-130mm
Main power motor				1HP(735W)
Distance from lathe bed to rolling die				85mm
Supply voltage				380V
