pp plastic broom floor toilet brush making machine
- 15000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Payment Terms: | L/C,T/T; | Automatic Grade: | Automatic; |
| Package Preview: | ; | Application: | Making brush; |
| Applicable Industries: | Machinery Repair Shops,Manufacturing Plant; | Brand Name: | Meixin; |
| Port: | FOB GUANGZHOU/SHENZEHN/JIANGMEN; | Machinery Test Report: | Provided; |
| Voltage: | 220/380V; | Place of Origin: | Guangdong, China; |
| Warranty: | One year; | Supply Ability: | 350 Sets per Year; |
| Dimension(L*W*H): | 1800*1200*1700mm; | Warranty of core components: | 1 Year; |
| Certification: | CE; | Marketing Type: | New Product 2020; |
| Weight: | 1000KGS; | Video outgoing-inspection: | Provided; |
| Power: | 1KW; | Packaging Detail: | Wooden packing; |
| Condition: | New; | Production Capacity: | 4-6holes/second; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Showroom Location: | None; |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Local Service Location: | None; |
| Core Components: | PLC,Motor; |

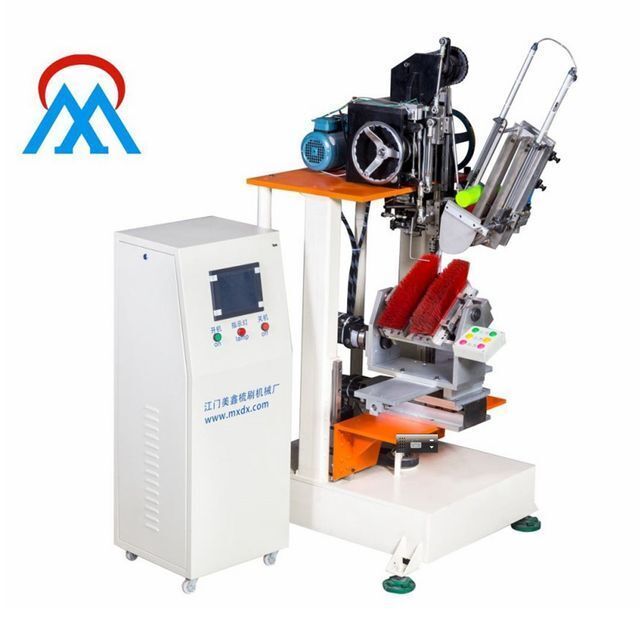

High speed automatic 4 axis 1 tufting ball shape ceiling brush making machine round toilet brush making machine make round brush
| Description: | |
| Model | MX-4AT001 |
| NO. of axis | 4axis |
| Qty of heads | 1 tufting |
| Application | Flat, curved ,radial and toilet brush. |
| brush types | Brush base with holes |
| Brush base materials | Plastic, wood |
| Filament materials | PP,PET, Nylon,animal hair plant fiber etc. |
| The mold fixture size | 300*50mm |
| Diameter of hole | 4~6mm |
| The length of filament(outside the hole) | 50~110mm/ 150~200mm |
| Colors of Brush Filaments | 2 colors |
| Parameter: | |
| tufting Speed | 4~6 holes/sec. |
| Power voltage, frequence | 220/380v , 50/60HZ (customer choose) |
| Main motor power | 1kw |
| Air Source Input | 0.4~0.5Mpa |
| Equipment size | 1800*1200*1700mm |
| Weight | 1000kg |
| Electrical parts: | |
| Control System(PLC) | MEIXIN Chinese and English version |
| Touch screen | MEIXIN Chinese and English version |
| Main motor | SNMA |
| Servo motor | Maxsine |
| Relay | IDEC (Janpan) |
| Variable-Frequency | DELTA (Taiwan) |
| Safety Protection: | Schneider (France brand) |
