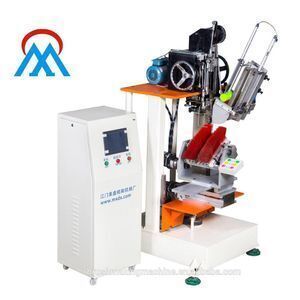

3 axis easy to operate fan shape broom brush tufting machine/Good look double colors daily fan broom brush making machine

Click here to contact

Product details

Packaging Detail:	Wooden Packing;	Brand Name:	Meixin;
Automatic Grade:	Automatic;	Supply Ability:	350 Set/Sets per Year;
Port:	FOB GUANGZHOU/SHENZHEN/JIANGMEN;	Package Preview:	;
After-sales Service Provided:	Engineers available to service machinery overseas;	Certification:	CE;
Payment Terms:	L/C,T/T;	Power:	1KW;
Weight:	1000KGS;	Place of Origin:	Guangdong China;
Application:	Making brush;	Warranty:	One year;
Dimension(LWH):	200012001700mm;	Production Capacity:	4-6holes/second;
Voltage:	220/380V;	Condition:	New;

Description:
Model	MX-3AT001
NO. of axis	3 axis
Qty of heads	1 tufting
Application	Fat and regular angle , roller and disc brush.
brush types	Flat brush base with holes
Brush base materials	Plastic, wood
Filament materials	PP,PET, Nylon,animal hair plant fiber etc.
The mold fixture size	300*50mm
Diameter of hole	4~6mm
The length of filament(outside the hole)	50~110mm/ 150~200mm
Colors of Brush Filaments	2 colors
Parameter:
tufting Speed	4~6 holes/sec.
Power voltage, frequence	220/380v , 50/60HZ (customer choose)
Main motor power	1kw
Air Source Input	0.4~0.5Mpa
Equipment size	200012001700mm
Weight	1000kg
Electrical parts:
Control System(PLC)	MEIXIN Chinese and English version
Touch screen	MEIXIN Chinese and English version
Main motor	SNMA
Servo motor	Maxsine
Relay	IDEC (Janpan)
Variable-Frequency	DELTA (Taiwan)
Safety Protection:	Schneider (France brand)
