Plate Heat Exchanger Milk Heating Unit Heat Exchanger Dairy Exchagner
-
Supplier: Shanghai Unibang International Trading Co., Ltd. -
Region: Shanghai, China -
Contact: Ms Anna Jiang -
Price: $2000.00 / 5 - 9 sets
$1600.00 / >=10 sets -
Min. Order: 5 sets
Product details
| Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump,Gasket,Sealing Ring; | Gasket material :EPDM HNBR: | Frame Material: Carbon Steel; |
| Warranty: | 1 Year; | Testing Presure :1.2Mpa: | Plate Size : 0.26 0.16 0.56m2; |
| Package Preview: | ; | Connector Size :1100*460*1520mm: | Plate dimension :1210*340 mm; |
| After-sales Service Provided: | Field installation, commissioning and training; | Packaging Detail: | WOODEN CASE PACKAGE WITH MARKS .; |
| Working Presure :1.0Mpa: | Material : SUS304; | Place of Origin: | Shanghai, China; |
| Connector Size :DN50: | Plate Thickness : 0.6mm; | Power: | 12KW; |
| Machinery Test Report: | Provided; | Model Number: | 500-30000L/H; |
| Usage :Heating & Cooling: | After-sales Service Provided; | Heat exchange area : 3-65M2: | Plate material 316L / SUS304; |
| Condition: | New; | Payment Terms: | L/C,Western Union,T/T,MoneyGram; |
| Dimension(L*W*H): | 800x460x1520 mm; | Supply Ability: | 10 Sets per Month; |
| Brand Name: | CHANGLONG; | Voltage: | 380V 440V 415V 220V; |
| Certification: | CE ISO9001; | Showroom Location: | Algeria,Bangladesh,Ukraine; |
| Marketing Type: | Ordinary Product; | Weight: | 800 KG; |
| Video outgoing-inspection: | Provided; | Port: | SHANGHAI PORT, CHINA; |
| Local Service Location: | Australia,Argentina,UAE; | Warranty of core components: | 3 years; |
| Processing Types: | Juice; | Processing: | Heat Exchanger; |
| Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Home Use,Retail,Construction works ,Energy & Mining,Food & Beverage Shops,Dairy & Beverage Factory,Brewing & Juice Factory; |
Product Overview
PLATE HEAT EXCHANGER
PLATE HEAT EXCHANGER
The plate heat exchanger is used for heat exchange between liquid and gas,with such characteristics as high heat exchanging efficiency, compact structure,small space, good adaptability and convenient operation and cleaning etc. In dairy industry, it is applicable to instant sterilization of fresh milk and cooling of dairy. It is also applicable to the heating and cooling of fruit juice, tea beverage, vinegar and alcohol etc. industries. It is the ideal sterilizing and heat exchanging equipment for food industries. It has been widely used in such industries an petrochemical industry, pharmacy, paper-making, machinery, metallurgy, shipbuilding, power generation, heating and ventilating etc. Additionally, it can be used for processing and production of protein and egg white.
The plate heat exchanger is used for heat exchange between liquid and gas,with such characteristics as high heat exchanging efficiency, compact structure,small space, good adaptability and convenient operation and cleaning etc. In dairy industry, it is applicable to instant sterilization of fresh milk and cooling of dairy. It is also applicable to the heating and cooling of fruit juice, tea beverage, vinegar and alcohol etc. industries. It is the ideal sterilizing and heat exchanging equipment for food industries. It has been widely used in such industries an petrochemical industry, pharmacy, paper-making, machinery, metallurgy, shipbuilding, power generation, heating and ventilating etc. Additionally, it can be used for processing and production of protein and egg white.
FEATURES AT A GLANCE
(1) Small volume, small footprint;
(2) High heat transfer efficiency;
(3) Flexible assembly;
(4) Low metal consumption;
(5) Small heat loss;
(6) Convenient disassembly, cleaning and maintenance;
(7) The disadvantage of plate heat exchanger is that the sealing periphery is long, easy to leak, the use temperature can only be
less than 150oC, the pressure difference is small, the processing capacity is small, once the plate scaling must be removed and
cleaned.
(2) High heat transfer efficiency;
(3) Flexible assembly;
(4) Low metal consumption;
(5) Small heat loss;
(6) Convenient disassembly, cleaning and maintenance;
(7) The disadvantage of plate heat exchanger is that the sealing periphery is long, easy to leak, the use temperature can only be
less than 150oC, the pressure difference is small, the processing capacity is small, once the plate scaling must be removed and
cleaned.
PLATE HEATING SYSTEM

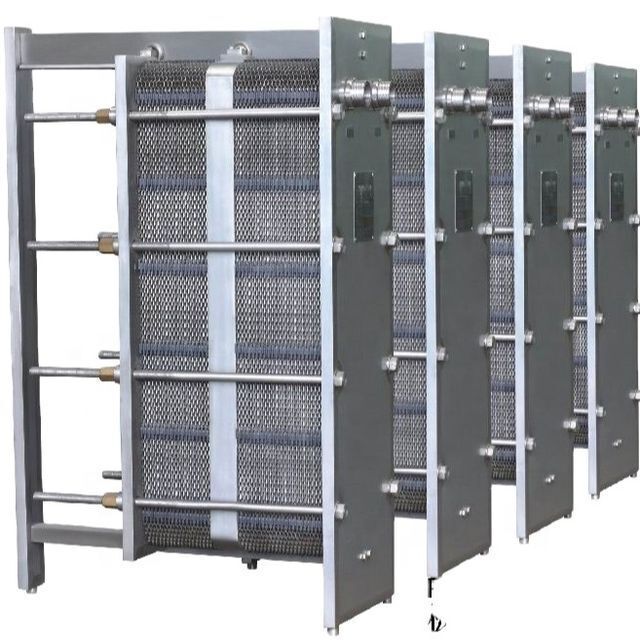

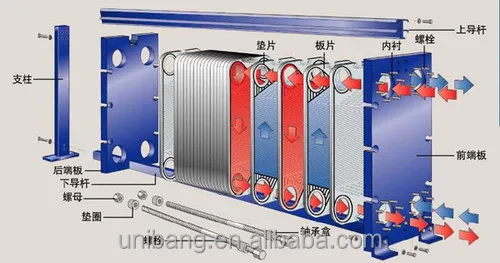

PLATE HEAT EXCHANGER
MULTI-SECTION PLATE HEAT EXCHNGER
PRODUCT SPECIFICATIONS
PLATE HEATING SYSTEM 1- Syrup Heating & Melting Unit : Working Technology : 10℃--65℃ 2- Milk Heating Unit : Working Technology : 5℃--45℃ 3- Syrup Heating & Melting Unit : Working Technology : 10℃--65℃ 4- RO Water Heating : Working Technology : 10℃--90℃ 5- CIP Water Heating : Working Technology : 50℃--85℃ | Item | Data | ||||||
Model | Flow Rate : L/H | Production / Hot Water Diameter : mm | Outline Dimension : mm | Weight :KG | ||||
BR1-JR-1J | 1000 | ￠25/￠25 | 450-300-810 | 350 | ||||
BR16-JR-2J | 2000 | ￠25/￠38 | 600-350-1320 | 500 | ||||
BR16-JR-3J | 3000 | ￠38/￠38 | 800-350-1320 | 650 | ||||
BR26-JR-5J | 5000 | ￠38/￠51 | 1100-460-1520 | 900 | ||||
BR26-JR-8J | 8000 | ￠51/￠51 | 1200-460-1520 | 1050 | ||||
BR26-JR-10J | 10000 | ￠51/￠51 | 1300-460-1520 | 1250 | ||||
BR4-JR-15J | 15000 | ￠51/￠63 | 1400-700-1600 | 1400 | ||||
PRODUCT CONFIGURATION
PLATE HEATING SYSTEM
SPIRAX SARCO STEAM CONTROLLING VALVES
BRAZED PLATE HEAT EXCHANGER
SALES AND SERVICE NETWORK

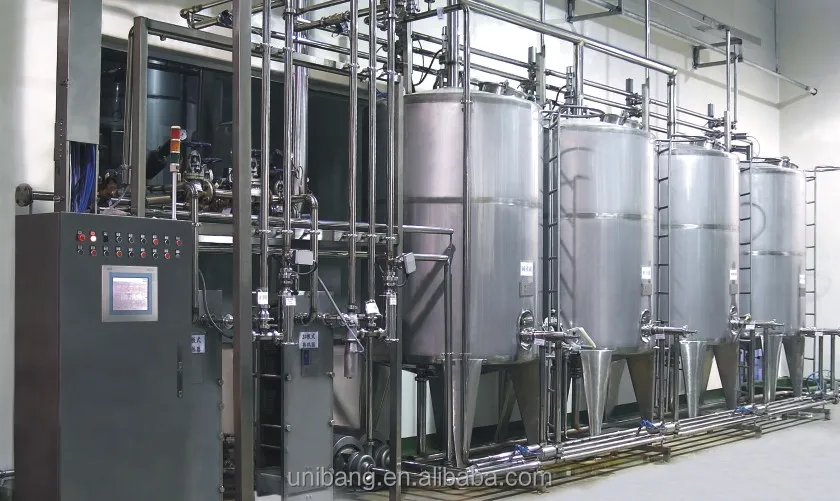

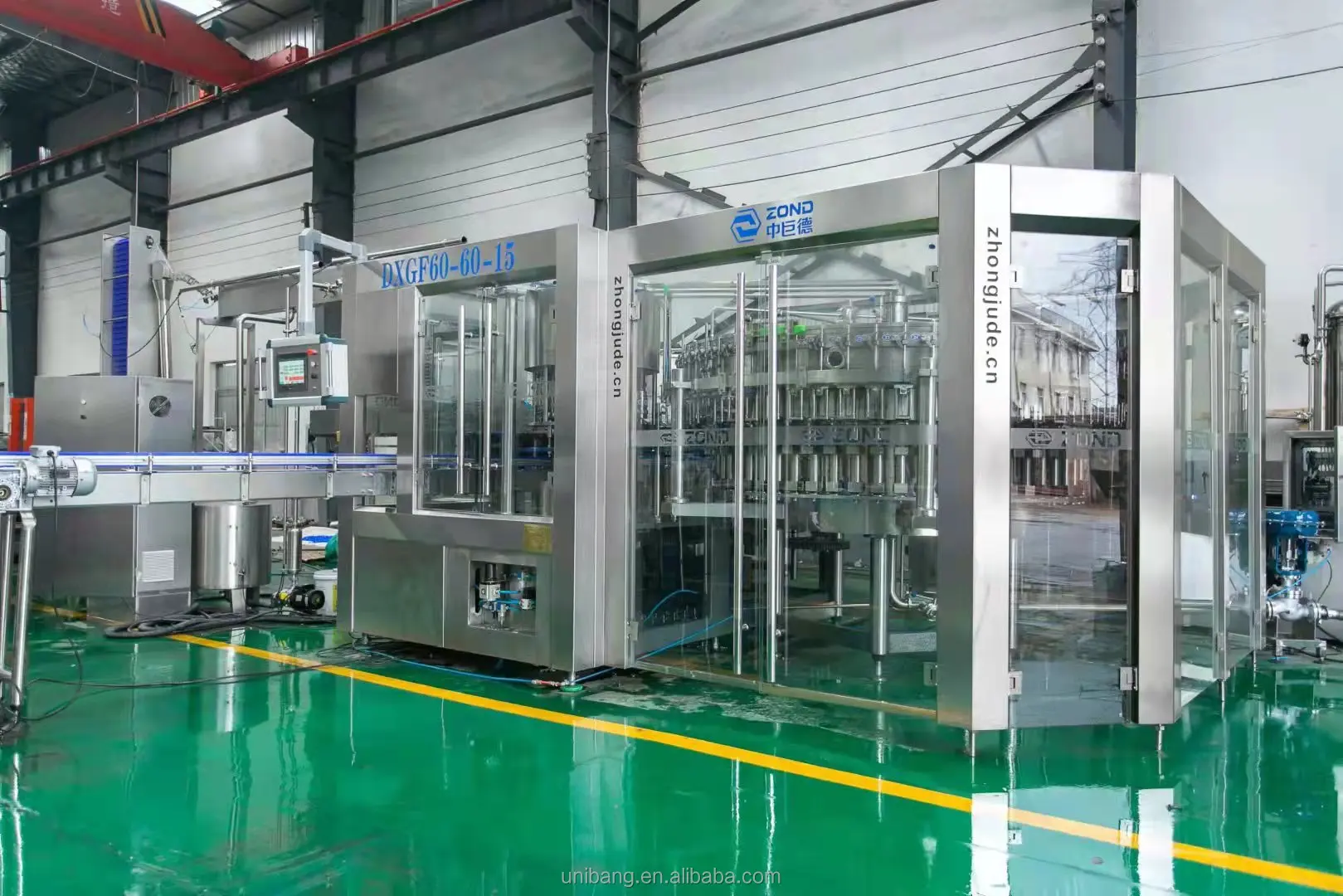

Successful Project
Project in Thailand
Project in Japan
Project in Russia
SIMILAR PRODUCTS
FAQ
Q1: Which city are you in? How can I get to your factory? Are you a trading company or factory?
A1: We are in Shanghai , China . It will take 1 hour from PVG and HoongQiao Airport to our factory .
We are factory with trading branch office .
Manufacturing mainly Dairy , Juice and Beverage Heat Exchanger, sterilizing Equipment, CIP cleaning system and pre-treatment
processing line design &producing &installation .
We have been offering turnkey solutions with more than 20 years experience.
Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is the equipments delivery time?
A3: Normally 30-60 working days depends on different machines, Aseptic UHT sterilizer making period is longer than other common
pasteurizer and UHT sterilizers .
Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed.
Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD200/day/person.
Q5: How long time for installation and testing ?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 5 days, and 5-10 days for
testing
Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to
save international courier such as DHL, it is really costly.
Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintain.
Q8: What is your payment term?
A8: 40%T/T in advance as down payment, then 60% TT should be paid before shipping. ( L/C is supported also )
For the processing line payment , 40%T/T in advance as down payment, then 60% TT should be paid before shipping.
A1: We are in Shanghai , China . It will take 1 hour from PVG and HoongQiao Airport to our factory .
We are factory with trading branch office .
Manufacturing mainly Dairy , Juice and Beverage Heat Exchanger, sterilizing Equipment, CIP cleaning system and pre-treatment
processing line design &producing &installation .
We have been offering turnkey solutions with more than 20 years experience.
Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is the equipments delivery time?
A3: Normally 30-60 working days depends on different machines, Aseptic UHT sterilizer making period is longer than other common
pasteurizer and UHT sterilizers .
Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed.
Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD200/day/person.
Q5: How long time for installation and testing ?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 5 days, and 5-10 days for
testing
Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to
save international courier such as DHL, it is really costly.
Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintain.
Q8: What is your payment term?
A8: 40%T/T in advance as down payment, then 60% TT should be paid before shipping. ( L/C is supported also )
For the processing line payment , 40%T/T in advance as down payment, then 60% TT should be paid before shipping.
