Yitai Textile Machinery Nylon Plastic Rope Cord Making Machine Shoelace Braid Knitting Braiding Machine for Rope

Click here to contact
Product details
Power:0.75KW;Dimension(L*W*H):1750*1200*1600MM;
Local Service Location:Viet Nam,Peru,Indonesia,India,Mexico,Thailand,Argentina,Colombia,Bangladesh;Warranty:1 Year;
Description:Rope Braiding Machine;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Core Components:Motor;Weight (KG):530 KG;
Capacity:1.5 m /min/head;Marketing Type:Hot Product 2021;
After-sales Service Provided:Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;Warranty of core components:1 Year;
Spindles:40;JINJIANG:PP Rope Making Machine;
Package Preview:;Condition:New;
Model Number:YTS 2/40;Machinery Test Report:Provided;
Video outgoing-inspection:Provided;Port:XIAMEN;
Place of Origin:Fujian, China;Head:2;
Showroom Location:Viet Nam,Peru,Indonesia,India,Mexico,Thailand,Argentina,Colombia,Bangladesh;Motor power:1 HP;
Supply Ability:300 Sets per Month;Payment Terms:L/C,T/T;
Packaging Detail:1 set of machine per standard polywood case. YITAI Automatic High Speed Flat Cord Lace Rope Braiding Machine;Max speed of leaf teeth:360 RPM;
2021:Braiding Machine;Applicable Industries:Manufacturing Plant;
Brand Name:YITAI;Range of Products:Ropes, shoelaces, elastic cords;

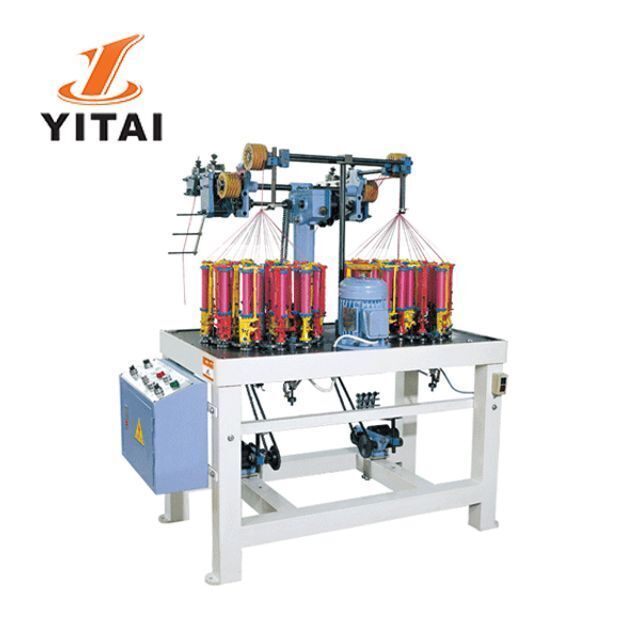

Yitai High Speed Braiding Machines
are used to produce a variety of elastic or non-elastic ropes, draw cords, shoelaces etc.It comes with 2,4,6,8 heads with a number of spindles available such as 8,9,12, 13,16,17,21,24,32,40 etc. There are three bobbin sizes available 48*140mm,70*210mm.
Model
Head
Spindle
Bobbin size
Max speed of leaf tooth
Motor
Carrier type
YTS 2/21
2
21
48*140mm
360
1HP
A,B
YTS 2/24
2
24
48*140mm
360
1HP
A,B
YTS 2/25
2
25
48*140mm
360
1HP
A,B
YTS 2/29
2
29
48*140mm
360
1HP
A,B
YTS 2/32
2
32
48*140mm
360
1HP
A,B
YTS 2/33
2
33
48*140mm
360
1HP
A,B
YTS 2/40
2
40
48*140mm
360
1HP
A,B
YTS 2/41
2
41
48*140mm
360
1HP
A,B
YTS 2/43
2
43
48*140mm
360
1HP
A,B
YTS 2/46
2
46
48*140mm
360
1HP
A,B
YTS 2/48
2
48
48*140mm
360
1HP
A,B
YTS 4/12
4
12
48*140mm
360
1HP
A,B
YTS 4/13
4
13
48*140mm
360
1HP
A,B
YTS 4/16
4
16
48*140mm
360
1HP
A,B
YTS 4/17
4
17
48*140mm
360
1HP
A,B
YTS 4/17
4
17
48*140mm
360
1HP
A,B
YTS 4/21
4
21
48*140mm
360
1HP
A,B
YTS 4/25
4
25
48*140mm
360
1HP
A,B
YTS 6/16
6
16
48*140mm
360
1HP
A,B
YTS 6/17
6
17
48*140mm
360
1HP
A,B
YTS 8/12
8
12
48*140mm
360
1HP
A,B
YTS 8/13
8
13
48*140mm
360
1HP
A,B
YTS 8/7
8
7
48*140mm
360
1HP
A,B
YTS 8/8
8
8
48*140mm
360
1HP
A,B
YTS 8/9
8
9
48*140mm
360
1HP
A,B
YTS-B 1/24
1
24
70*210mm
360
2HP
C
YTS-B 1/48
1
48
70*210mm
360
2HP
C
YTS-B 2/11
2
11
70*210mm
360
2HP
C
YTS-B 2/13
2
13
70*210mm
360
2HP
C
YTS-B 2/16
2
16
70*210mm
360
2HP
C
YTS-B 2/17
2
17
70*210mm
360
2HP
C
YTS-B 2/21
2
21
70*210mm
360
2HP
C
YTS-B 2/24
2
24
70*210mm
360
2HP
C
YTS-B 2/25
2
25
70*210mm
360
2HP
C
YTS-B 2/29
2
29
70*210mm
360
2HP
C
YTS-B 2/9
2
9
70*210mm
360
2HP
C
YTS-B 4/9
4
9
70*210mm
360
2HP
C
 Above table only shows few machine models, more models are welcome to contact us directly.
YITAI Group is a conglomerates which is specializes in manufacturing machinery and import and export international trade. Yitai established in 1996.

We are always insisting on the principle of “Live on quality, Develop from innovation”. High efficiency, energy saving, environmental protecting are the company's innovative three indicators. Introducing the international advanced production equipment, integrating our rich experience, we have confirmed our goods quality to the first-place in the world. We have passed CE certification in 2005. Access to high-tech enterprises in Fujian province science and technology department in 2007. After many years of development, our company has become one of the biggest textile machine suppliers in domestic and in the world, and we earn a good reputation in the world.

Our company products as following: weaving machines area including high speed needle loom, computerized jacquard loom, crochet knitting machine, high speed braiding machines, yarn warping machines, finishing & starching machines, computerized lace machine, festooning machine, rolling machine, shoelace & gift tipping machine, belt cutting machine as well as many other accessory machines.
Q:How long is the machine warranty?
A:It's 12 months from B/L date. Each machine will be testing for at least 48 hours and get a warranty hangtag before packing and delivery.
Q: What technical support can I get?
A:Each machine has instruction book. We also offer video support. Learning in our factory is for free. We can also send technician to your factory with cost if needed.
Q:What is your term of delivery?
A:We accept EXW, FOB XIAMEN and CIF. You can choose the one which is the most convenient or cost effective for you.
Q:What about the lead time for the mass production?
A:-Sample Order: 1-3 days after receipt of the full payment. - Stock Order: 3-7days after receipt of the full payment. - OEM Order: 20-30days after receipt of the deposit.
Q:How about your after-sales service?
A:One year not including easy consumable parts; If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service
