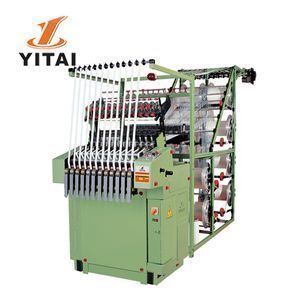

Nylon Zipper Tape Needle Loom Making Machine

Product details
Power:1.5 HP;Warranty:1 Year;
Optional attachment:Beam;Speed:1400-1600RPM;
Condition:New;Payment Terms:L/C,T/T,Western Union;
Dimension(L*W*H):1080*1280*1980;Heald frame:12pcs;
Type:zipper needle loom;Packaging Detail:1 set per standard wooden case of Automatic Slider Nylon Zipper Bag Making Machine;
Weight:450kg;Place of Origin:Fujian China;
Voltage:220V/380V/440V;Chain repeat:8 Cam styles;
Certification:CE;ISO;Port:XIAMEN;
Application:Belt;After-sales Service Provided:Online support,Video technical support;
Weft density:3.5-36.7WEFT/CM;Brand Name:YITAI;
Supply Ability:200 Set/Sets per Month;Normal attachment:Heald frame;
Company Information

ABOUT US

Fujian YITAI Group consists of

JINJIANG YITAI WEAVING MACHINE MAKING CO., LTD.

XIAMEN YITAI INDUSTRIAL CO., LTD.

FUJIAN YITAI TECHNOLOGY CO., LTD.


Since 1990

Yitai is engaged in developing textile machinery. Our main products are Needle Loom, Zipper Tape Needle Loom, Computerized Jacquard Loom. Braiding Machine, Crochet Knitting Machine and other textile machinery.

Quality First

Since the foundation, our company has insisted on innovative technique and constant improvement of quality. Using imported machinery to build machines in our own CNC and imported spare parts for high precision.

Product Description

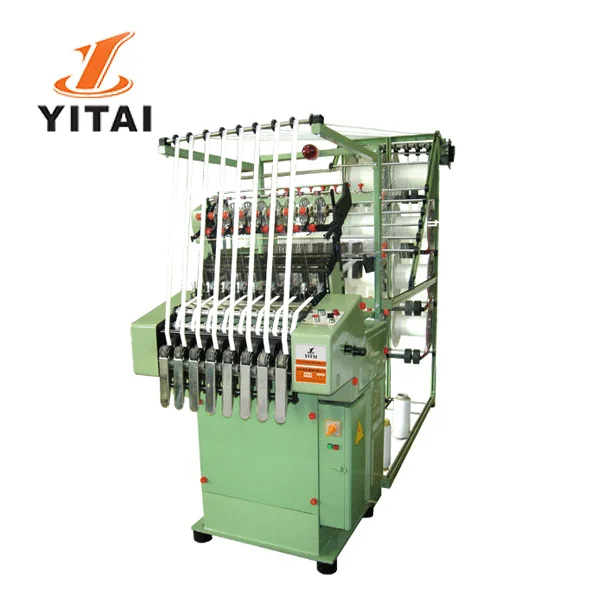

Nylon Zipper Tape Needle Loom Making Machine

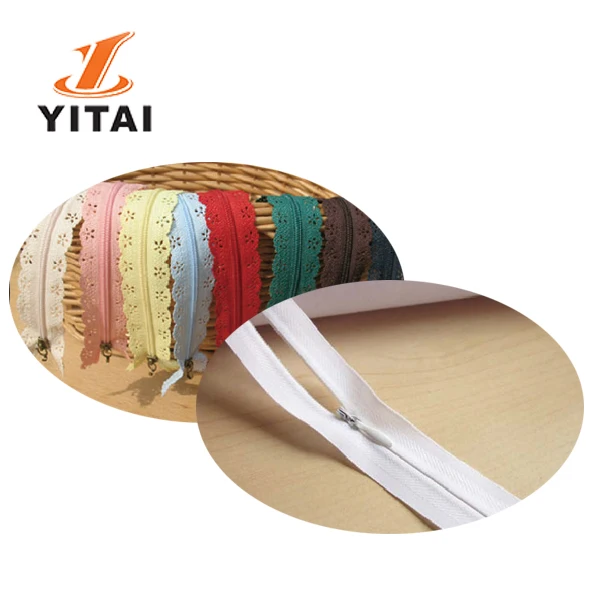

nylon zipper belts

YTA Series Zipper Belt Needle Loom


Model12/2514/20
Tapes1214
Reed Width(mm)2520
Motor1.5HP
Speed1400-1600 rpm
Heald Frame12 PCS6 PCS
Design chain circle8 cam styles
Weft Density3.5-36.7 weft/cm
Normal AttachmentBack take-off device, creel places, normal attachment
Functions For Metal ZipperFor Nylon Zipper
Optional AttachmentBeam(355*255mm, USD50/PCS)
Size of package1080*1280*1980mm
Net Weight(KGS)750 KGS
Gross Weight(KGS)780 KGS


Packaging & Shipping

PACKAGE:

Standard export packing, PP warping and polywood case.

DELIVERY TIME:

within 30 working days after confirming order and advance payment,detail delivery date should be decided according to
production season and order quantity.

FAQ
Q Wwh  How long is the machine warranty?
A   It's 12 months from B/L date. Each machine will be testing for at least 48 hours and get a warranty hangtag before packing and delivery.
Q Wh  What technical support can I get?
A   Each machine has instruction book. We also offer video support. Learning in our factory is for free. We can also send technician to your factory with cost if needed.
Q

What is your term of delivery?

A

We accept EXW, FOB XIAMEN and CIF. You can choose the one which is the most convenient or cost effective for you.

Q

What about the lead time for the mass production?

A

Normally it takes about 35 days after getting deposit.

Our Advantages

WHY CHOOSE US

TEAM

50 Senior Technicians

80 Wokers

R & D

Patents of Each Machines

QUALITY

48 hours non-stop testing before delivery

FACTORY

Established in 1990

If the quantity of order is not very big,we could send them to you by express delivery,such as TNT,DHL,UPS OR EMS etc.

If order is big ,we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent.Our long-term cooperated agent also available.

Certifications

OUR CERTIFICATES
