Electric plastic mini desktop injection molding machine, micro small products injection molding

Supplier: Taizhou Blowell Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Carol Cai
Price: $4500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Home Use,Food Shop,Construction works ;	Screw diameter (mm):	22 mm;
Machinery Test Report:	Provided;	Condition:	New;
Theoretical Shot Volume(cm³):	40 cm³;	Open Stroke(mm):	80 mm;
Model Number:	BW-MINI;	Key Selling Points:	Long Service Life;
Port:	ningbo;	Mold Height(mm):	100 - 150 mm;
Brand Name:	BW;	Core Components:	PLC;
Screw L/D Ratio:	20;	Distance between Tie Bars(Height)(mm):	130mm;
Injection Rate (g/s):	170 g/s;	Plastic Type:	thermoplastic;
Plasticizing Capacity(g/s):	30;	Clamping Force (kN):	150 kN;
Power (kW):	5.5 kW;	Supply Ability:	100 Sets per Month;
Place of Origin:	Zhejiang, China;	Type:	Tube Shoulder Injection;
Video outgoing-inspection:	Provided;	Marketing Type:	Hot Product 2019;
Warranty:	2 years;	Payment Terms:	Western Union,T/T,MoneyGram;
Automatic:	YES;	Ejector Force(kN):	10 kN;
Showroom Location:	Canada,United Kingdom,United States,Italy,France,Philippines,Brazil,Mexico,Kazakhstan,Uzbekistan;	Ejector Stroke(mm):	70 mm;
Distance between Tie Bars(Width)(mm):	130mm;	Style:	Horizontal;
Weight (KG):	220 kg;	Injection Weight (g):	40 g;
Plastic Processed:	PP,ABS,PVC,HDPE,PA,PE,ABS/PP;	Warranty of core components:	1 Year;
Machine Type:	Electric;

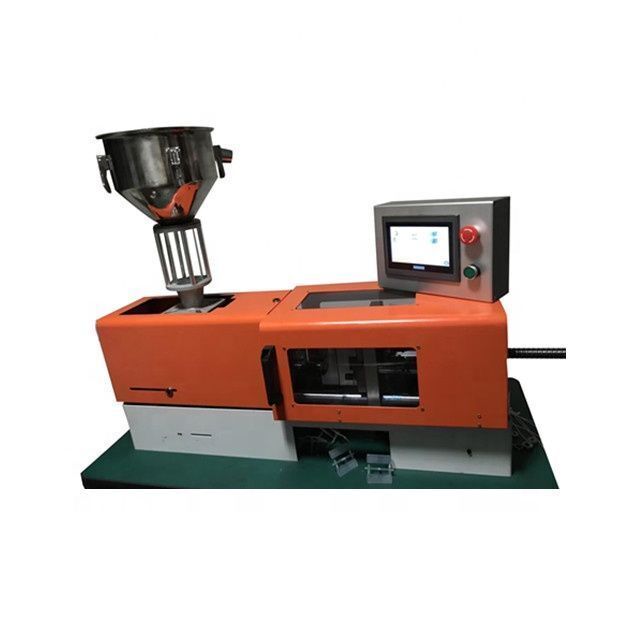

MINI DESKTOP INJECTION MOLDING MACHINE

Product Description

Small Size, Full Energe Blowell Mini, small products solution specialist!

Mini desktop injection machine is the most cost-effective way to produce the small plastic components in the market. Necessity is the mother of invention. The BLOWELL MINI was born as a redesigned and optimized model of the traditional injection machine, and easy to apply for prototyping, testing, new product development and small part production. Easy for maintenance, fast changing mold and lower investment for production.

More Color to Choose

MACHINE DETAILS

Full automatic operation page

PLC control

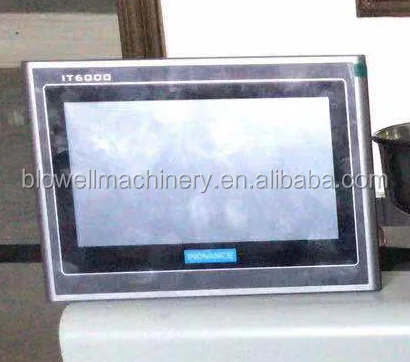

The touch screen to start and stop the machine, adjust settings and monitor progress in real time.

Servo motor driven system which can control more precision and accuracy

Heating unit the machine can mold a variety of plastic resins, including ABS, acetal, HDPE, PP, PS and TPO

Mold clamping system Unique crank arm mechanical structure system which can enhance the mold clamping force

Application

More Than 100+ Projects Export to 50+ Countries Test 20+ plastic material Production for 200+ products

Micro precision parts production
Small Electrical Appliances production

Small air phone accessories production
Small cosmetic product making machine
Wall anchor/ small home furniture injection molding
Small car button making machine
Small toy accessories production
New product testing
