1435 mm Digital Track Gauge for Railway Measurement

Supplier: Xiangyang Lianjie Mechanical&Electrical Co., Ltd
Region: Hubei, China
Contact: Mr Jodie Yuan
Price: $750.00 / 1 - 10 pieces
$580.00 / 11 - 20 pieces
Min. Order: 1 piece

Click here to contact

Product details

Products Description

Digital track gauge can directly read the measurement values of railway track gauge, super elevation ,check rail gauge and back to back distance through microelectronics, embedded and sensor technologies and OLED display screen.
With the rapid development of China's railways, higher requirements have been put forward for railway measurement tools: to provide railway safe operation with high accuracy, fast measurement speed, simple operation, especially suitable for night measurement, digital display, data recording, transfer computer and other functions of the new measurement tools become a top priority. This digital track gauge is a high-precision, portable, num-1 shaped track geometry detection tool developed and developed according to the current situation of All-weather, high speed, high density, complicated railway condition, large climate change and large range of temperature difference in China.
Compared with analog track gauge, digital track gauge has the following advantages: high precision, good stability and easy to use High precision: the most cutting-edge microelectronic technology and intelligent data processing system, with temperature compensation and optimization, small temperature drift, eliminate the impact of material thermal expansion and cold contraction on
the measurement accuracy;The zero-grade gauge gauge resolution is 0.01mm, and the horizontal resolution is better than 0.05mm, which can be used for the route with a speed not greater than 350Km/h.Good stability: strong anti-electromagnetic interference, conforming to the stipulations of ELECTROMAGNETIC compatibility in GB/T18268-2000, solves the data drift well, and the stability is still better than 0.10mm after 50000 repeated measurements.

Easy to use:

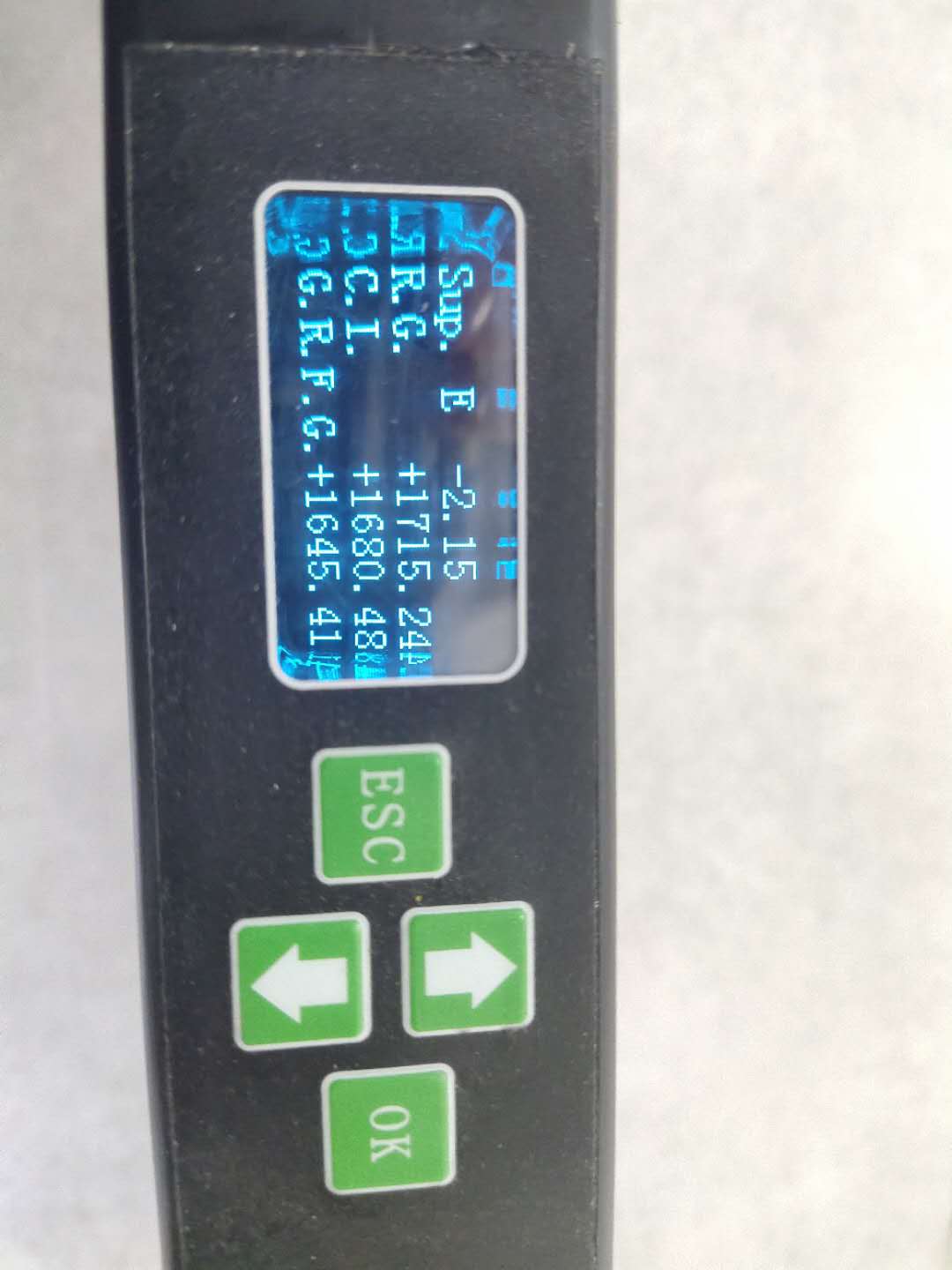

1.OLED display, separate calibration of data such as level, track gauge, check rail gauge and back to back distance, digital track gauge is clear and intuitive, suitable for outdoor high-light reading and night measurement.
2. Duringuse, after the measuring point is stuck, the digital track gaugewill automatically complete the measurement of all data and directly read the measured data, which completely eliminates the errors of vision error and reading estimation between the lines, and saves the tedious operation procedure of using the mechanical track gauge .
3. The operation interface of the gauge is simple and the keys are set humanly. There are only three keys with strong functions and few keys.
4. One-click lock screen, no need to bend over, screen lock can be recorded while walking, save time and effort.
5. Simple maintenance: there is no need to replace the mechanical line cutting measuring mechanism, which completely eliminates the cost of replacing the mechanical line cutting measuring mechanism components.
6. Simple calibration: it only needs to follow THE OLED prompt to calibrate step by step. General calibration only takes 2
minutes.
7. This digital track gaugecan be used all over the world: it has the waterproof function and the optimum temperature range of -30℃ ~ +55℃. It can be used in the field under all weather and various natural environments.
8. Super long standby, the continuous working time of the rail gauge is 6 days.
Other functions: Voice prompt: In measurement 1 or when the battery is low, there will be buzzer reminder and alarm.
Power saving function: enter the power saving state without any operation within five minutes, then automatically shut down if there is no operation within five minutes. Function of recording data, transferring computer, etc.

Product Paramenters

Model(1435mm)	GJC-JG0	GJC-JG1
Track gauge(mm)	1410-1470	1410-1470
Gauge rail check gauge(mm)	1381-1401	1381-1401
Guard rail face gauge(mm)	1338-1358	1338-1358
Superelevation measuring range	-185~+185	-185~+185
Superelevation division value	0.05	0.1
Track gauge division value	0.01	0.01
Track gauge max indication error	±0.25	±0.25
Superelevation error	±0.3	±0.45
Application rail line	railway speed less than 350km/h	railway speed less than 250km/h
Customize	we also have model for narrow gauge 600mm 900mm 1067mm and model for broad gauge 1520mm 1600mm 1676mm for choose.

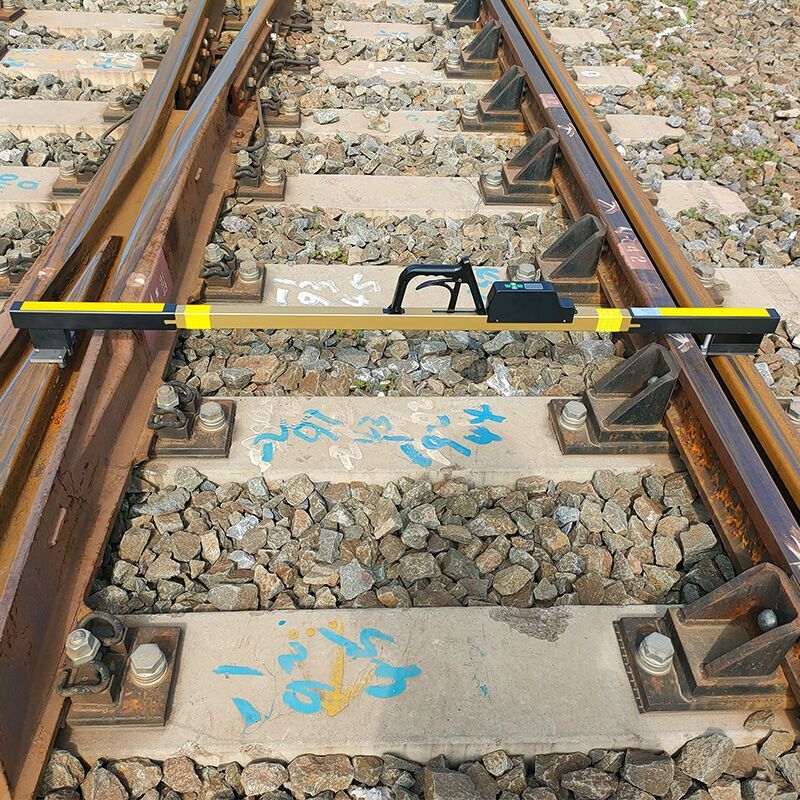

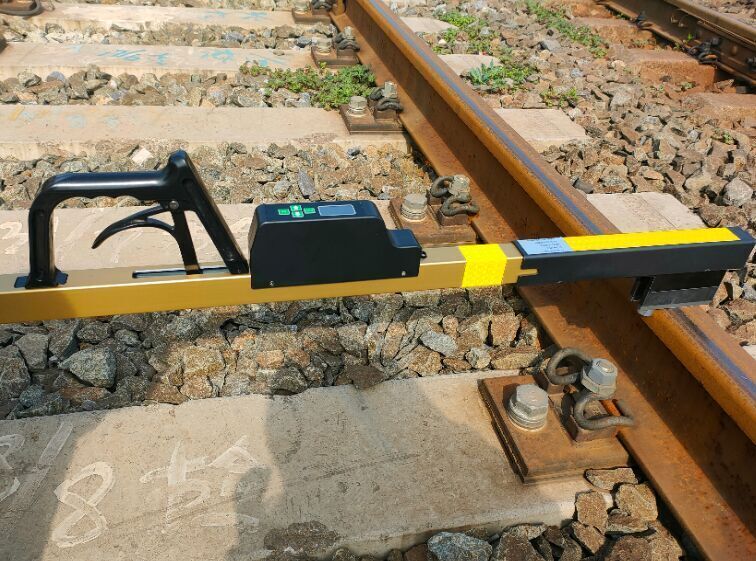

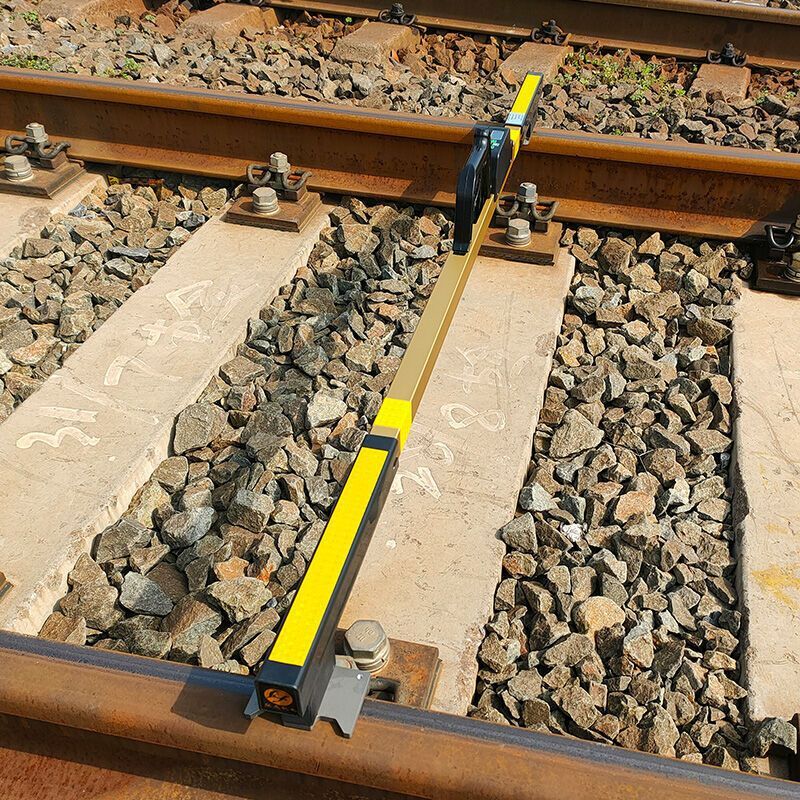

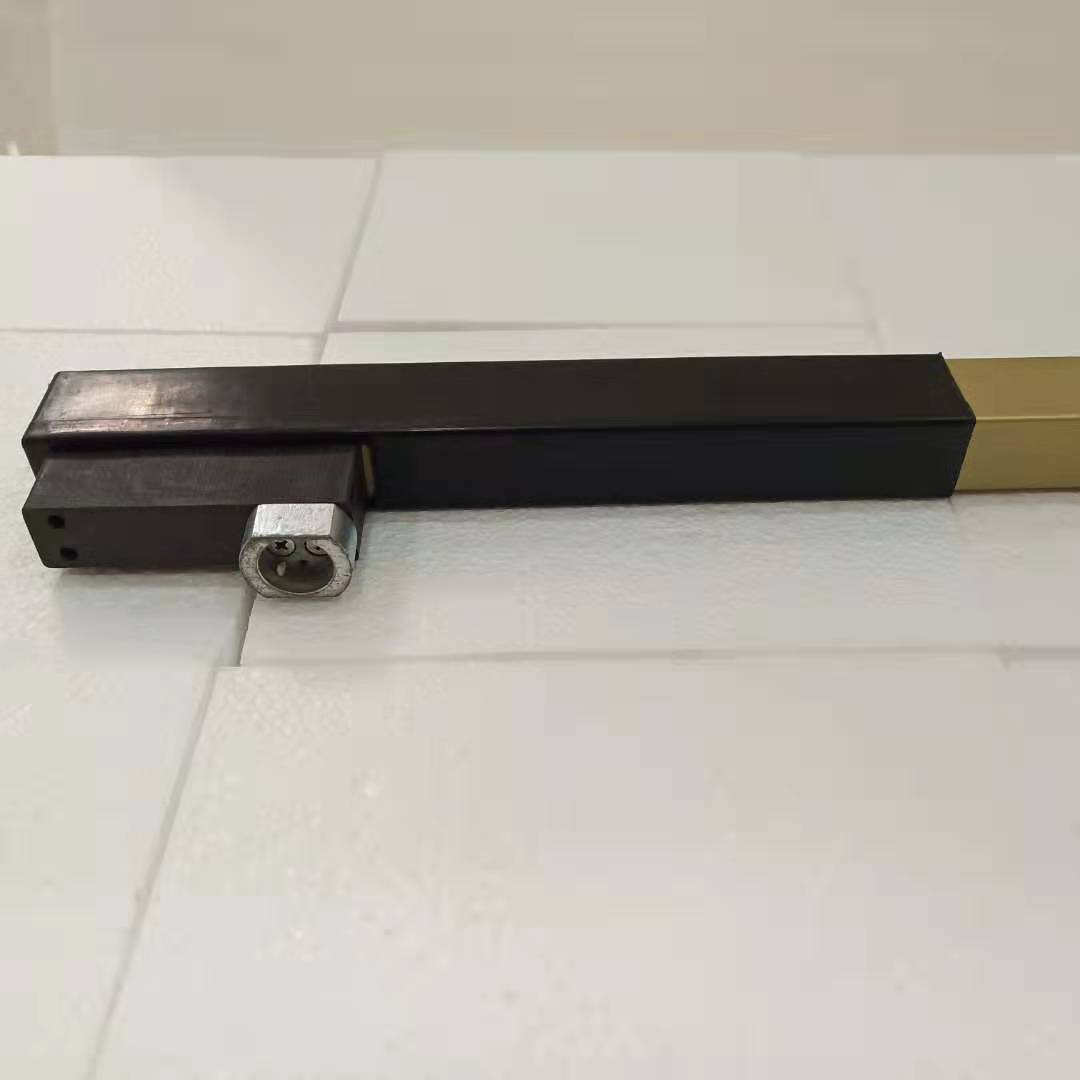

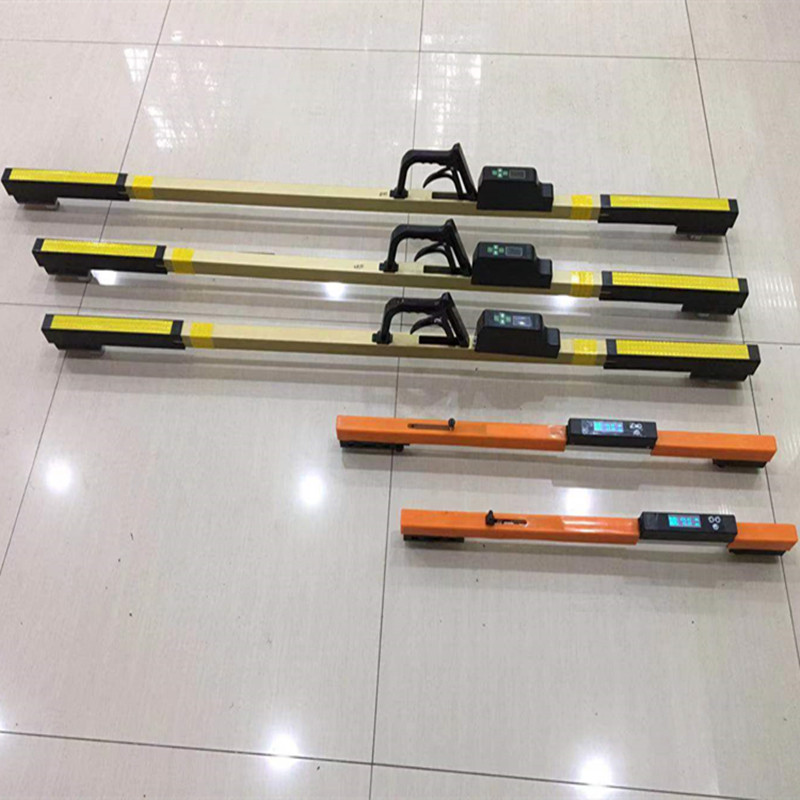

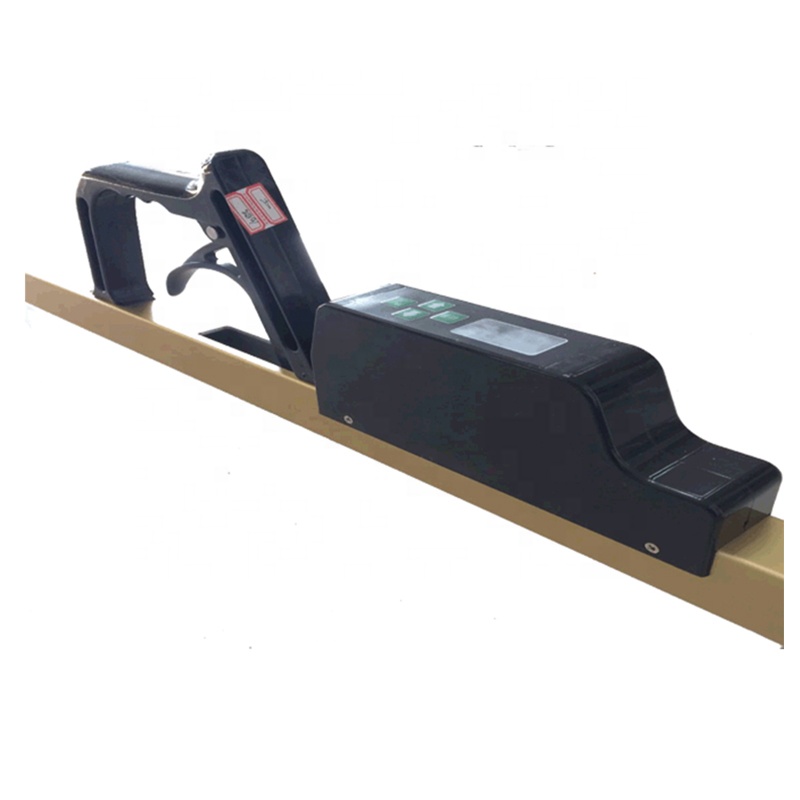

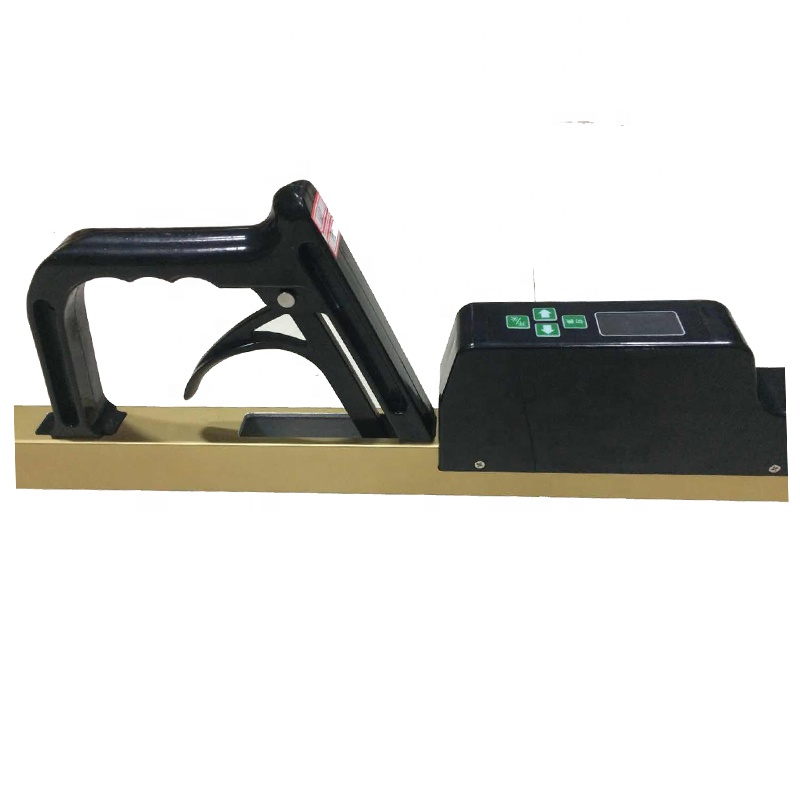

Details Images

Customer Photos

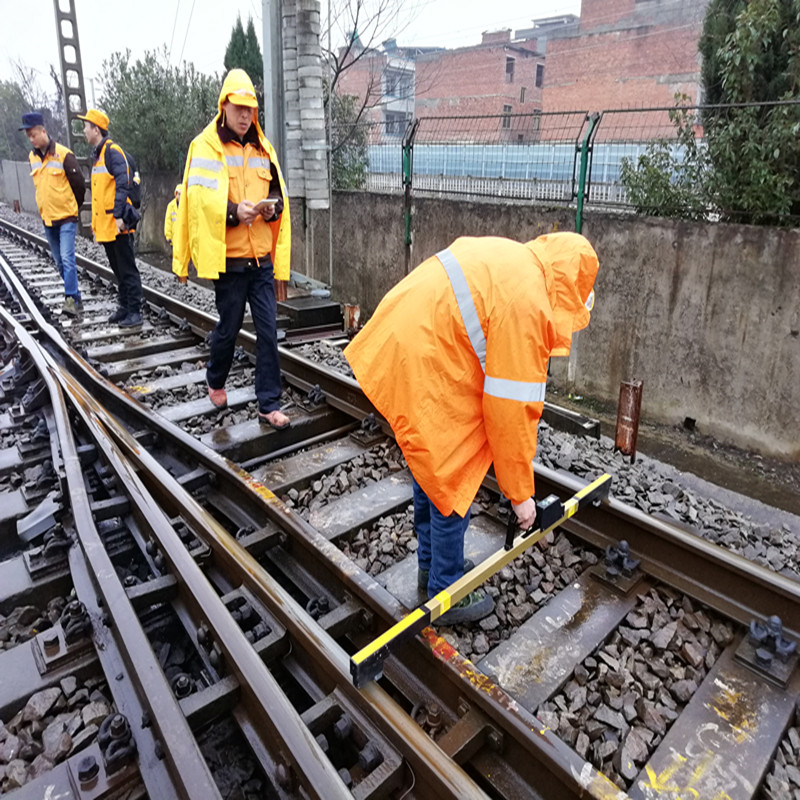

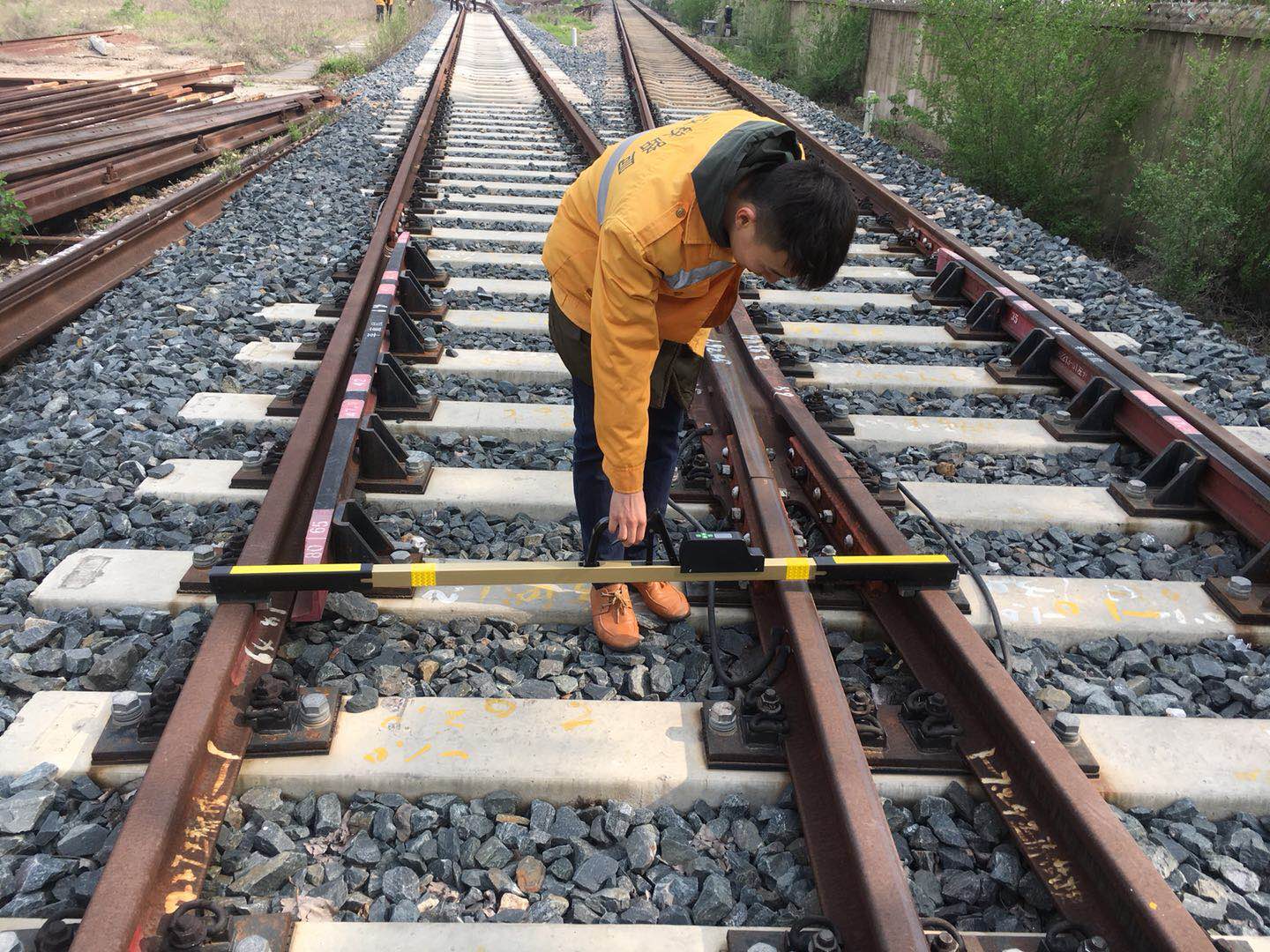

Digital track gauge for maintenance

Digital track gauge for measuring rail turnout ,the railworker still working in the rainy day.Lianjie digital track gauge best choose for rail maintenance.

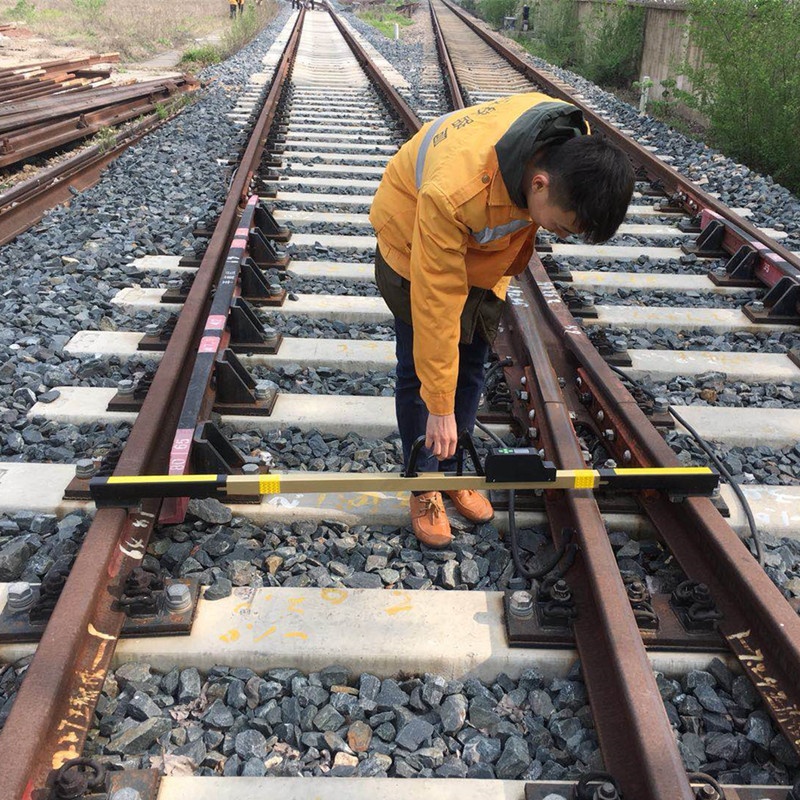

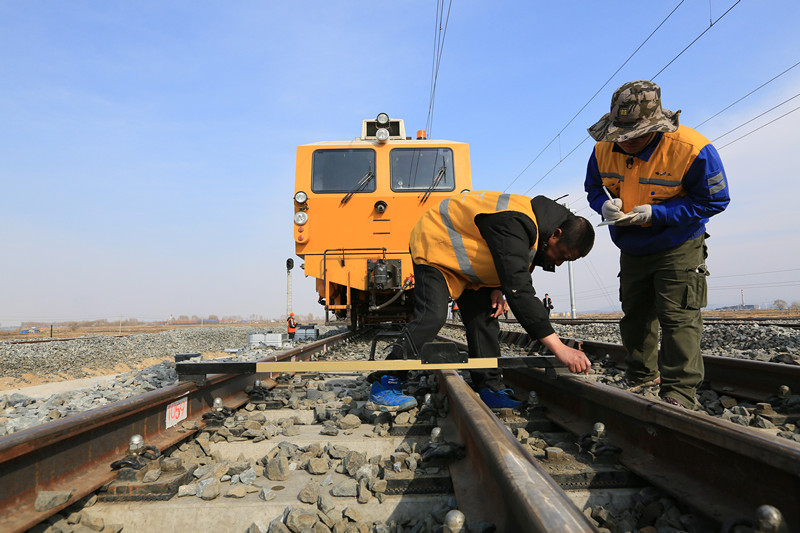

Track gauge for railway measurement

Harbin railway maintenance department are using Lianjie digital track gauge for normal rail inspection. Digital type is more convenient to use in cold weather.

Show digital track gauge for customer

Show our digital track gauge to our customer in Xiangyang railway maintenance department. Compare to analogue track gauge,digital track gauge with high precious.

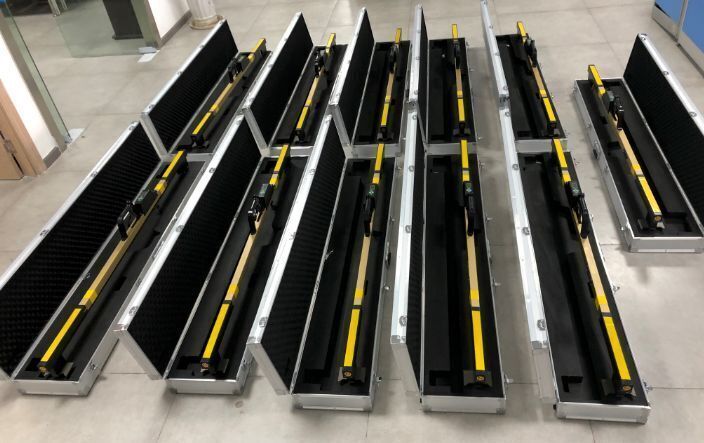

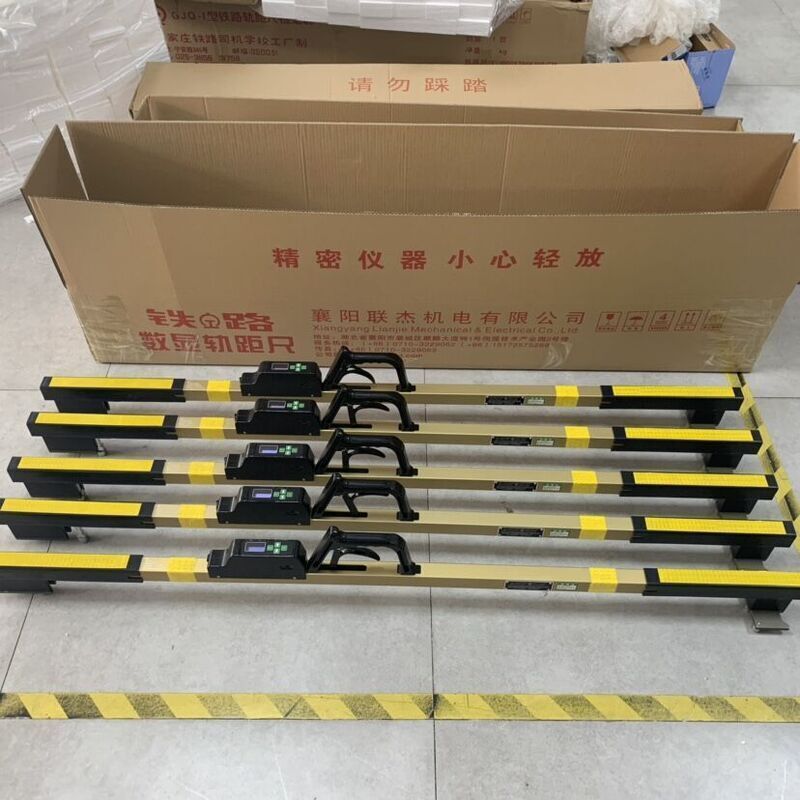

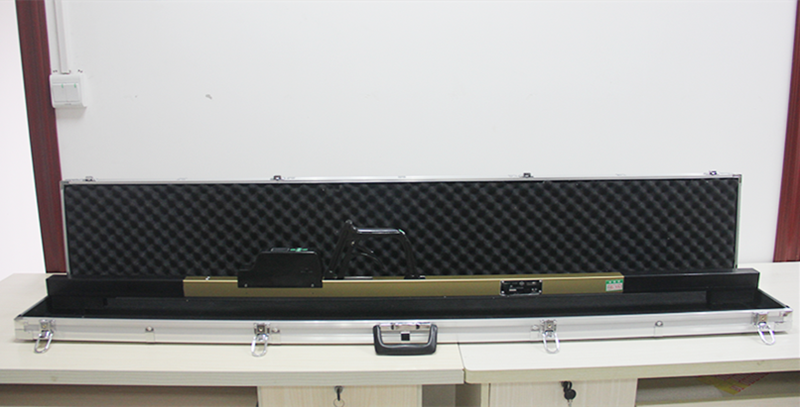

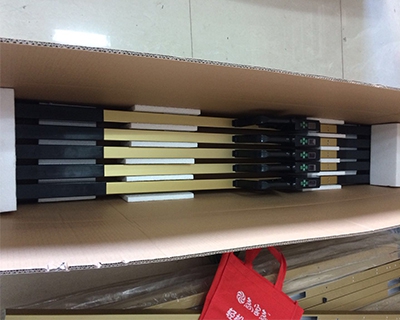

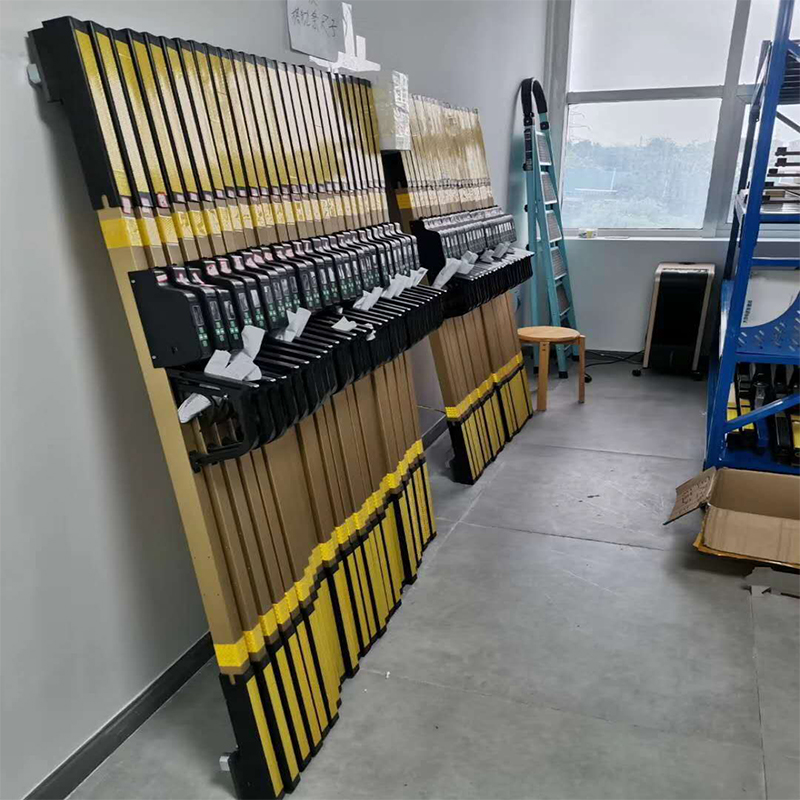

Package & Delivery

Company Profile

Lianjie mechanical&electrical co.,ltd

Xiangyang Lianjie Mechanical&Electrical Co.,Ltd. Established in 2013,specialized in designing and manufacturing of the geometry measurement systems for the railway,including digital track gauges,mechanical gauge,rail wear gauge,turnout measurement gauges ect.
Our products are China Railway Construction Corporation Limited (CRCC) approved.The products are used by CRCC for all their rail operation. Besides, our products are also being used by major rail operators in America, Australia, Europe and the ASEAN countries.
The bitterness of poor quality remains long after the sweetness of low price is forgotten. Our mission is to manufacture high quality rail measurement instruments at a competitive price with reliable services to our clients in order to help them to maintain & operate a safe railway system.
