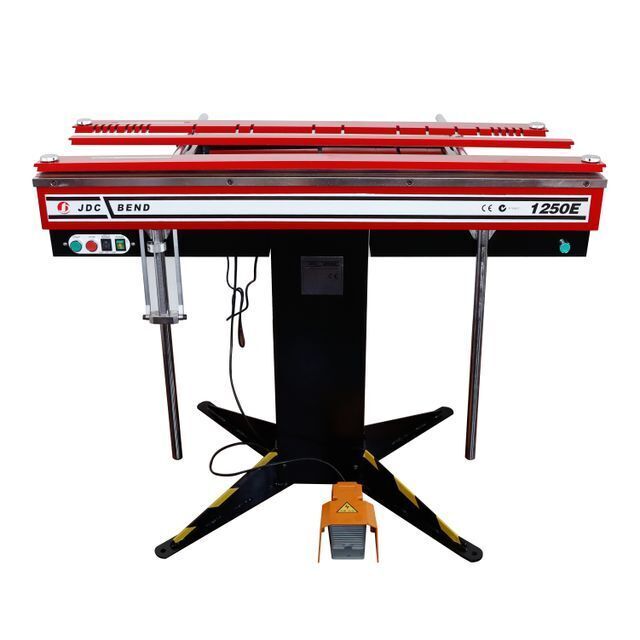

Model 1250E Magnetic Bending Machine High Quality Sheet Bender Electromagnetic Folding Machine
-
Supplier: Fuzhou JDC Mechanical Equipment Co., Ltd. -
Region: Fujian, China -
Contact: Ms Anna Luo -
Price: $1499.00 / 1 - 9 pieces
$1200.00 / 10 - 19 pieces
$1150.00 / >=20 pieces -
Min. Order: 1 piece
Product details
| Machinery Test Report: | Not Available; | After Warranty Service: | Spare parts; |
| Single gross weight: | 150.000 KG; | Name: | Rebar Bending Machine; |
| Brand Name: | JDC BEND; | Weight (KG): | 180; |
| Automatic Level: | Manual; | Material / Metal Processed: | Brass / Copper,Stainless Steel,ALLOY,Carbon steel,Aluminum,Plastic,PVC; |
| Single package size: | 145X30X30 cm; | Marketing Type: | New Product 2020; |
| Key Selling Points: | High Safety Level; | Video outgoing-inspection: | Provided; |
| Warranty: | 1 Year; | Warranty of core components: | 1 Year; |
| Slider Stroke (mm): | 1.6 mm; | Width of Working Table (mm): | 1250 mm; |
| Usage: | Metal Sheet Rolling Bending; | Local Service Location: | None; |
| Product name: | Magnetic Bending Machine; | Throat Depth (mm): | 1.6 mm; |
| Motor Power (kw): | 200 kw; | After-sales Service Provided: | No overseas service provided,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support; |
| Showroom Location: | None; | Extra Services: | End Forming; |
| Color: | Customer; | Packaging Detail: | each one in a carton; |
| Certification: | ce; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; |
| Automation: | Manual; | Length of Working Table (mm): | 1250; |
| Raw Material: | Steel Bar; | Type: | Metal Bender Tools; |
| Machine Type: | Press Brake,Torsion Bar; | Core Components: | Bearing,Motor,Pump,Gear,PLC,Pressure vessel,Engine,Other,Gearbox; |
| Selling Units: | Single item; | Place of Origin: | Fujian, China; |
| Condition: | New; |
Advantages
1. No limitation to depth of boxes.
2. Can form deep channels, and completely closed sections.
3. Automatic clamping and unclamping means faster operation, less fatigue.
4. Accurate and continuous indication of beam angle.
5. Quick and accurate setting of angle stop.
6. Infinite length bending in stages is possible.
7. Open ended design allows folding of complex shapes.
8. Machines can be ganged end-to-end for long bending.
9. Adapts easily to customised tooling (clamp bars of special cross-sections).
1. No limitation to depth of boxes.
2. Can form deep channels, and completely closed sections.
3. Automatic clamping and unclamping means faster operation, less fatigue.
4. Accurate and continuous indication of beam angle.
5. Quick and accurate setting of angle stop.
6. Infinite length bending in stages is possible.
7. Open ended design allows folding of complex shapes.
8. Machines can be ganged end-to-end for long bending.
9. Adapts easily to customised tooling (clamp bars of special cross-sections).
Parameters | ||||||||||||
MODEL | 650E | 1000E | 1250E | 2000E | 2500E | 3200E | ||||||
Max capcity ( mm ) | 625 X 1.6 | 1000 X 1.6 | 1250 X 1.6 | 2000 X 1.6 | 2500 X 1.6 | 3200 X 1.2 | ||||||
( Length x thickness )（ga） | 2' X 16 | 3' X 16 | 4' X 16 | 6' X 16 | 8' X 16 | 10' 18 | ||||||
Clamping force ( ton ) | 3 | 4.5 | 6 | 9 | 12 | 10 | ||||||
Duty cycle | 30% | 30% | 30% | 30% | 30% | 30% | ||||||
Back gauge ( mm ) | 390 | 640 | 640 | 640 | 650 | 640 | ||||||
Nominal current ( Amp ) | 4 | 6 | 8 | 12 | 15 | 15 | ||||||
Bending-edge length ( mm ) | 670 | 1050 | 1300 | 2090 | 2590 | 3290 | ||||||
Distance between lifters ( mm) | 630 | 1010 | 1260 | 2028 | 2528 | 3228 | ||||||
Foot switch | Standard | Standard | Standard | Standard | Standard | Standard | ||||||
Packing size ( cm ) | 90X30X35 | 120X30X35 | 140X110X35 | 220X110X35 | 270X110X35 | 340X110X35 | ||||||
N.W. / G.W. ( KG ) | 102/127 | 142/177 | 175/220 | 290/220 | 330/420 | 400/510 | ||||||
