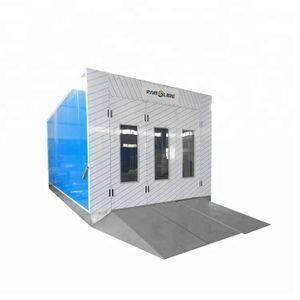

Paint booth Car painting equipment Bake Oven Booth/auto spray booth

Click here to contact
Product details
Heating productivity:200000Kcal/h;Voltage:380V/220V;
Certification:CE;External Size:7340*5350*3470mm;
Lighting System:LED Light;Type:Spray Booths;
Disc Dia.:Non;Power:10.5KW;
Internal Size:7200*3900*2700mm;Place of Origin:Shandong China (Mainland);
Product name:Bake oven booth/auto spray booth;Supply Ability:100 Set/Sets per Month;
Certificate:CE certificate;No Load Speed:0.35m/s;
Model Number:SLD-E50;Filters:Complete Filter System;
Packaging Detail:Container full container;Brand Name:SLIDE;
Port:qingdao;Fans:Centrifugal Fans;
Warranty:24 months;Warranty:24 months;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Wall panel thickness:75mm;
Color:Cutomized;

This is a high-end paint booth

We can provide rock wool wallboard, EPS wallboard, electric heating, diesel heating, natural gas heating, all kinds of filtration systems. We can also design a suitable spary booth for you according to your actual site.Contact us and you'll be pleasantly surprised.

SLIDE brand buy spray booth,get filter or infrared lamps for free.Buy now! Contact our machines expert,Grace Zhai



Product Description





Technical Parameters



Inside Dimension

7200*3900*2700mm(L×W×H)

Outside Dimension

7340*5350*3470mm(L×W×H)

Main Door

3 folds door , 3000×2600mm(W*H) ,it is bending steel without cover frame.

This type is very strong and beautiful . Also equipped with Handle & Lock.

Personal Door

1fold ,800×2000mm(W×H). Equipped with Handle & Anti-Explosion Lock .

Wall Panels

High quality double construction insulation EPS panel, thickness: 75mm.

Galvanized steel roof panel .

Basement and Floor

Galvanized steel assemble,Full metal foundation, height is 280mm .  Five rows flat steel Grilles (galvanized)

3 pieces of Ramps, each size 970×2000mm (W×L),diamond plate construction.

Lighting System

LED Ceiling lights: 8 units×4pieces =32pieces ×16W.

LED Side lights: 10units × 2 pieces =20pieces ×16W

Generator

Setting Type

Side upper intake air, quadrate steel frame, coated steel ,inside rock-wool insulation.

Electric damper actuates from the spraying to baking cycle.

Inlet Fan

2×4KW YDW double-intake centrifugal fans, total air capacity: 25000m³/h.

Exhaust Fan

1×7.5KW YDW double-intake centrifugal fans, total air capacity:18000m³/h.

Heating System

Burner

1set : RIELLO G20 diesel burner, heating productivity: 200000 Kcal/h,

Adopt high efficient heat-resistant stainless steel as cycling heat exchanger.

4-6minutes (from20 to 60º C) under baking status, max baking temperature is 80° C.

Heating Exchanger

1.5mm thickness SUS304 stainless steel. Max temperature is 80 degree, heating time is 4-5 min (20-60 degree), fuel consumption is 4-5kg/vehicle.

Filter System

The primary filter can capture granules larger than 10μm , filtering rate > 83%.

Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%.

Floor filter( fiberglass paint-stop filter ),filtering rate > 70%.

Activated carbon filter or granules put in cabinet.

Control System

Lighting switch, spraying , heat spraying , baking , temperature controller,

time setting, emergency stop , failure indicator, hour meter, thermostat .

Total Power

16.3 KW (380V/ 220V ,50HZ/ 60HZ ,3 Phase )


FAQ

1,As for  auto spray booth,what kind of heating system do you have?

    It has electric heating system,diesel heating system.You are suggested to choose one heating method.It depends on whether electricity or diesel is more expensive in your local.

 2,What is the thickness of wall panels metal sheets?

    The thickness of EPS is 50mm,75mm,Rock wool board 50mm,75mm,the thickness of metal sheets is 0.35-0.476mm

 3,What is the roof material?

    Galvanized steel roof panel.

 4,What is the relate of outside height and inside height of  auto spray booth?

    The height of basement is 280mm,the height of roof is 490mm,so 3470mm-280mm-420mm=2700mm

 5,As for  auto spray booth,what is the height requirement of vehicles which will be sprayed and baked?

    Height of vehicles should be less than or equal to 1900mm,because there should be 800mm from car roof to inside booth roof.Be convenient to spray paint on the top of vehicles.

 6,What is the main purpose of flat steel grilles?

   There is filtration system under flat steel grilles.

 7,What is the advantages of inlet fans and exhaust fans?

    With fans,the booth will have a good and rapid internal air circulation,paint fumes can be drain out as quick as possible.Pollution is small,it will be comfortable when people are working in the booth.

8,What kind of fans used in your auto spray booth?

   YDW European turbofan,high air volume,low noise,low pressure,it's ideal fans in automobile spray cabinet.

 9,What kinds of color of main door I can choose?

    As for main door,you can choose grey,white,red,blue,reddish orange,silver grey.

 10,What kinds of color of SLD-E50 auto spray booth I can choose?

    Generally speaking,we have grey,blue etc.You also can tell us the color you like.We will make sure whether it is available according to color card.

11,How do you determine fans on the left or right of spray booth?

     When you stand in front of auto spray booth looking at it,the fans will be on the left or right.

12,Where is the temperature sensor installed in spray booth?

     Temperature sensor should be installed at the middle of top roof.It is both beautiful and effective.

13,Can I open the ventilator and heating system at the same time?

      When spraying,ventilator works,making a good internal air circulation,paint fumes can be drain out as quick as possible,you can open infrared lamps or diesel burner if indoor temperature is very low.But when baking,ventilator is not allowed to open.heating system and ventilator can not work at the same time when baking.

14,Besides SLD-E50,do you have other types of spray booth?

     Yes,we have a series of spray booths,SLD-E10,SLD-E20,SLD-E30,SLD-E40,SLD-E50,SLD-E60,SLD-E70,SLD-E80.

15,How about your after-sales service?

     Our after-sales service is very good.Each kind of spare parts of spray booth will be marked by number before delivery,and packing list,installation drawing,circuit diagram will come with auto spray booth.Besides,we have installation videos of spray booth in Youtube.If you have any question during the process of installation,you can also consult our machine expert,Grace Zhai.
