260 Cartons/Min Continuous Fully Automatic Carton Packaging Machinery Pill Tablet Capsule Bottle Cartoning Machine

Supplier: Guangdong Rich Packing Machinery Co., Ltd.
Region: Guangdong, China
Contact: Mr Haoran Fu
Price: $108633.00 / 1 - 2 pieces
$103200.00 / 3 - 4 pieces
$97770.00 / >=5 pieces
Min. Order: 1 piece

Click here to contact

Product details

Marketing Type:	New Product 2020;	Condition:	New;
Video outgoing-inspection:	Provided;	Voltage:	220/380V 50Hz;
Supply Ability:	30 Pieces per Month;	Payment Terms:	L/C,Western Union,T/T,MoneyGram;
Carton Size:	L(70-185)W(35-90)H(14-50)mm;	Core Components:	Bearing,Motor,Pump,Gear,PLC,Pressure vessel,Engine,Gearbox;
Air Consumption:	160-200L/min;	Brand Name:	Rich Packing;
Automatic Grade:	Automatic;	Packaging Detail:	Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.;
Packaging Material:	Paper,Cartoning box packing machine;	Function:	Push Products Into Carton And Sealing Carton;
Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Malaysia,Australia;	Driven Type:	Electric;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Pharmacy;	Working Pressure:	≥0.6mpa;
Warranty:	3 years;	Package Preview:	;
Place of Origin:	Guangdong, China;	Port:	Guangzhou/Shanghai;
Dimension(LWH):	480016001860mm;	Application:	Beverage,Food,Machinery & Hardware,Medical,bottle,Commodity,Chemical;
Packaging Type:	Cartons,Bottles,Stand-up Pouch,Pouch,Capsule;	Machinery Test Report:	Provided;
Key Selling Points:	High Productivity;	Total Power:	5 kw;
Carton Weight:	250-350g/㎡;	Production:	260 Cartons/min;
After-sales Provided:	Engineers available to service machinery overseas;	Weight:	3000 KG;
Warranty of core components:	3 years;	Product name:	Automatic cartoning bottle packing machine;
Type:	Packing Line Machine,Packaging Line;

Our Advantages

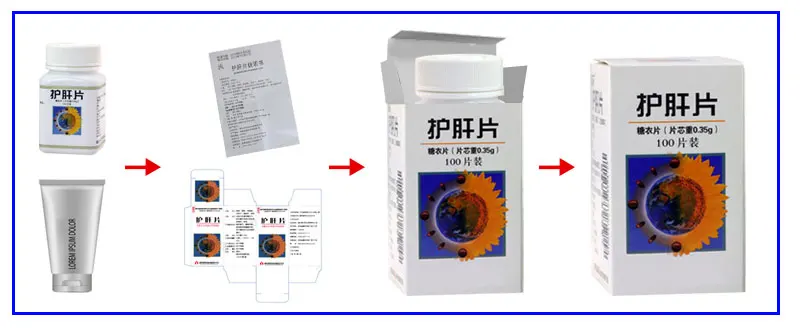

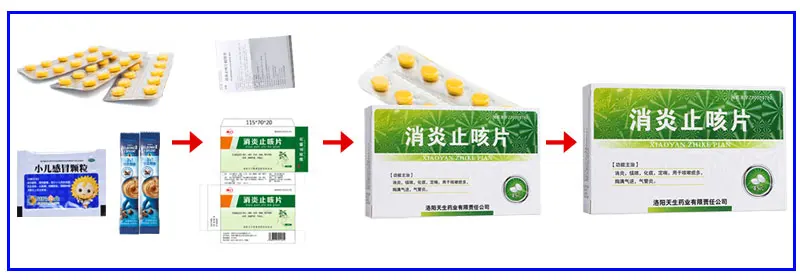

Application

Product Description

Automatic vertical cartoning packing machine high cartoning capacity can packed various products. Those materials can be pack by cartoning machine high cartoning capacity aluminum plastic plate and aluminum aluminum plate. And these machine high cartoning capacity can cartoning electronic cigarette,facial cleanser,ointment,Sealed pouch various bottled products. These type cartoning packing machine high cartoning capacity can be connected with the blister packing machine. And machines high cartoning capacity can line with three dimensional transparent film wrapping machine and strapping machine high cartoning capacity to form a production line. The automatic cartoning packing machine high cartoning capacity has strong compatibility and can pack products of various specifications on one machine. The feature of machine high cartoning capacity is High degree of automation,from feeding, suction carton, forming. And the cartoning machine high cartoning capacity has on line transmission and folding of leaflet(1-4 folds). these machine high cartoning capacity with top fold flaps,carton sealing(mechanical sealing or hot melt glue).

After-sale Provide	Engineers Available To Service Machinery Overseas
Cartoning Machine Models	120W	260W	450W
Power	0.75 Kw	5 Kw	4.5 Kw
Capacity	125 Cartons/Min	260 Cartons/Min	450 Cartons/Min
Dimension	310011001550 mm	680016001860 mm	480018002000 mm
Weight	1600 Kg	3400 Kg	5500 Kg

Spare Parts Name	Specification	Qty.	Manufacturer
Servo Motor	MHMD042G1C 400W	1	Panasonic
Servo Driver	400W MBDHT2510E	1	Panasonic
Main Motor	R57+DRE100M4 2.2KW/220V/380V	1	SEW
Vacuum Pump	40P103278	1	BECKER
Frequency Converter	FC-051P1K5S2E20H	1	Danfoss
Air Circuit Breaker	DZ47-D63 1P/3P/4P	3/2/1	Yaohua
PLC	Smart ST60	1	Siemens
Power Switch	T0-2-1/EA/SVB	1	Moeller
Relay	MY2NJ/24V	19	Omron

This automatic horizontal cartoning packing machine is especially suitable for bag and bottle products with large specifications,and it high degree of automation,from feeding,suction carton,forming,on line transmission,folding of leaflet,material testing,products and leaflet pushing into carton,printing batch number,with top fold flaps,carton sealing(mechanical sealing or hot melt glue),lack of material detection and rejection all automatically completed with improves work efficiency. This cartoning machine is fully meets of therequirements of GMP.
