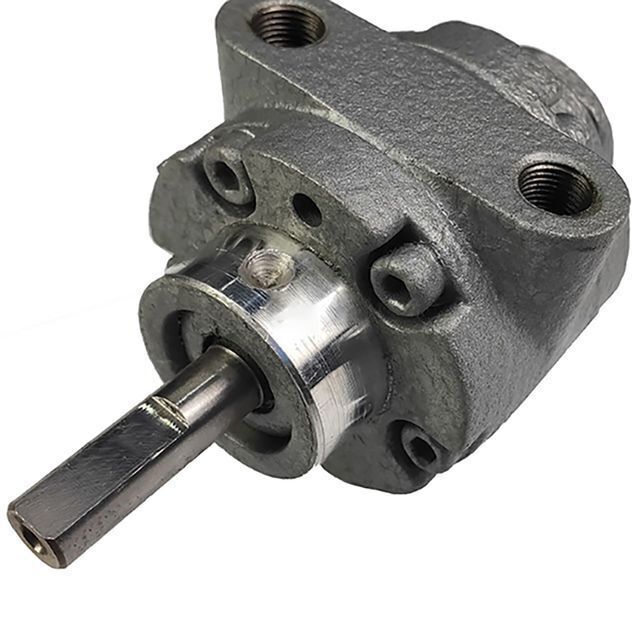

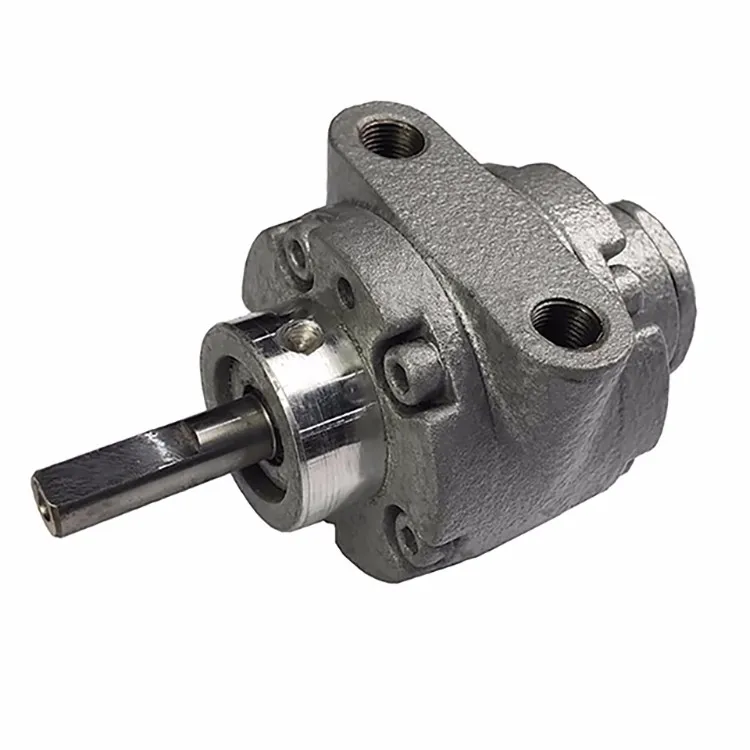

1AM Pneumatic Air Motor, Rotary compressor Pneumatic Motor High power and high speed air motor

Product details
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;Certification:ISO9001 CE,ce;
Model Number:1AM;Package Preview:;
Packaging Detail:plywood case,carton,customization;We are factory&trading company:OEM/ODM/Customization;
warranty:12 months;NET WEIGHT:0.6kg;
Warranty:1year;Packing:Plywood Cases,plastic,carton,customization;
Vanes:4/8 vanes;Gast Air motor number:1AM-NCC-12/1AM-NCW-14/1UP-NCC-1A;
Supply Ability:100 Sets per Month;Air Inlet/outlet:1/8" NPT;
Port:Shanghai;MOQ:1;
Brand Name:Hongxin;Place of Origin:Other Country;
Power:HONGXIN;
Product Description

Product Application

With compressed air as medium and make use of expansion function of it,blade air motor converts pressure energy into mechanical energy.It can be operated in tough environment which is damp,high temperature,excessive dust or other poor working environment. So it is widely used as power in mine rock drilling or loading machinery and more popular in many fields,e.g. ship,offshore platform,metallurgy,papermaking and petrochemical industries,etc.

1AM-NCC-95


Operation Data

Power
kw/hp
0.33/0.45
Torque
nm/lb.in
0.31/2.75
Rotate Speed
rpm
10000
Air Consumption
cfm
20.5

       Maximum Torque
Rotate Speed
rpm
650
Torque
nm/lb.in
0.65/5.6
Length
mm/inches
108
Width
mm/inches
62
Heighth
mm/inches
56.4
Net Weight
kg
0.6

Main Features

•Variable speed.

•Nonelectrical sparking.

•Instantly reversible.

•Cool running.

•Compact and portable.

•Minimum maintenance.

•Will not burn out.

•Low price.

•Operate in all positions.

•Low-shock starts.

•Self-sealing vanes.

Mounting flexibility.

•Four-vane or eight-vane.

•Long-life accessories.

•Wide range of applications

Our Company

About Us


Nantong HongXin Pneumatic&Electrical Technologies Co.,Ltd

Rudong Hongxin Machinery Manufacturing Co., Ltd.(Subsidiary of Nantong Powerful Pneumatic&Electrical Technologies Co.,Ltd ) was established in 2002. The factory is located in Yangkou Town, Rudong County. It covers an area of 5,600 square meters, with a factory area of 2,300 square meters,an office and a dormitory of 1,600 square meters. It (including Pawafu) has 17 patents and 3 registered trademarks.


 Established in 2002, our company located in Xinlin Industry District, Rudong, Jiangsu, China which is around 200km far from Shanghai.


 With 5, 88 million registered capital, our plant covers an area of 56,000 square meters and possesses all sorts of CNC (computer numerical control) detection and processing equipments. And we are honorable to be here with more than one hundred people including skilled workers, R&D staffs and administrators.The quality of our products originates from all staffs' love of their work,scientific management of process flow and the observance of "customer centric" tenet

Under ISO9001 quality management system, our company is specialized in development and production in the pneumatic fluid equipment, has sequentially exploited the leading products of pneumatic explosion proof series both home and abroad, such as air motor, air winch, air mixer, air hoist, air fan, air explosion proof lamp, etc.

All of the air products series have been widely used and approved in ship, offshore platform, oil drilling, mine, etc which are very popular in North America, Southeast Asia, Europe etc. e,g. GRAINGER,AUTUANT,HENNESSY,IMI,NEPTUNE.


International Distributor


USA, Canada, Italy, Dubai, Singapore, India, Korea, Thailand, Indonesia, Mexico, Puerto Rico, Brazil, Colombia, Peru, Chile, Argentina, New Zealand, Australia, Malaysia, Brunei, France, Japan, South Africa, Vietnam, Sri Lanka , Pakistan, Russia, Kazakhstan, Iran, Turkey, Romania, Greece, Egypt, Spain, Portugal, United Kingdom, Germany, Poland, Sweden, Finland, Denmark, Luxembourg, Nigeria, Norway, Jordan, United Arab Emirates, Qatar, Kuwait etc.


Why choose us?

1. We are a factory, focusing on pneumatic technology for 16 years;
2. We have export capabilities and have cooperated with well-known companies such as Gu'an Jie, practical power, Hannes, IMI, etc.;
3. We can OEM, such as Dayton, Speedaire, Herculas, etc.;
Small batch, customized, personalized products, popular;


Certifications
Application

Particularly fast in thin sheet

For sheet thicknesses from 0.04-0.5 in., the DALILaser 2030 fiber makes the most of all of its strengths. It works especially quickly in this range, and exploits the productivity benefits of the solid-state laser compared to CO2 lasers.

Laser-cut vehicle rear seat

The openings and the trimming of the deep-drawn component are created using the DALILaser Cell Series 7000. Especially for small quantities, processing with conventional punching tools is often too expensive.

Precise and fast laser cutting

Compared to alternative processes, such as milling, the DALiLaser Cell Series 7000 offers a cost-effective alternative for complex components. The machine laser cuts all the outer contours and creates the through holes.

FAQ

1. Are you a factory or a trading company?

 We are a factory and has been built for 17 years.

2. Is there a MOQ (minimum order quantity)?

No, small batch or sample orders are also available.

3. Is it possible to OEM?

 Yes, but please provide a brand authorization.


4. Frequently asked questions about specific products:

 air motor, normal working pressure, lifetime, whether muffler is included, 4 blades or 8 blades are optional, CW ,CCW or reversible..

Our Service

Thoughtful after-sales service


Free customer service within 12 hours of response, 24 hours to provide solutions;
1 year warranty period, maintenance parts free of charge, free transport;
Ensure the supply of maintenance spare parts;
According to customer requirements, the use of technical guidance;
Install and debug products for customers;
Provide regular telephone return visit for customers;
Handle customer letters, visits and telephone complaints, answer customer inquiries;
Collect customers' opinions on product quality in various ways, and make timely improvement according to the situation;
If the second sale is not affected, free exchange within 7 days;
Lifetime maintenance costs only;


Packing & Delivery
Packaging
Size
108(L) * 62 (W) * 56.4(H)
Weight
1kg



Packaging Details
1 plywood case per set.

2 we will pack it according to customers special request.
