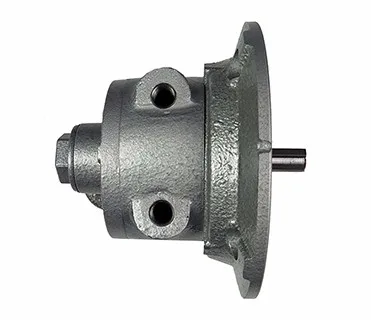

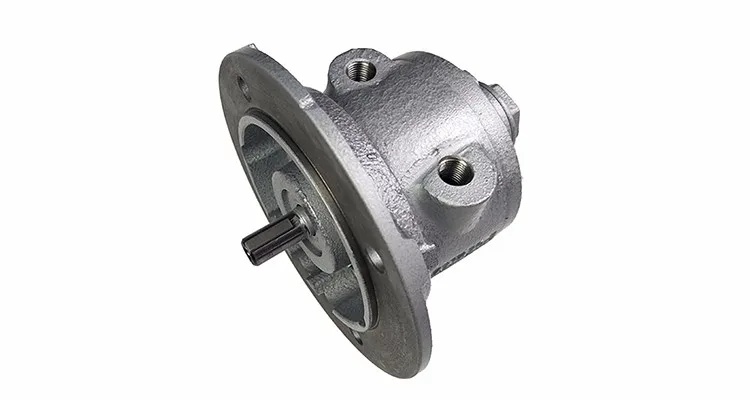

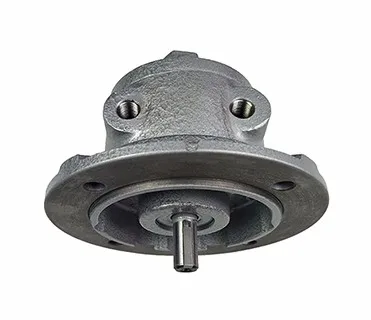

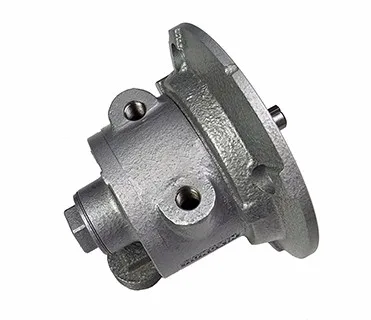

HX4AM-F110 1.7hp/1.3kW IEC Flange Vane Air Motor

Supplier: Rudong Hongxin Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Lynn Zhang
Price: $180.00 /set
Min. Order: 1 set

Click here to contact

Product details

Speed@Max. Torque:	300rpm;	Air Consumption:	78cfm;
Single package size:	18X18X18 cm;	Power:	1.70hp/1.3kW;
Speed@Max. Power:	3000rpm;	Brand Name:	HONGXIN;
Vanes:	4 or 8 vanes available;	N.W.:	4.9kg;
Selling Units:	Single item;	Place of Origin:	Jiangsu China;
Port Size:	NPT 1/4;	Certificate:	CE Certificate;
Package Preview:	;	Packaging Detail:	foam cartoon, polywood case;
Rotaion:	REV;	Max. Torque:	6.3Nm/56.00lb.in;
Single gross weight:	6.0 KG;

Product Description

Product Application

With compressed air as medium and make use of expansion function of it, blade air motor converts pressure energy into mechanical energy.

It can be operated in tough environment which is damp, high temperature, excessive dust or other poor working environment.

So it is widely used as power in mine rock drilling or loading machinery and more popular in many fields, e.g. ship, offshore platform,metallurgy,papermaking and petrochemical industries, etc.

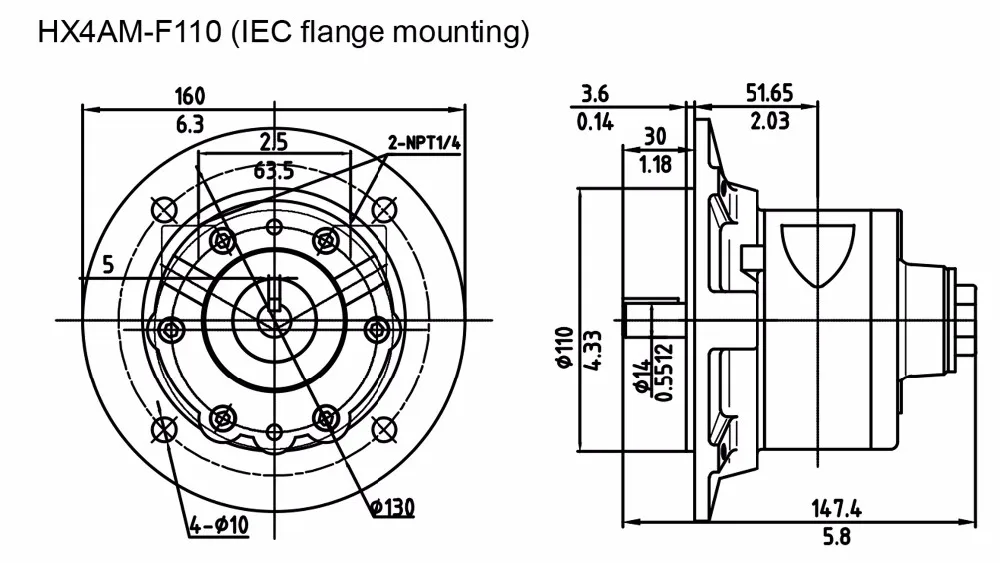

HX4AM-F110
Operation Date at Max. Power	Power	hp/kW	1.70/1.30
	Torque	Nm/Ib.in	4.10/36.00
	Rotate Speed	rpm	3000
	Air Consumption	m³/h	132.5
	Air Consumption	cfm	78
Maximum Torque	Rotate Speed	rpm	300
Maximum Torque	Torque	Nm/Ib.in	6.3/56.00

Detailed Images

Main Features

•Variable speed.
•Nonelectrical sparking.
•Instantly reversible.
•Cool running.
•Compact and portable.
•Minimum maintenance.
•Will not burn out.
•Low price.
•Operate in all positions.
•Low-shock starts.
•Self-sealing vanes.
•Long-life accessories.
•Wide range of applications

Packing & Delivery

Packaging
Size	180(L) * 180(W) *180(H)mm
Weight	6kg
Packaging Details	Plywood case Plywood is a material manufactured from thin layers or plies of wood veneer that are glued together with adjacent layers.It is an engineered wood from the family of manufactured boards which includes medium-density fibreboard (MDF) and particle board (chipboard).
