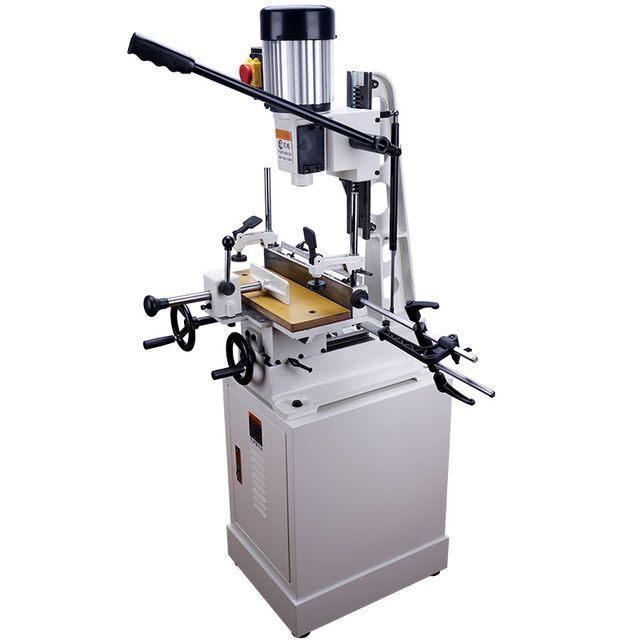

1500Wmortising machine for woodworking hollow chisel mortising machine for sale
- 600.00 1 - 2 sets
- 580.00 >=3 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Key Selling Points: | Easy to Operate; | Place of Origin: | China; |
| Showroom Location: | None; | Motor Speed: | 2800rpm; |
| Condition: | New; | Supply Ability: | 3000 Set/Sets per Month; |
| Voltage: | 220v; | Local Service Location: | None; |
| Machinery Test Report: | Not Available; | Name: | Door Lock Mortising Machine; |
| After Warranty Service: | Video technical support,Online support; | Core Components: | Engine; |
| Automatic Grade: | Semi-automatic; | Color: | Silver grey; |
| Drill Diameter: | 6-15mm; | Warranty: | Other; |
| Dimension(L*W*H): | 480*380*1500mm; | Power: | 1500W; |
| Application: | woodworking drilling; | Packaging Detail: | wooden box package; |
| Applicable Industries: | Building Material Shops,Machinery Repair Shops,Food & Beverage Factory,Farms,Home Use,Construction works ,OTHER; | Video outgoing-inspection: | Not Available; |
| Warranty of core components: | 1 Year; | Brand Name: | Tongchen; |
| Port: | Shanghai; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Marketing Type: | Ordinary Product; |

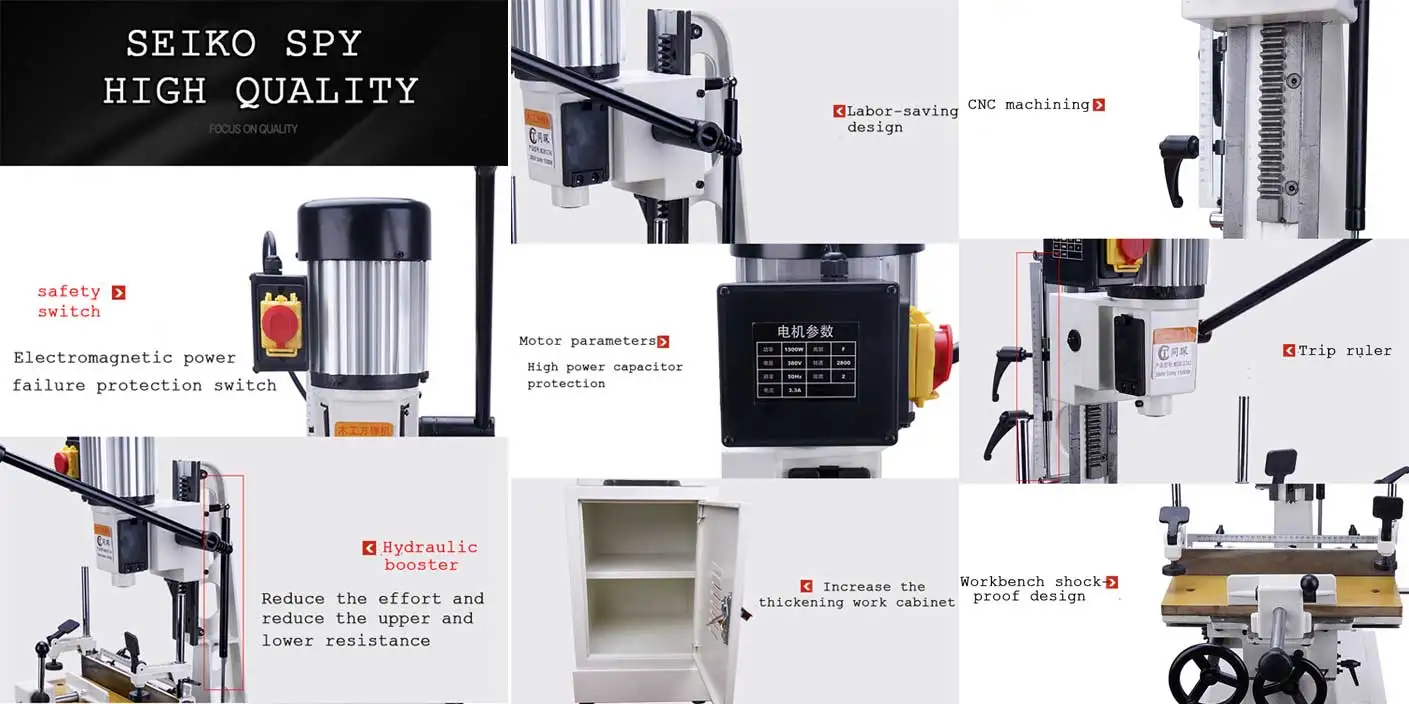

Product Description
|
Motor power |
1500W |
Rotate speed |
2800rpm |
|
Tenon knife |
16mm |
The size of drill |
6.0-15mm |
|
Diameter of the cutting tools |
20mm |
Drill chuck |
3-16mm |
|
Clamping range |
145mm |
Vertical working stroke |
320mm |
|
Left and right working stroke |
175mm |
Baffle size |
400*350mm |
|
Travel of spindle |
320mm |
Max clamping width |
145mm |
|
Drill stroke |
190mm |
Left and right stroke |
175mm |
|
Drilling depth |
76mm |
Before and after stroke |
150mm |
|
Work table size |
400*148mm |
Height |
1500mm |
|
Pillar size |
88*15*480mm |
Pedestal size |
380*480*580mm |
|
Net weight |
110/119kg |
Packing size |
560*480*830mm |
