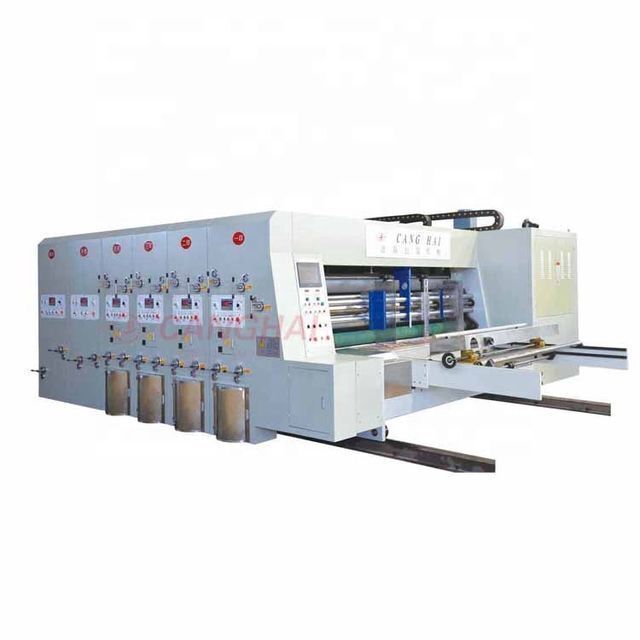

Canghai Full Automatic high Speed flexo printer slotter die cutting Carton printing machinery

Supplier: Dongguang Canghai Packing Machine Co., Ltd.
Region: Hebei, China
Contact: Mr Binghai
Price: $6000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom Location:	Egypt;	Warranty:	1 Year;
K2:	printing machinery;	Supply Ability:	1 Set/Sets per Month;
After Warranty Service:	Video technical support,Online support;	Port:	Tianjin,Xingang,China;
Packaging Material:	corrugated paper;	After-sales Service Provided:	Free spare parts,Online support;
Product name:	corrugated rotary die-cutter machine;	Type:	Packing Machine,new;
Marketing Type:	New Product 2020;	Packaging Detail:	wooden case for Canghai Full Automatic high Speed flexo printer slotter die cutting Carton printing machinery;
K1:	flexo printer slotter die cut;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
speed:	as requested;	Key Selling Points:	Long Service Life;
Warranty of core components:	1 Year;	Local Service Location:	Egypt;
Machinery Test Report:	Provided;	Weight (KG):	20000;
Video outgoing-inspection:	Provided;	Core Components:	PLC;
Applicable Industries:	Manufacturing Plant;	working:	creasing and die-cutting;
K3:	flexo printer slotter die cutting Carton printing machinery;	the thinckness of fram:	as requested;

Canghai Full Automatic high Speed flexo printer slotter die cutting Carton printing machinery

Product Description

This machine adopts vacuum adsorption help carrying paper ,PLC touch screen control system.Man-machine conversation,The main machine with frequency conversion motor.360 phase adjustment controlled by microcomputer,The speed of glue rolls automatically giving.At the same time,it set up the computer program and glue case reparied equipment,feed accruracy less than 0.5mm,it has many good characteristics such as slicing high precision,high speed,operating easy and so on.

1.Computerized control,automatic adjustment.

2.Precise planet-geared phase adjustment device.

3.Anvil roll can be motorized adjust in circumferential & traversal;direction to prolong its usage life.

4.Quick change over rubber anvil,good wear-ability.

5.Speed difference compensation system make line speed be synchronization,it can ensure die-cutting precise.

6.Through repair anvil roll by special device,anvil roll can be product cost down.

Specification

Main technical parameter

name	Unit	ZYKM-1630 type
Max paper coverage area	mm	1660*3200mm
Skip feed paper size	mm	2000*3200mm
Effective printing area	mm	1600*3000
Min feeding size	mm	400*750mm
Printing cardboard thickness	mm	7.2
Machinable cardboard thickness	layers	3,5
Max speed	Pieces/min	140
Economy speed	Pieces/min	100~120
Topping precision (four color)	mm	±0.5
Slotting precision	mm	±1.5
Cutting precision	mm	±1.5
Frequency conversion power of main motor	kw	7.5—18.5
Shape size(lengthwidthhigh)	mm	5000mm3500mm2500mm

Paper feeding unit

Lead edge feeder system, inverter adjust air volume, feeding in precision and steady.
Double feeding roller model, quick replacement mechanism for the first feeding rubber roller, with spring adjustment function, it can prevent distortion and to ensure accurate feeding of cardboard.
Brushes and suction device remove dust from board surface.
Touch screen displays production speed and quantity.
Adjust the feed interval by manual.

Die cutting unit

Die cut unit roller adopt high quality steel, plated with rigid chrome. high precision dynamic and static balance increase running stable.
Mould roller and rubber roller can auto separate by cylinder eccentric device when the machine don’t die cut, this can lighten machine load and increase rubber roller and die knife life.
Matching with feeding system, it with auto up and down device, the rubber roller will down when feeding paper. The rubber roller will up when stop feeding paper. To make sure every paper die cut correctly.
The mechanical transmission rubber roller move 58mm in left and right side. It also with wear and tear regular could increase the life of rubber roller.
Die cut phase adopt PLC touch screen, 360 degree adjust electric number.
Machine with rubber amend device, the rubber roller can be used after many times amend.
Free die mould slotting unit, no need to make the die mould when making normal box, saving cost and improved efficiency. (optional )
