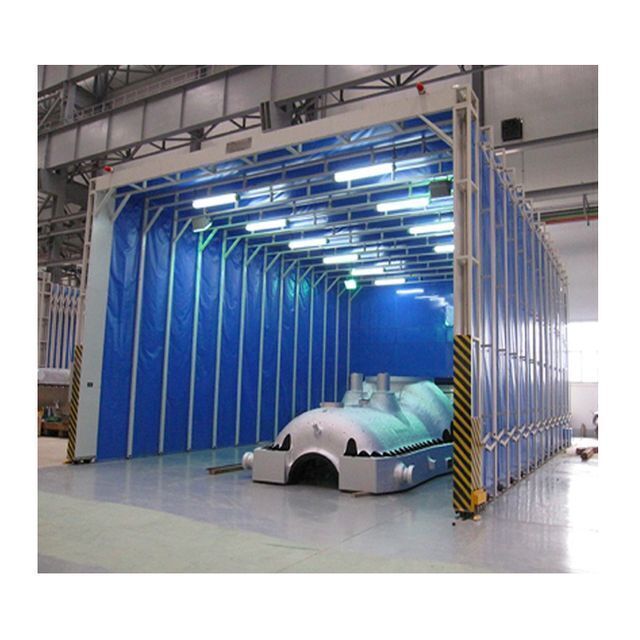

CE certified mobile collapsible retractable spray paint booth for Large parts

Supplier: Shandong Yahui Machinery Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Mr Willing Mei
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product Keywords:	Container Paint Booth;	Usage:	Equipment of Spray Paint;
Warranty:	12 Months,1 year warranty;	Keywords:	Spary Booth;
Type:	Spray Booths;	Brand Name:	YAHUI;
Payment Terms:	L/C,Western Union,T/T,MoneyGram;	Internal Size:	as required;
Noise:	Noise < 80 Db;	Optional Accessories:	Accept;
Lighting System:	LED Light;	Voltage:	380v/3ph/50hz,380v/3phase/50hz;
Model Number:	YH-03;	Product Name:	retractable spray booth;
Packaging Detail:	Standard export packing, 1 set/20GP; 2 sets/40HQ.;	Power:	15KW;
Place of Origin:	Shandong China;	External Size:	as required;
Certification:	ce;	Package Preview:	;
Color:	According to customer requirements;	No Load Speed:	0.35m/s;
Disc Dia.:	Standard;

Collapsible / inflatable / retractable mobile spray paint booth for Large parts

→Accept custom products

PRODUCT PARAMETER

Retractable painting booth is a special booth device which can be spread as enclosed or semi-enclosed working room when painting, while it can also be retracted to save footprint when not painting.
For large and heavy work-piece that is difficult to be conveyed, retractable spray booth is a good choice to solve this problem. It can greatly simplify the production process of using cranes to convey large and heavy work-pieces back and forth. Its dimensions can be adjusted according to the work-piece sizes, which helps fully utilize the production site and operation areas.

Size	850040004000mm(LWH)
Cabin Structure	Retractable gantry structure,each gantry structure has 2 pieces of mecanum wheels. Fireproof PVC soft curtain on 2 sides,rear side and ceiling of cabin. With air extraction box at the rear. Special guide rails on both sides for the retractable steel structureto move,both sides are driven together and they are interiocked,with safety l imit control ar the front and the back.
Entrance door	Electric roller shutter
Filtration system	Optional.
Exhaust filter	Optional
Lighting system	LED lights.
Intake system	Nature air intake.
Exhaust system	Optional.
Power & motor description	7.5KW.970rpm,380V,50hz
Empty loaded air speed	0.3m/s
Noise	<86db
Ductwork	With 5 pieces of straight ducting
Control System	Standard

Advantages Of Retractable Painting Booth
1.	Nylon fiber mat,durable,non-deformable,waterproof and anti-corrosion,anti-exposure.
2.	Double-side double motor,equipped with reducer,smooth expansion and contraction.
3.	Interior equipped with water curtain carbinet,effectively purify paint mist.
4.	The use of high-quality square steel pipe expansion joints,strong bearing capacity,structural stability
5.	Size.color can be customized
6.	Explosion-proof lighting system
7.	Voltmeter.push button switch,emergency stop,multiple circuit protection.

PRODUCT DESCRIPTION

Details of retractable spray booth

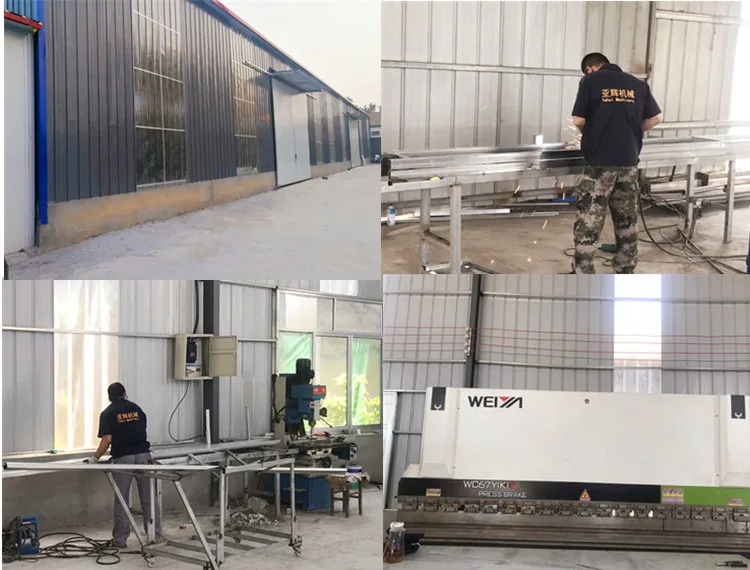

Company Overview

Shandong Yahui Mahinery Manufacturing Co.,Ltd

We are specialized in auto garage spray booth,which have more than 10 years experience.Our products are passed CE and CCC certification,with high quality and competitive price.

In addition, we will solve all possible problems during customer installation during the production process. Such as:cabinet installtion, pre-install the door, basement and etc.Help customers save time and effort.

For us, quality of service doesn’t end with the received goods. We We will track the whole process.Choose us we can work together and make your business more profitable.

We have sold to USA, EU countries, such as Finland, and some Middle Eastern countries and Saudi Arabia etc. With CE certification and CCC certification. Welcome to contact us know more details!

Packaging&Shipping
