VankCut-1390 European Standard 150W CO2 laser cutting engraving machine

Supplier: Anhui Codos Laser Technology Development Co., Ltd.
Region: Anhui, China
Contact: Mr Victor Xi
Price: $2650.00 / 1 - 1 sets
$2630.00 / 2 - 2 sets
$2600.00 / 3 - 3 sets
$2570.00 / >=4 sets
Min. Order: 1 set

Click here to contact

Product details

Controller:	RUIDA RCD6445G;	Cooling system:	Water Cooling System;
Showroom Location:	Egypt,United Kingdom,Italy,Viet Nam,Peru,India,Mexico,Russia,Spain,Thailand,Morocco,Argentina,South Korea,Chile,Colombia,Romania,Nigeria;	Certification:	ce,ISO,GS,Sgs;
Single gross weight:	20.0 KG;	Cutting Speed:	0-60000mm/s;
Key Selling Points:	Long Service Life;	Engraving Speed:	0-60000mm/min;
Laser Type:	CO2;	Machinery Test Report:	Provided;
After-sales Service Provided:	Online support,Video technical support;	CNC or Not:	Yes;
Cutting Area:	1300x900mm;	Guiderail Brand:	TAIWAN CSK;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company,All non metal materiales laser cutting engraving;	Single package size:	30X40X40 cm;
Video outgoing-inspection:	Provided;	Applicable Material:	Acrylic,Glass,Leather,MDF,Paper,Plastic,Plexiglax,Plywood,Rubber,Stone,Wood,Crystal,fabric;
Place of Origin:	Anhui China;	Control System Brand:	RUIDA rdworks;
Driving system:	Belt transmission;	Core Components:	Motor,Bearing,Pump;
Key words:	CO2 Laser Cuttting Machine;	Weight (KG):	500;
Packaging Detail:	careful wood case;	Graphic Format Supported:	AI,PLT,DXF,BMP,Dst,Dwg,LAS,DXP;
Positioning Accuracy:	0.001mm;	Max cutting speed:	35m/min;
Local Service Location:	Egypt,United Kingdom,Italy,Viet Nam,Peru,India,Mexico,Russia,Spain,Thailand,Japan,Australia,Argentina,South Korea,Chile,Colombia,Romania,Nigeria;	Control Software:	CNC control panel;
Cutting materials:	Acrylic Wood Mdf Plywood Plactical;	Selling Units:	Single item;
Warranty of core components:	1 Year;	Marketing Type:	New Product 2020;
Brand Name:	Vank;	Condition:	New;
Function:	Engraving Cutting Nonmetal Materials;	Servo Motor Brand:	Leadshine;
After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;	Cooling Mode:	WATER COOLING;
Laser Source Brand:	RECI/CDWG/EFR/YONGLI;	Optical Lens Brand:	II-VI;
Cutting Thickness:	0-30mm;	Application:	LASER CUTTING;
Package Preview:	;	Compatible software:	Coreldraw Auto CAD Photoshop;
Warranty:	2 years;

VankCut Series

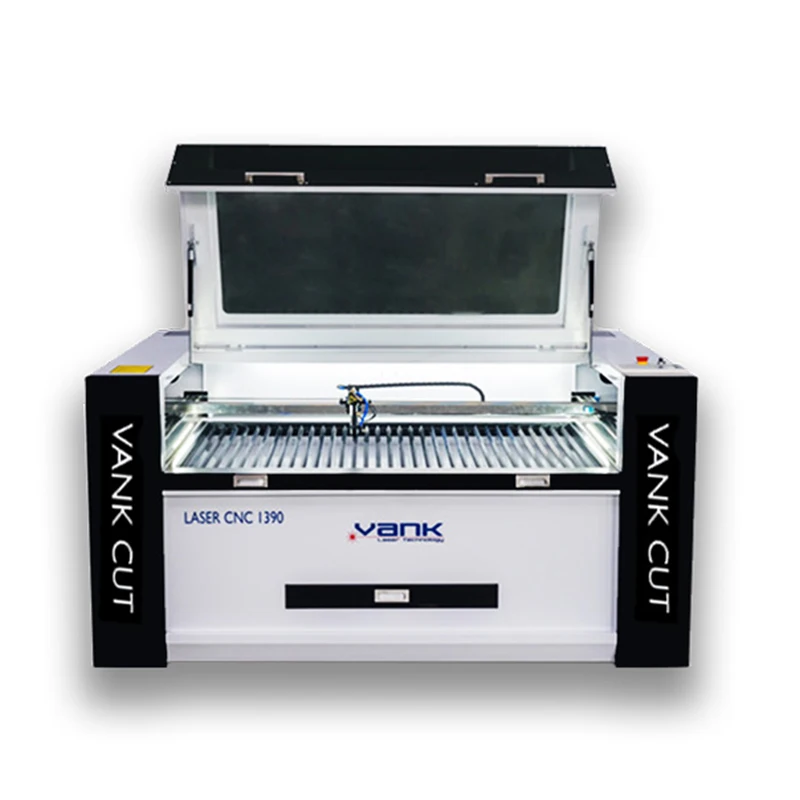

CO2 laser engraving cutting machine 150W VankCut-1390

1. Cutting engraving table size 1300x900mm

2. Glass CO2 Laser tube

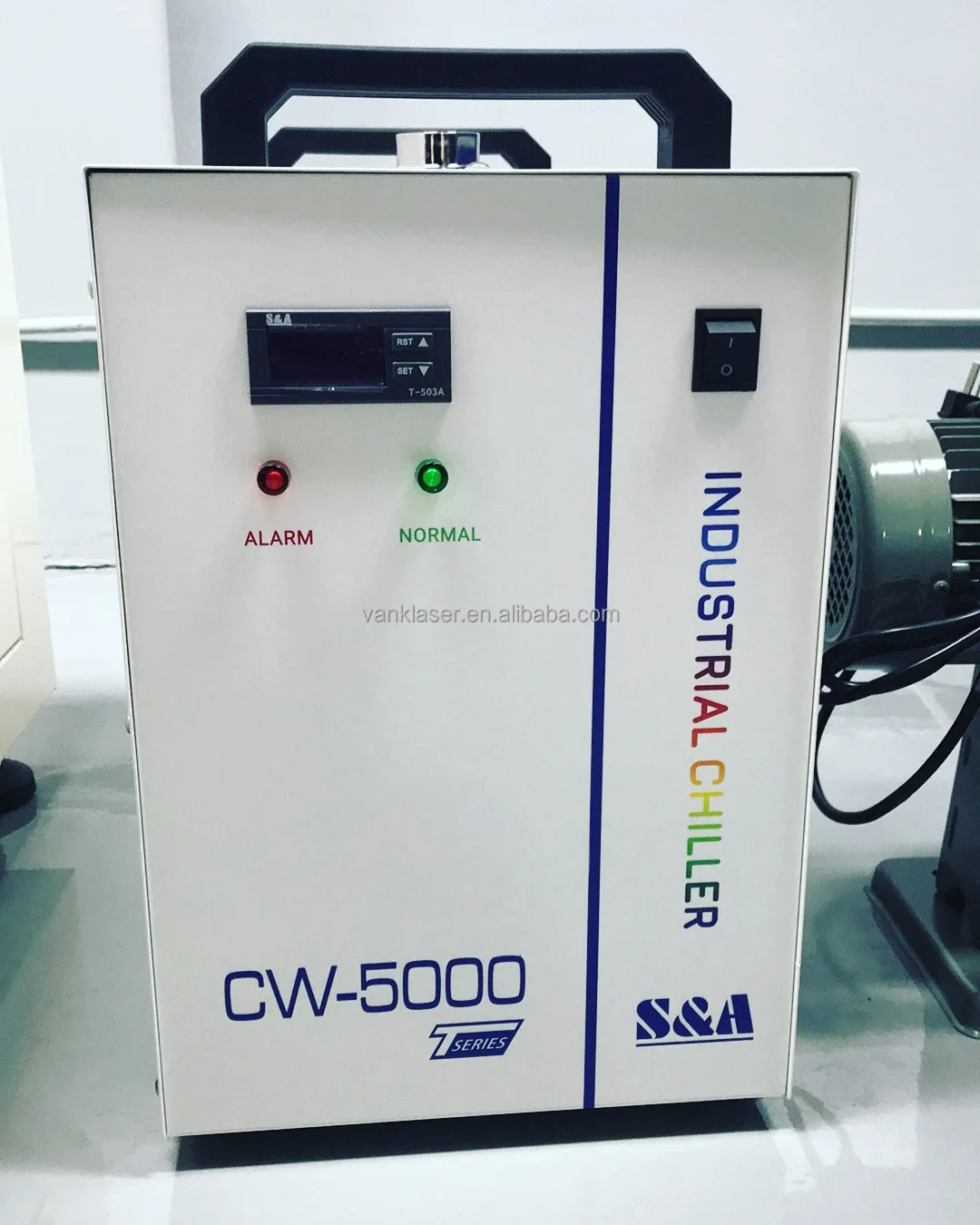

3. Water chiller

4. Ruida rdworks cnc controller

5.Knife table/honeycomb table

6. Inner rail guide from taiwan

7.Japan Omron limite swtich

8.Water cut off protections sensor

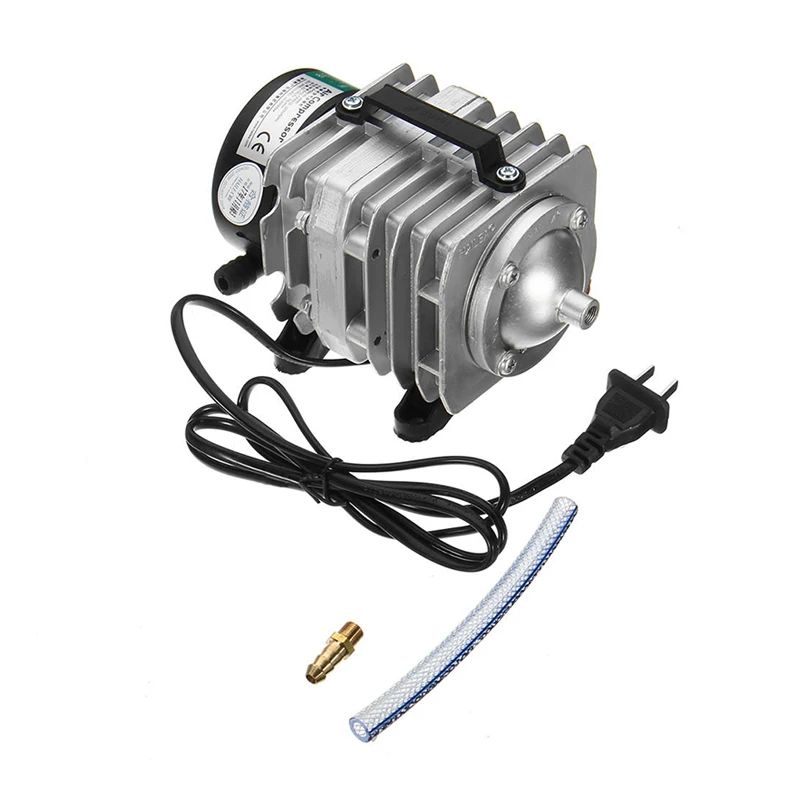

9. Air compressor

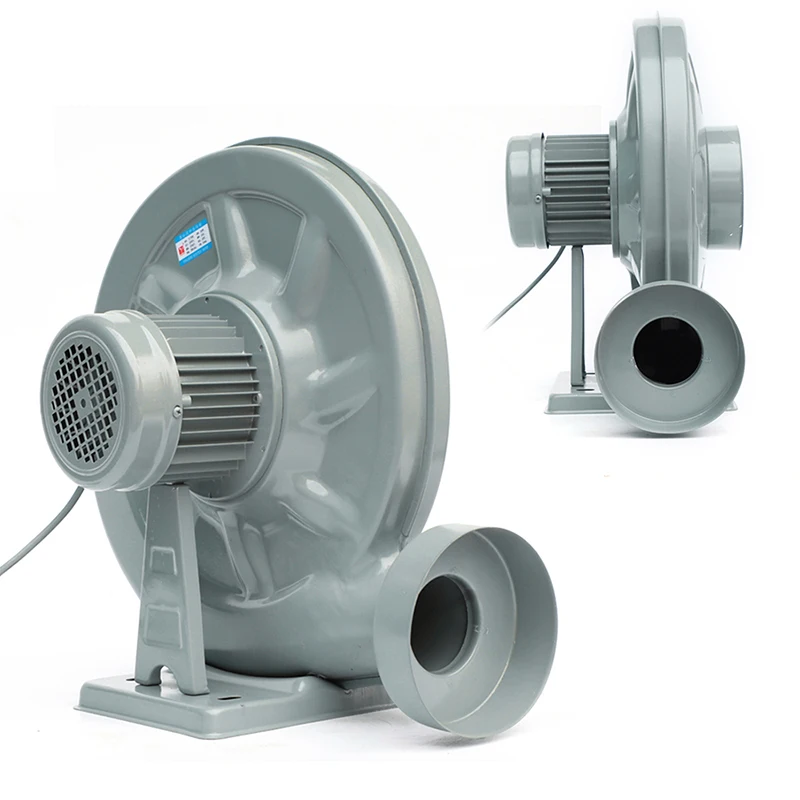

10. Exhaust fan

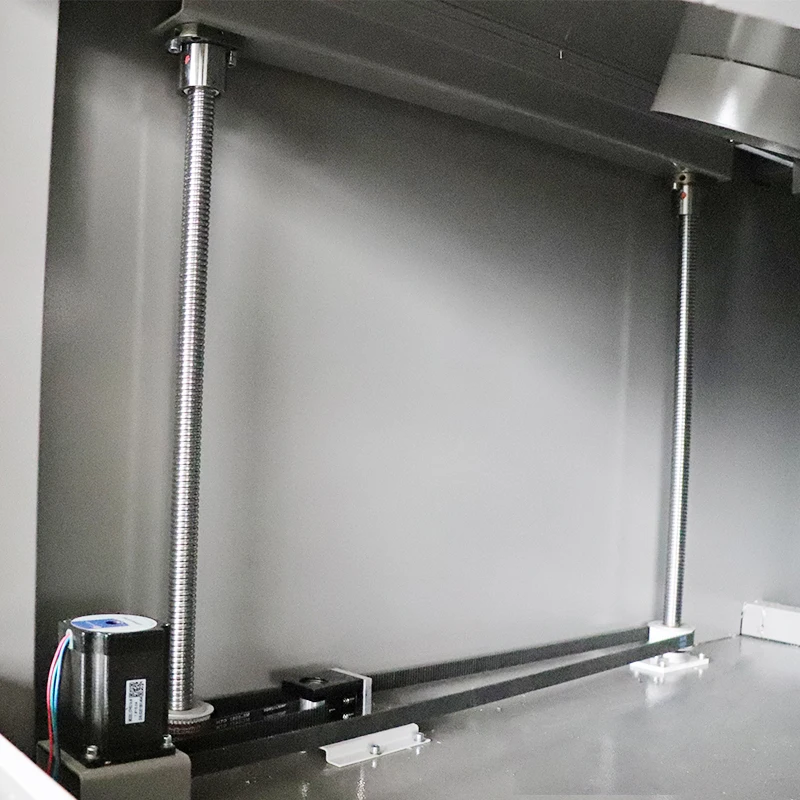

11. Up down table(optional)

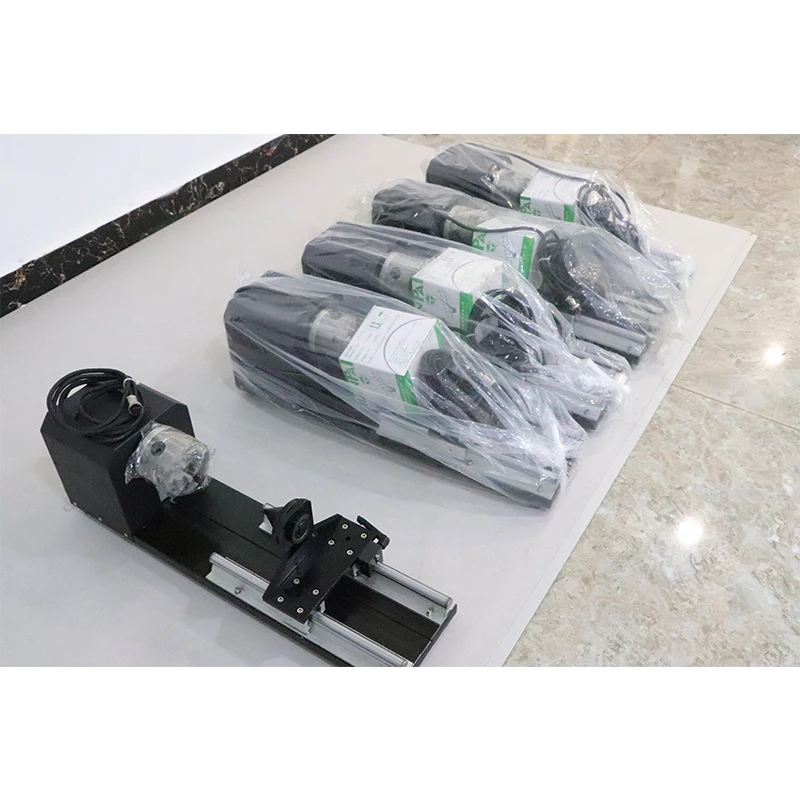

12. Rotary device (optional)

Materials	Engrave	Cut	Materials	Engrave	Cut
Wood	✔	✔	Wood Veneer	✔	✔
Acrylic	✔	✔	Fiberglass	✔	✔
Cloth	✔	✔	Plastic	✔	✔
Leather	✔	✔	Cork	✔	✔
Paper	✔	✔	Corian	✔	✔
Delrin	✔	✔	Marble	✔
Mat Board	✔	✔	Anodized Aluminum	✔
Melamine	✔	✔	Painted Metals	✔
Mylar	✔	✔	Tile	✔
Pressboard	✔	✔	Glass	✔
Rubber	✔	✔	Coated Metals	✔
Twill	✔	✔	Ceramics	✔

	60W	80W	100W	130W	150W
Wood	5.5 mm	8.5 mm	10.5 mm	11.5 mm	13.5 mm
Plywood	4.5 mm	8.5 mm	10.5 mm	11.5 mm	13.5 mm
Leather	2.5 mm	3.5 mm	4.5 mm	5.5 mm	6.5 mm
Acrylic	9 mm	13 mm	17 mm	20 mm	23 mm
PVC	2.5 mm	3.5 mm	4.5 mm	5.5 mm	6.5 mm
Pleixglass	3.5 mm	7.5 mm	9.5 mm	11.5 mm	14.5 mm
Plastic	1.5 mm	2.5 mm	3.5 mm	4.5 mm	5.5 mm
Rubber	1.5 mm	2.5 mm	3.5 mm	4.5 mm	5.5 mm
Fabric	1.5 mm	2.5 mm	3.5 mm	4.5 mm	6.5 mm
Bamboo	1.5 mm	2.5 mm	3.5 mm	4.5 mm	5.5 mm
Paper	0.5-5.5mm

Detailed Image

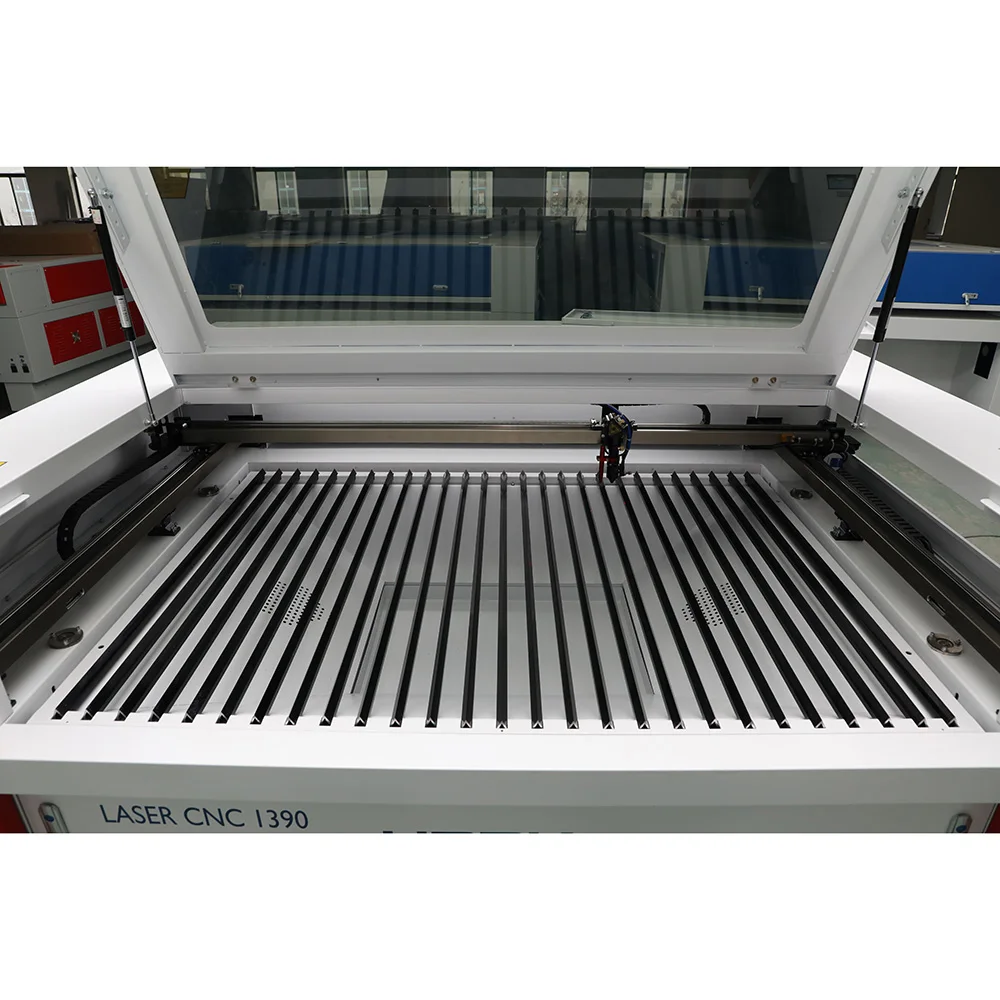

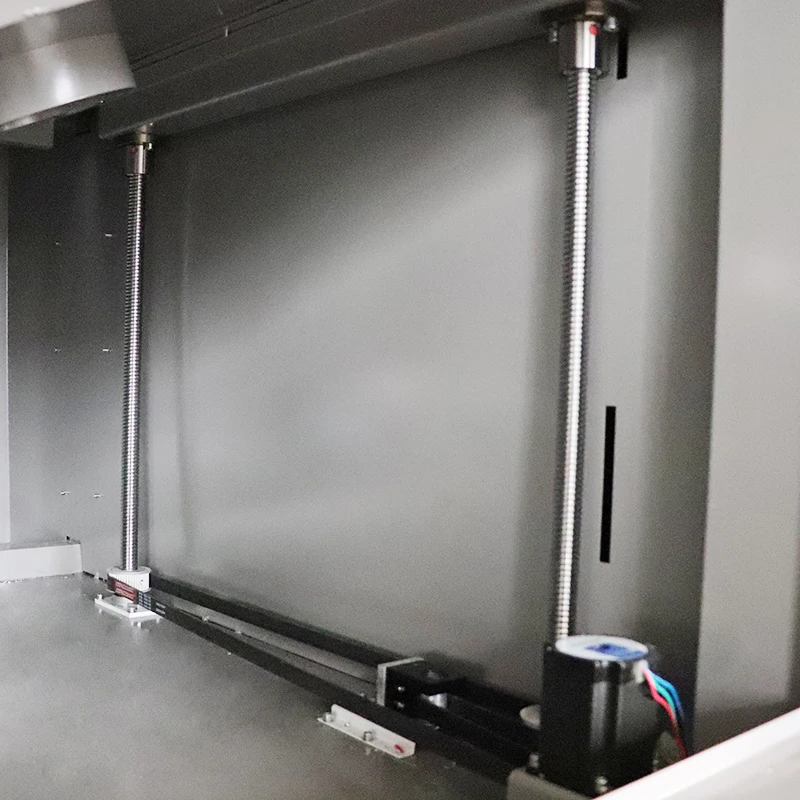

The machine has high quality working table and heavy weight, the stability of the machine has been improve.

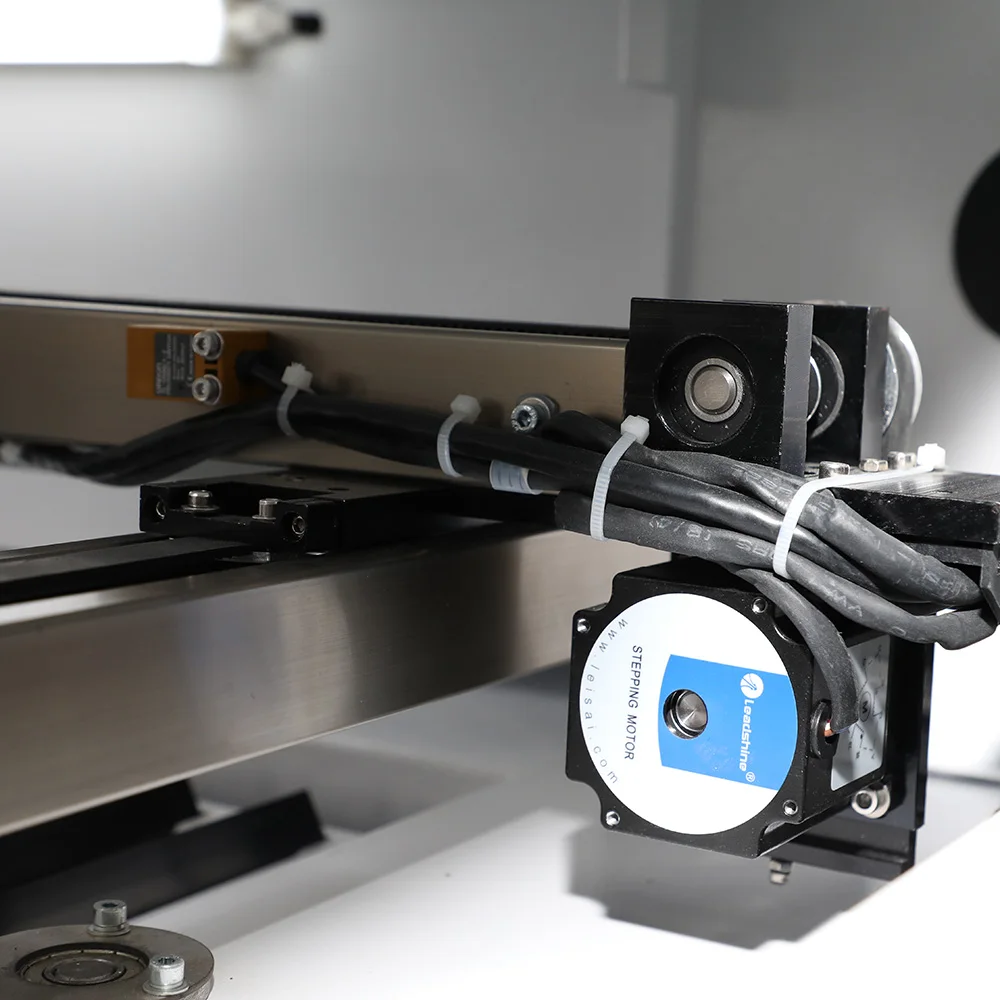

Leashine three steep motor has high speed,and ensure the precision on the machine.

Auto-focus help you more convenient to find the best suitable focal length. Your time will be saved.

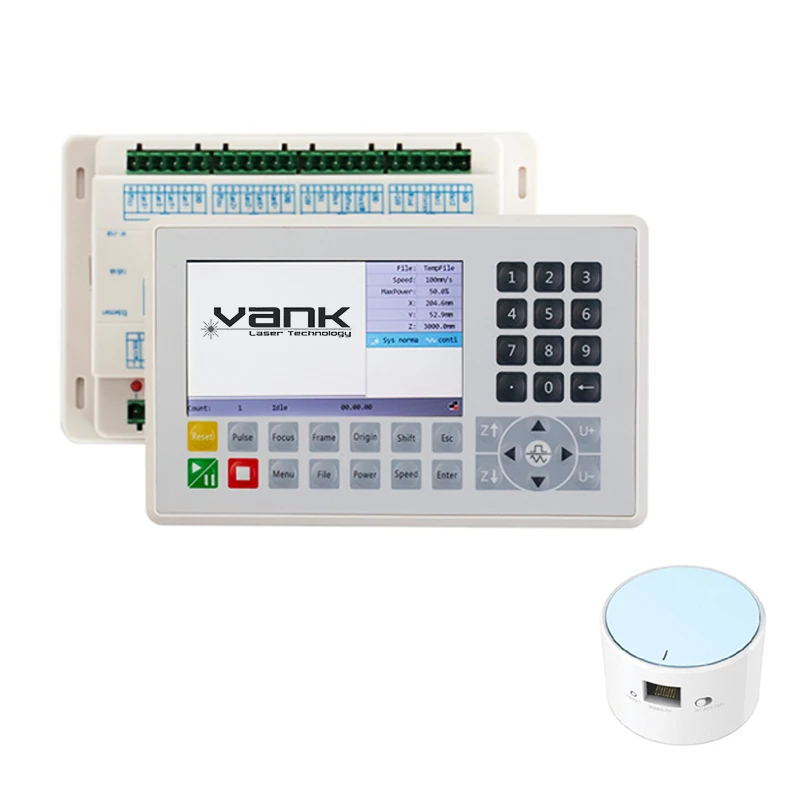

Rdworks control panel easy to use.

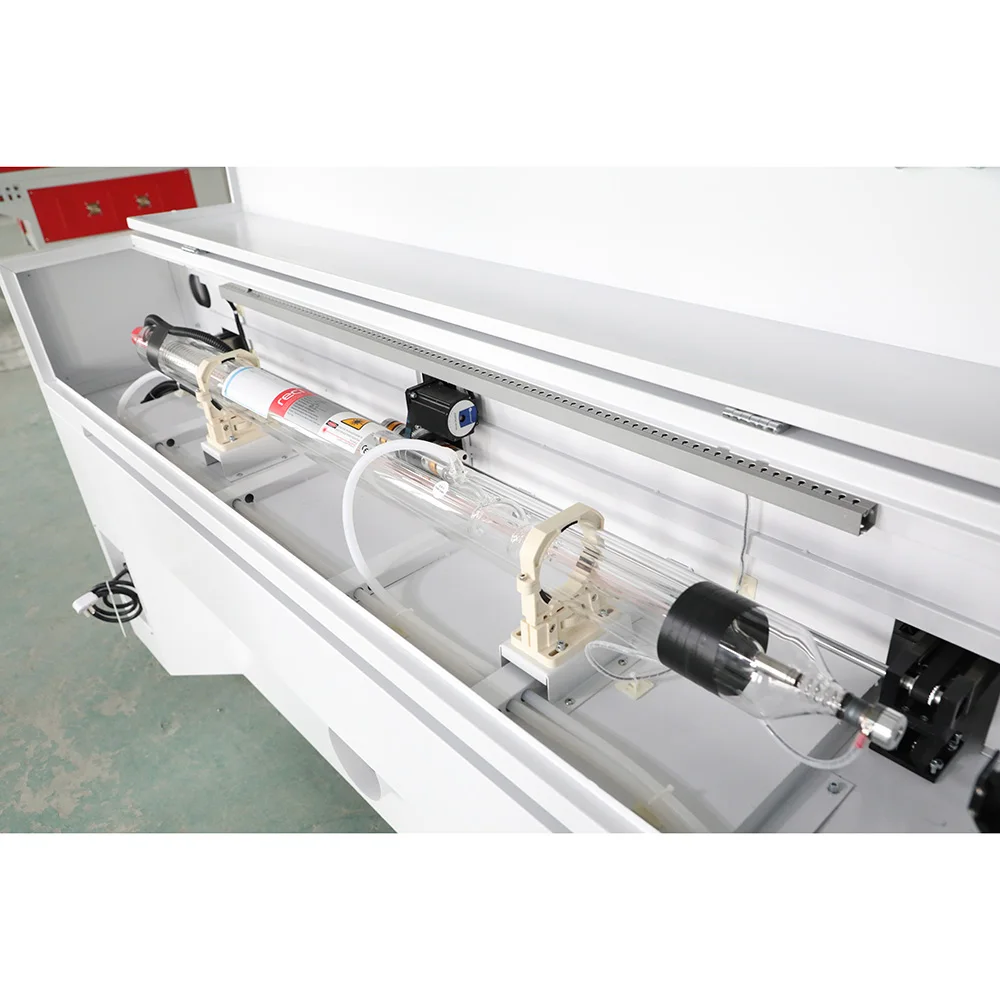

We use high quality laser tube ,Reci /EFR /Weiju brand optioal. And plastic rack protect laser tube

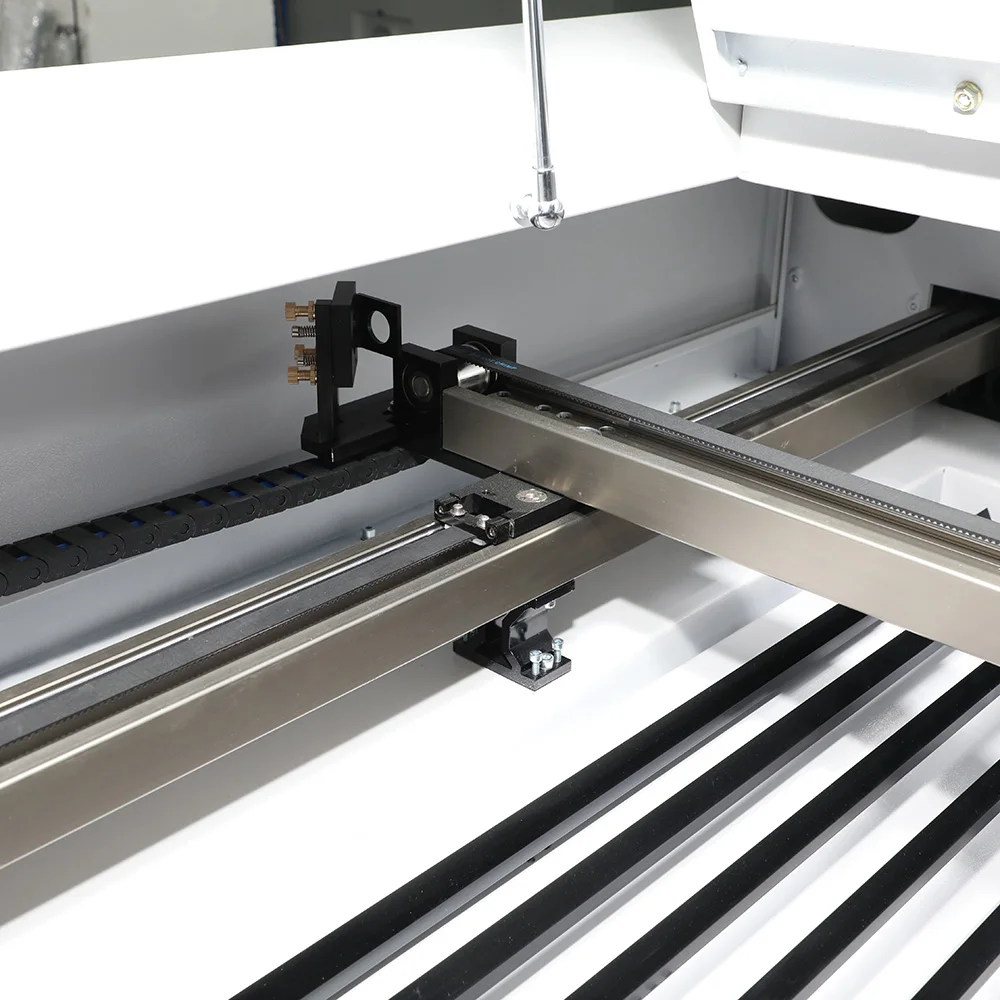

Wider and heavier guide improve machine working precision and extended service years.

High QUALITY ADVANCED EQUIPMENT

We make the high quality advanced machines,we are providing the best after-sale service in China.
And we are also offering the most competitive price to all of the customers."VANK" is known by more and more people.

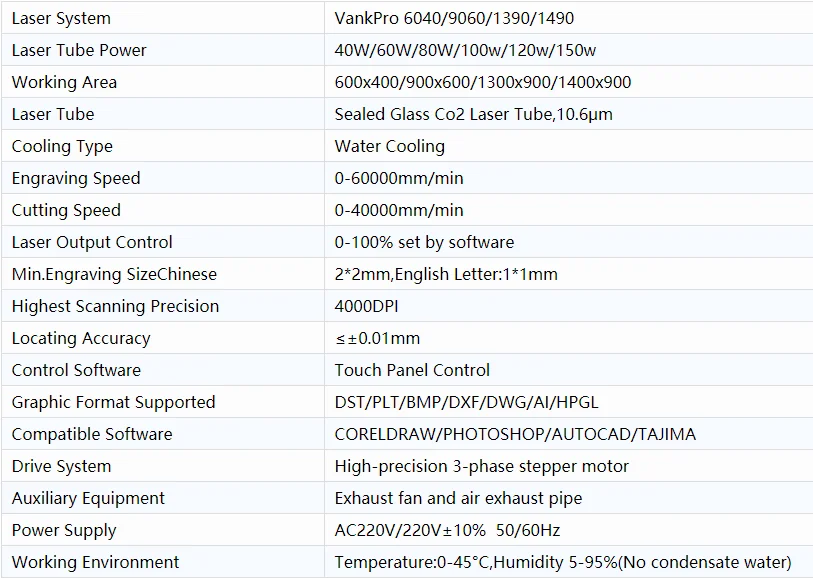

Product Parameters

Product Process

About Us

Anhui Codos Laser Technology Development Co., Ltd. is a high-tech enterprise with years of experience in R&D, production, sales and technical maintenance in the laser equipment industry. With the professional laser technology as the backing, the company constantly absorbs advanced technology and design concept, and produces and sells laser equipment suitable for various industrial automation production needs.

FAQ

1.Q:Why should you choose us?
A:If you choose us, you will get best quality,best service,best price,best warranty.

2.Q:I'm not familiar with the machine.
A:You just need to tell us materials, working size and thickness.I will recommend you the right machine.

3:How to operate the machine
A:We will deliver English manual and video with the machine to you.If you still need our help,please contact us.

4.Q:How can I get the sample to check you quality ?
A:If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.

5.Q:Do the machine can be customized according my requirements?
A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.

6.Q:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available.
