CE Max expanding thickness 100mm Paper honeycomb core expand

Supplier: Hangzhou Zhongjing Intelligent Packing Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms. Cindy Xie
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T;	Honeycomb core convey speed:	0.7-4m/min;
Weight:	Around 700kgs;	Pressure:	4-6 kg/cubic cm;
Packaging Detail:	Safety packing for sea shipping;	Machine weight:	around 700kgs;
Delivery Detail:	30 DAYS;	Honeycomb heating capacity:	0.7-6m/min( base on thickness 30mm);
Max expanding thickness:	100mm;	Port:	SHANGHAI;
Condition:	New;	Brand Name:	ZHONGJING;
Supply Ability:	5 Acre/Acres per Month;	Power(W):	Around 18KW;
Automatic Grade:	Automatic;	Auto cutting length:	10cm-without limits( you can set according to your request);
Dimension(LWH):	375018001375mm;	Voltage:	380V/50HZ three phase;
Machine size:	375018001375mm;	Model Number:	1600;
Type:	Expander;	Warranty:	1 Year;
Certification:	CE Certificate;	After-sales Service Provided:	Engineers available to service machinery overseas;
Total install power:	around 18KW;	Voltage:	380V/50HZ three phase;
Max expanding width:	1600mm;	Place of Origin:	Jiangsu China (Mainland);
Usage:	PACKING;

Product Description

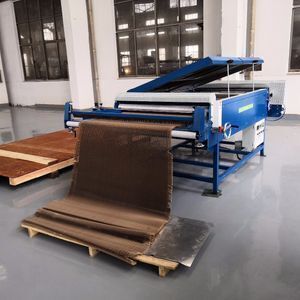

Paper honeycomb core expander machine

Full automatic paper honeycomb core expanding machine, can automaticaly expand honeycomb core to the request size, together with customized heating and slitting function.

Delta PLC control,Delta man-machine interface display, control easy

SPECIFICATIONS

SPECIFICATIONS	UNIT	PARAMETER
Max expanding width	MM	1600
Max expanding thickness	MM	100
Honeycomb core convey speed	M/MIN	0.7-4
Honeycomb heating capacity	M/MIN	0.7-6( base on thickness 30mm)
Auto cutting length	CM	10—without limits ( you can set according to your request)
Voltage	V/HZ	380/50 three phase
Total install power	KW	around 18
Pressure	KG/CUBIC CM	4-6
Machine size	MM	375018001375
Machine weight	KGS	around 700
