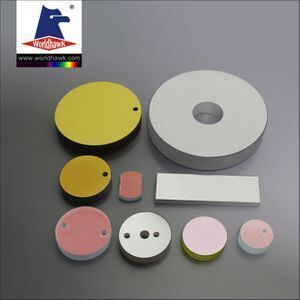

High Reflective Optical Mirror with Aluminium Coating Gold coating and Dielectric coating

Supplier: Changchun Worldhawk Optics Co., Ltd.
Region: Jilin, China
Contact: Ms Lucy liang
Price: $5.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Parallelism:	3';	Surface Flatness:	1/2Lambda, 1/8Lambda;
Port:	Changchun, Shanghai, Shenzhen of China;	Diameter Tolerance:	0.02mm ~ 0.1mm;
Dielectric Mirror Coating:	Ravg >99.99%@400nm-750nm, Ravg >99% @250-7000nm;	Payment Terms:	T/T,Western Union,MoneyGram,Paypal;
Supply Ability:	1000 Piece/Pieces per Month;	Gold Coating:	Ravg>95% 0.8-2μm, Ravg>84% 0.7-0.8μm;
Brand Name:	Worldhawk;	Packaging Detail:	Inner packing-------special protective packing for optical products. Outer packing------carton, Shock absorption material and bubble wrap Transportation-----International Air Transport(UPS DHL FEDEX SF...);
Surface Quality:	60-40, 40-20 or better;	Material:	Optical glass or Metal;
Diameter:	3-350mm;	AOI:	0-45degree;
Place of Origin:	Jilin China (Mainland);

Mirrors

Optical High Reflective Optical Mirror with Aluminium Coating Gold coating and Dielectric coating

Category

Flat Mirrors
Laser Line Mirrors
IR Mirrors
Focusing Mirrors

(Concave Mirror)
Hot and Cold Mirrors
Backside Polished Mirrors
Front Surface Mirror

Category

Plano Mirrors
Cylindrical Mirrors
Prism Mirrors
Spherical Mirrors
Aspherical Mirrors
Elliptical Mirrors
Cone Mirrors
Right Angle Prism Mirrors

Reflection
Protected Aluminum	Ravg>90% 0.4-0.7μm
Enhanced Aluminum	Ravg>92% 0.45-0.65μm, Ravg>90% 0.19-0.4μm
Protected Silver	Ravg>95% 0.5-0.8μm, Ravg>95% 2-10μm
Protected Gold	Ravg>95% 0.8-2μm, Ravg>84% 0.7-0.8μm
Dielectric Coatings Mirror	Ravg >99.99% >400nm, Ravg >99.99% 0.25-0.4μm
Substrates	H-K9L(N-BK7), Fused Silica, Si, Ge, Sapphire, Copper, Aluminum
Diameter	3-250mm or customization
Dia. tolerance	+/-0.1mm, +/-0.01mm
Surface Flatness	lambda/4 , lambda/2, lambda/10
Parallelism	3'
AOI	0°-45°
Clear Aperture	> 90%

+ Optical Mirrors

Protected Aluminum Mirror	Protected Gold Mirrors	Dielectric Coatings Mirror

Protected Silver Mirrors	Enhanced Aluminum Mirrors	Laser Mirror with VHB pad

High-quality optical mirrors are available for use with light throughout the UV, VIS, and IR spectral regions.
Choosing the proper reflective coating option ensures high reflectivity of the needed wavelength or wavelength range.
We can provide the professional customized service, welcome to send inquiry and we will reply within 24 hours.

+ Coating Machine

Testing / Production

+ Inspection

Advanced testing equipment and methods are important guarantee for the production of high-precision products.

+ Our Factory

Advanced processing equipment and complete production system are ensure that we can effectively control every aspect of the product process to ensure product quality, and reduce losses and reduce costs!
