H-K9L/Fused Silica optical cylindrical plano convex lens details
Payment Terms:T/T,Western Union,Paypal;Radius:> 1.5mm;
Port:Any port of China, Shanghai Shenzhen Changchun;Model Number:WH-CL;
Place of Origin:Jilin China;Structure:Plano-convex;
Coating:Uncoated or AR, BBAR, Reflective;Length and Height:2-300mm;
Irregularity of Fringes:0.2-0.5Lambda;Shape:Cylindrical;
Flatness(per 25mm at 632.8nm):<1.5Lambda (General), <1/4Lambda (High Precision);Usage:Optical;
Clear Aperture:>90%;Packaging Detail:Inner packing-------special protective packing for optical products. Outer packing------carton, Shock absorption material and bubble wrap Transportation-----International Air Transport(UPS DHL FEDEX SF...);
Brand Name:Worldhawk;Focal Length Tolerance(mm):±1%;
Size Tolerance:+/-0.1mm, +/-0.05mm;Center Thickness:> 0.5mm;
Surface Quality(S/D):60/40,40/20 or better;Supply Ability:12000 Piece/Pieces per Month;
Cylinder Lenses

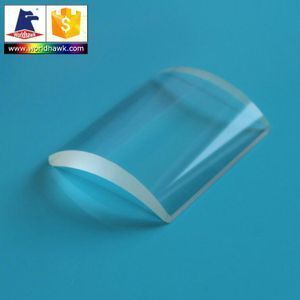

H-K9L/Fused Silica optical cylindrical plano convex lens

--

Cylinder Lenses are offered in both plano-concave and plano-convex configurations, they are typically used to focus incoming light to a line, or to change the aspect ratio of an image. Cylinder Lenses are available with positive or negative focal lengths, they are used for the optics, lasers, medical science, electronics, tele-communication and others.



Worldhawk can offer cylinder Lenses include convex cylindrical lens, concave cylindrical lens, meniscus cylindrical lens, and doublet achromatic cylindrical lens ect. Choose from N-BK7 glass, UV fused silica, or CaF2, all of which are available uncoated or with an antireflection coating.


Worldhawk can provide various kinds of cylindrical lens with high precision, We are proud to be one of the few suppliers can detection the radius and flatness about the cylindrical lens in China. Absolutly can ensure all the products are qualified.







Specifications

--

Material

N-bk7, H-K9L, Fused Silica, N-SF10, Silicon, CaF2, Sapphire etc.

Length

2 ~300mmCentration<3 arc min

Height

2 ~300mmClear Aperture>90%

Radius

> 1.5mm

Flatness

(per 25mm at 632.8nm)

<1.5Lambda (General), <1/4Lambda (High Precision)

Center Thickness

> 0.5mmIrregularity of Fringes0.2-0.5 Lambda

Focal Length

3~3000mmSurface Quality(S/D)60/40, 40/20 or better

Size Tolerance(mm)

+/-0.1mm, +/-0.05mmChamfer<0.25mmx45 degree

Center Thickness Tolerance(mm)

+/-0.1mm, +/-0.05mmCoatingUncoated, AR, BBAR, Reflective

Focal Length Tolerance(mm)

±1%Design Wavelength632.8 nm

--

--

Worldhawk supply you professional customized service

--

--

--

--





Testing / Production





+ Inspection

Advanced testing equipment and methods are important guarantee for the production of high-precision products.





+ Our Factory

Advanced processing equipment and complete production system are ensure that we can effectively control every aspect of the product process to ensure product quality, and reduce losses and reduce costs!







Company / Catalogue





+ Company



Changchun Worldhawk Optoelectronics Co., Ltd, established in 2010 in China Optical City - Changchun, we have three branches in Changchun, Nanjing and Hong Kong.


Worldhawk is the professional supplier for the optical products with much experience in optics design, research and development, manufacturing and export. We have many experienced engineers and many skilled workers, they are the important guarantee for the higher quality products. We can ensure higher qualified rate because of the precision testing equipment.


We can provide all kinds of optical products processing, coating service, assembling the lens and high-altitude monitoring quipment and so on. We consider our customer relationship to be a valuable asset, We understand that your application is not standard and so we offer customization of all of our products.



Please click on the links below for more information:

+ Spherical Lens+ Sapphire Customized
+ Optical Prism + Optical Powell Lens
+ Cylindrical Lens+ Optical Windows
+ Optical Reflecting Mirror+ Optical Ball lens
+ Optical Bandpass Filter+ Optical Dome









Payment / Shipping

+ RFQ



QWhat's the way of shipping and cost?



(1) We accept DHL, Fedex, TNT, UPS, EMS, SF and etc.

(2) If you have your own express number, it's great.

(3) Freight=USD35.0(the first weight) + USD12.0/kg



Q: How to pay?



(1) T/T, PayPal, West Union, MoneyGram and

Assurance payment on Alibaba and etc..

(2) Bank Fee: West Union-USD30.00(≤USD3000.00),

T/T-USD20.00+, PayPal-5%. Please consult the local bank.



Q: What's the deliver time?



(1) For inventory: the delivery time is 5 workdays.
(2) For customized products: the delivery time is 7 to 25 workdays. According to the quantity.

Q: How to ensure the safety of payment?



A: Worldhawk is the gold supplier for 7 years and supports Alibaba Trade Assurance.

Trade Assurance Limit: > US $300,000



Q: Can I customize the products based on my need?



Yes, we can customize the material, specifications and optical coating for your optical components based on your needs.







+ We try to finish each detail in production and service in order to being the worthy cooperative partner of clients.
