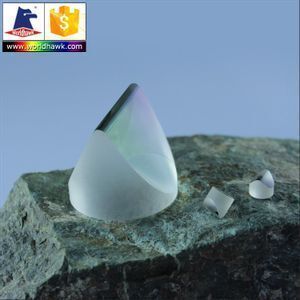

Laser line generator lens is also called optical powell lens

Supplier: Changchun Worldhawk Optics Co., Ltd.
Region: Jilin, China
Contact: Ms Lucy liang
Price: $18.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Place of Origin:	Jilin China;	Fan Angle:	8-45 degree 45-110degree;
Structure:	Aspheric cylinder lens;	Input Beam size:	Dia. 0.8-5mm or customized;
Port:	Any ports of China, Changchun, Shenzhen, Shanghai, Dalian;	Wavelength Range:	405- 900nm;
Supply Ability:	800 Piece/Pieces per Month;	Coating:	Uncoated or upon customer request @ 405 - 900nm;
Bore site:	<4 mrad;	Payment Terms:	T/T,Western Union,Paybal;
Shape:	Cylindrical with a curved roof line;	Diameter:	9mm or customized;
Height:	6.5~8.5mm or customized;	Straightness of line:	< 0.1%;
Energy uniformity:	<20% (central 80% of line.);	Clear Aperture:	≥90%;
Brand Name:	Worldhawk;	Packaging Detail:	Inner packing-------special protective packing for optical products. Outer packing------carton, Shock absorption material and bubble wrap Transportation-----International Air Transport(UPS DHL FEDEX SF...) Delivery Detail------7-45days;
Model Number:	WH-PL;	Usage:	Laser Line Generator Lenses;

Powell lens

Optical Powell Lens | Laser Line Lens

About powell lens

The Powell Lens can be widely used in alignment, machine vision systems, construction and process control fields.

Worldhawk are professional supplier for powell lens, in fact, we have already become the one of the main important suppliers of powell lenses in China. cooperation with us , you will get high quality products with reasonable price and products performance at the same time .

Specifications
Material (Substrate)	H-K9L ( N-BK7 ), H-ZF7LA ( N-SF6 )
Diameter	φ6,φ9 +0/-0.05 mm (or customized)
Height	6.5~8.5mm+/-0.05 mm (or customized)
Fan Angle	8°~110° +/-3% deg
Energy Uniformity	<20% (central 80% of line.)
Straightness of line	<0.1%
Apex Offset	<0.02mm
Wavelength Range	400nm-1100nm
Clear Aperture	≥90%
Input Beam Size	Dia. 0.5-5mm
Scratch and Dig (S/D)	60/40 40/20
Coating	Uncoated, AR, BBAR, Reflective
RoHS	Compliant

+ Different Powell Lenses

These Laser Line Generator Lenses, also known as Powell lenses, generate a straight, uniform laser line by fanning out a collimated beam in one dimension, as shown in the diagram above. The apex of each lens features an aspheric curve that evenly distributes the optical power, resulting in an intensity variation of less than 25% over the center portion of the line. You will get more even energy distribution along the laser line than using the rod lenses and lenses.

Testing / Production

+ Inspection

Advanced testing equipment and methods are important guarantee for the production of high-precision products.

+ Our Factory

Advanced processing equipment and complete production system are ensure that we can effectively control every aspect of the product process to ensure product quality, and reduce losses and reduce costs!

Company / Catalogue

+ Company

Changchun Worldhawk Optoelectronics Co., Ltd, established in 2010 in China Optical City - Changchun, we have three branches in Changchun, Nanjing and Hong Kong.

Worldhawk is the professional supplier for the optical products with much experience in optics design, research and development, manufacturing and export. We have many experienced engineers and many skilled workers, they are the important guarantee for the higher quality products. We can ensure higher qualified rate because of the precision testing equipment.

We can provide all kinds of optical products processing, coating service, assembling the lens and high-altitude monitoring quipment and so on. We consider our customer relationship to be a valuable asset, We understand that your application is not standard and so we offer customization of all of our products.
