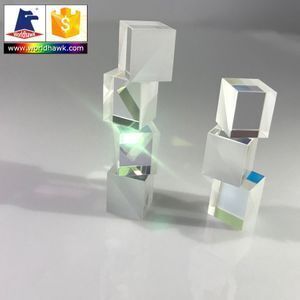

BK7 glass Polarizing beamsplitter cube and Non-polarizing beamsplitter cube

Product details
Material:BK7, Fused Silica;Dimension Tolerance:±0.1mm;
Place of Origin:Jilin China;Packaging Detail:Inner packing-------special protective packing for optical products. Outer packing------carton, Shock absorption material and bubble wrap Transportation-----International Air Transport(UPS DHL FEDEX SF...) Delivery Detail------10-25workdays;
Surface Quality:60/40;Supply Ability:2000 Piece/Pieces per Month;
Beam Deviation:0°±3arc-sec(T), 90°±5arc-sec(R);Brand Name:Worldhawk;
Model Number:WH-BC;Payment Terms:T/T,Western Union,paypal;
Flatness:1/4 Lambda@633nm;Port:Any port of China, Shenzhen, Shanghai, Changchun...;
Angle Tolerance:Customers' Requirments;

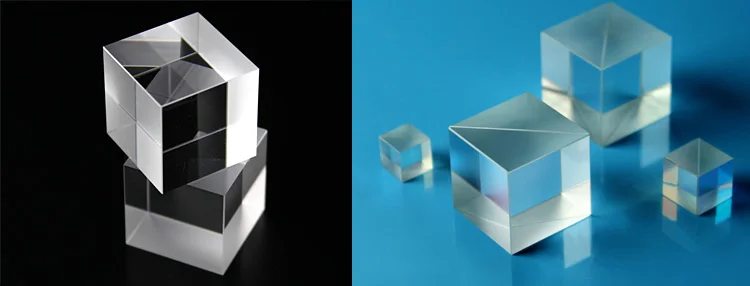

Beamsplitter Cube



Standard Beamsplitter Cube

A Standard Beamsplitter Cube is independent of polarization. The incoming light should be: 45°linearly polarized, circularly polarized or natural light. The outgoing beams are two partially polarized beams of about the equal intensities.



Polarizing Beamsplitter Cube
A polarizing beamsplitter cube consists of two right angle prisms cemented together. The hypotenuse face of one prism is coated with a special multilayer dielectric coating. When circularly polarized or natural light enter the cube vertically, it separated into two linearly polarized beams. The transmitted beam is P-polarized while the reflected beam is S-polarized.
And when a linearly polarized light come in, it similarly divided into two beams. But the energy ratio of the two outgoing beams is depending on the polarization of the incident beam. Polarizing beamsplitter cubes are available for many laser wavelengths and broadband ranges.



Non-Polarizing Beamsplitter Cube
These cubes split the energy with minimal polarization sensitivity. The polarization states are about the same for the entrance and exit beams.
Broadband Non-Polarizing Beamsplitter Cube’s hybrid coating has certain absorption but minimal polarization sensitivity. Due to the metallic nature of the hybrid coating, those cubes are not intended for use with high powerlasers.












 Standard Beamsplitter Cube

 Material BK7 or K9L
 Dimension As requirement
 Dimension Tolerance ±0.1
 Surface Quality 60-40  40-20
 Flatness ≤λ/4@633nm or better
 Beam Deviation

 Standard: 0°±3′(T), 90°±5′(R)

 High Pricision: 0°±3″(T), 90°±5″(R)

 Coating Cemented Face: T/R=50/50±5%, T=(Ts+Tp)/2, R=(Rs+Rp)/2
 All input and output faces: multilayer AR coating
 Other: T/R ratio and wavelength is available upon request
 Chamfer Protected  <0.4mm×45°
 RoHS Compliant













Polarizing Beamsplitter Cube

 Material BK7 or Fused Silica
 Dimension As requirement
 Dimension Tolerance ±0.1
 Surface Quality 60-40 40-20
 Flatness ≤λ/4@633nm or better
 Beam Deviation Standard: 0°±3′(T), 90°±5′(R)

 High Pricision: 0°±3″(T), 90°±5″(R)

 Coating Cemented Face: Tp>96%, Rs>99.5%
 Extinction ratio≥500:1
 All input and output faces: AR V-coating
 Chamfer Protected  <0.4mm×45°
 RoHS Compliant













Non-Polarizing Beamsplitter Cube

 Material BK7 or Fused Silica
 Dimension As requirement
 Dimension Tolerance ±0.1
 Surface Quality 60-40 40-20
 Flatness ≤λ/4@633nm or better
 Beam Deviation Standard: 0°±3′(T), 90°±5′(R)

 High Pricision: 0°±3″(T), 90°±5″(R)

 Coating Cemented Face: T/R=46/46±5%,(Ts-Tp) ≤5%,(Rs-Rp)≤5%
 All input and output faces: multilayer AR coating
 Chamfer Protected  <0.4mm×45°
 RoHS Compliant
