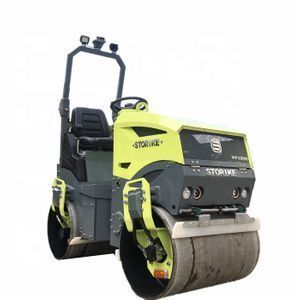

Hot sale road roller used for asphalt roads

Supplier: Shandong Storike Engineering Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Anna Zheng
Price: $3500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product name:	Hot sale road roller used for asphalt roads;	Vibration frequency:	70HZ;
Type:	Drive Tandem Vibratory Roller;	Grade Ability:	30%;
Exciting force:	20 KN;	Travel Speed:	0-4km/h;
Fuel capacity:	15L;	Payment Terms:	L/C,T/T,Western Union,paypal;
Water tank capacity:	67L;	Warranty:	1 Year;
Weight:	1000KG;	After-sales Service Provided:	Free spare parts,Video technical support,Online support;
Brand Name:	Storike;	Hydraulic tank capacity:	13L;
Certification:	ISO;	Port:	Qingdao;
Nominal amplitude:	0.5mm;	Condition:	New;
Output power:	9.7KW;	Supply Ability:	1000 Set/Sets per Month;
Power(W):	13HP;	Packaging Detail:	iron frame or customised wooden package for Hot sale road roller used for asphalt roads;
After-sales Service Provided:	Engineers available to service machinery overseas;	Climbing ability:	30%;
Place of Origin:	Shandong China (Mainland);	Dimension(LWH):	500700mm2;

Hot sale road roller used for asphalt roads

Hot sale road roller used for asphalt roads

Features:

1. Fully Hydraulic Transmission: Hydraulic Steering and Hydraulic Turning, Electromagnetic Clutch Vibration;

2. Can adopts water-cooled/air-cooled diesel engine or HONDA gasoline engine, have good heat dissipation.

3. 20KN Exciting force, good compaction effect. Soil compactor vibratory roller.

4. Had large capacity water tank, so that can guarantee continuou working.

5. Full closed hydraulic control system, ensure the walking and compaction accuracy, and it is convenient and safe to maintenance and use.

6. One side of the road roller installed protecting mask, so that it is very easy and convenient to operate in the corners and edges.

7. Operation radius is small, so that it can work in small area, suitable for groove backfill.

8. Use famous engine, good quality assurance, superior performance, easy to start.

9. CE certificate.

Product Description

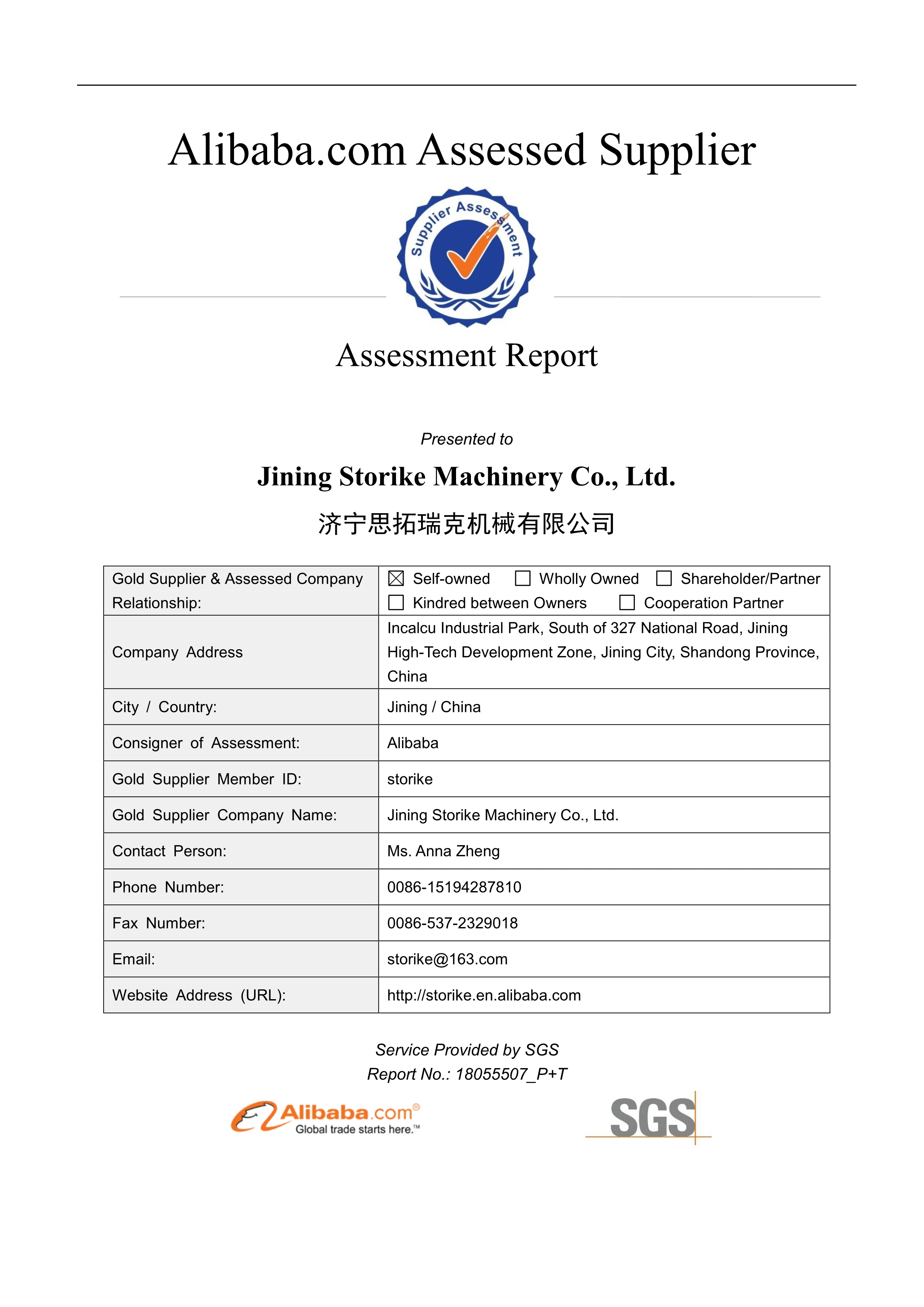

STORIKE was one of the top three mini road roller manufacturer for 15 years. We are Golden supplier of Alibaba. You can visit our homepage to see our factory, we were certificated by SGS.

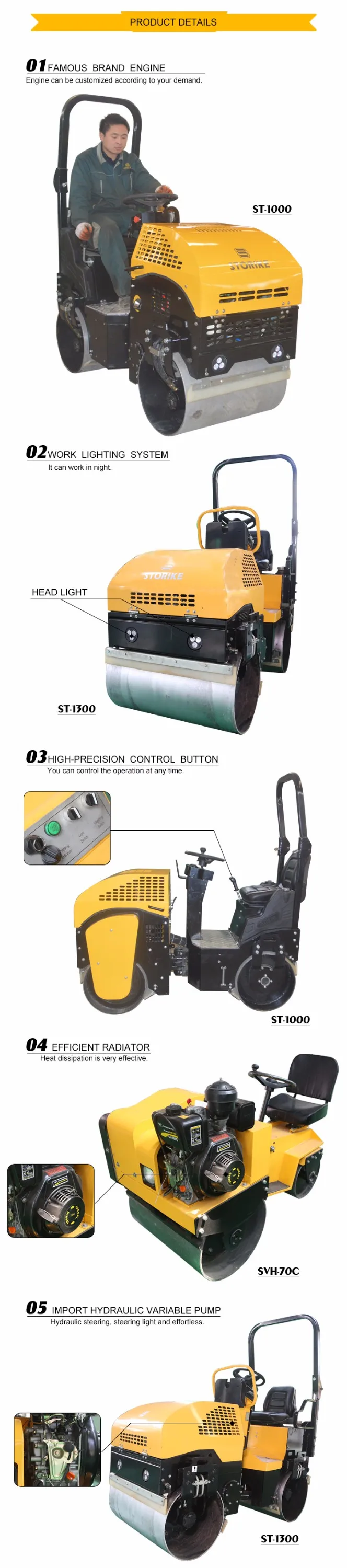

Standard configurtion:

1. HONDA engine or Chinese top quality engine.

2. DENMARK DANFOSS driving motor.

3. USA WHITE vibrationg motor.

4. DENMARK DANFOSS PUMP

5. JAPANESE NSK bearing.

Kindly Remind:

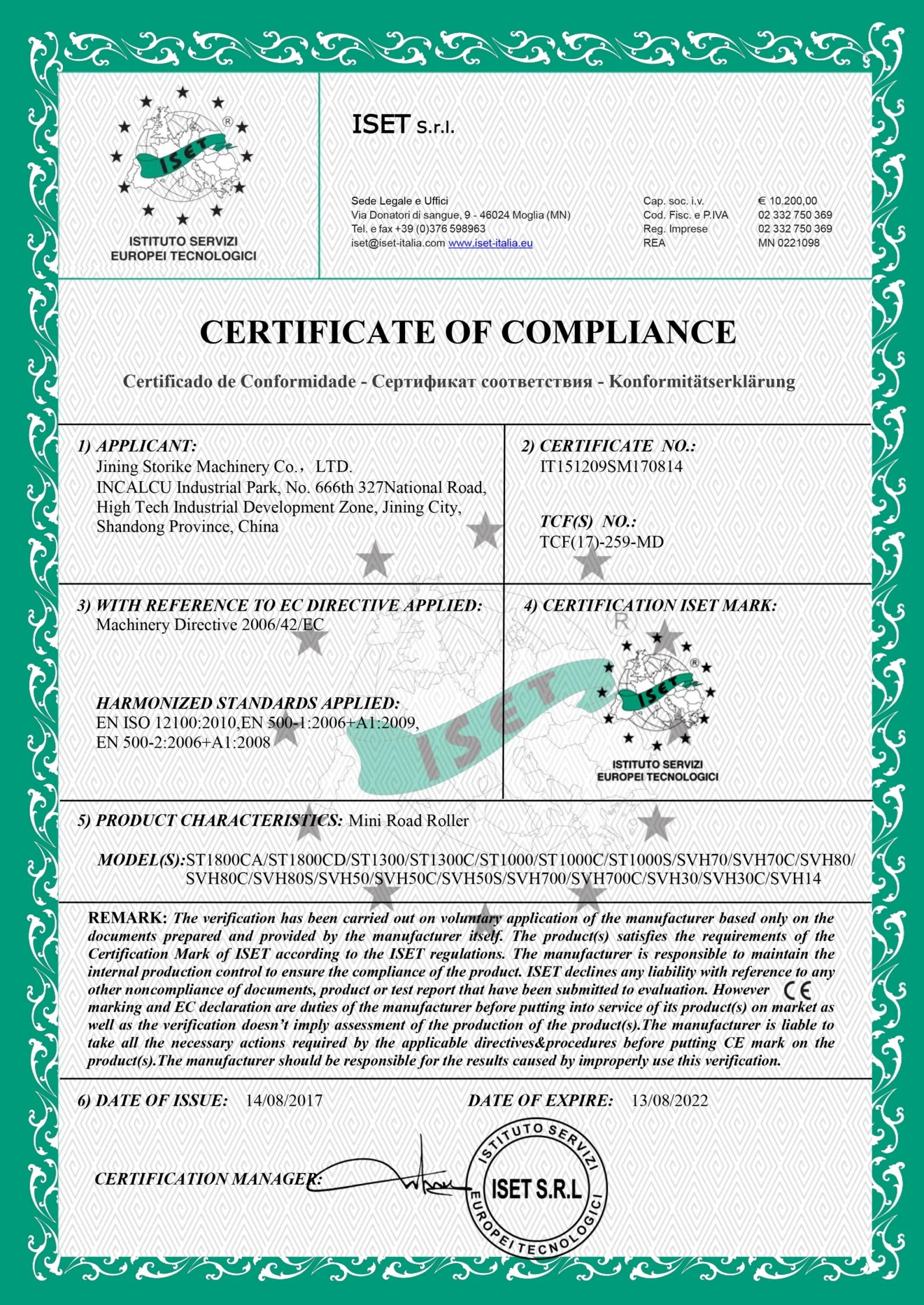

You can surf this internet: www.iset-italia.eu to check the authenticity of our CE certification. PS skills is so powerful in the WORLD, the official website could tell you who are true. Belie us my friend.

Product details

ITEM NO/DETAILS	ST1000A	ST1000	ST1000B	ST1000S
ENGINE
Engine	HONDA GX390	KIPOR 186FE	CHANGCHAI 186F	JINFEIYU RD90N-1
Engine type	Single cylinder, vertical, air-cooled, four-stroke, gasoline	Single cylinder, vertical, air-cooled, four-stroke, diesel		Single cylinder, horizontal, water-cooled, four-stroke, diesel
Number of cylinders	1
Output power (KW)	9.7	6	6	5.88
Rating speed(RPM)	3600	3600	3600	2400
DRIVING
Electrical equipment(V)	12
Drive mode	Variable plunge pump, stepless speed change, double-wheel series
Walking speed (KM/H)	0--4
Theoretical climbing ability(%)	30/35(vibration on/off)
STEERING
Swing angle(°)	28
Steering mode	Hydraulic cylinder, articulated steering
Steering system	Swing articulated
EXCITING SYSTEM
Vibration wheel	Front
Drive form	Mechanical vibration, electromagnetic clutch
Vibration frequency (HZ)	70	70	70	65
Vibration amplitude (MM)	0.5
Exciting force(KN)	20
SPRINKING SYSTEM
Water spray form	Gravity-type water
CAPACITY
Hydraulic oil capacity(L)	13
Fuel capacity(L)	6.5	15	5.5	10
Water tank capacity (L)	65
SIZE
Working width(MM)	825
Overall length(MM)	1870
Machine height(MM)	1450
Turning radius(outer)(MM)	2600
Ground clearance(MM)	165
Wheel track(MM)	1230
Drum size	500700mm2
Drum thickness(MM)	12
WEIGHT
Weight(KG)	1000
Static load(N/CM)	56/77	57/77	56/77	58/77

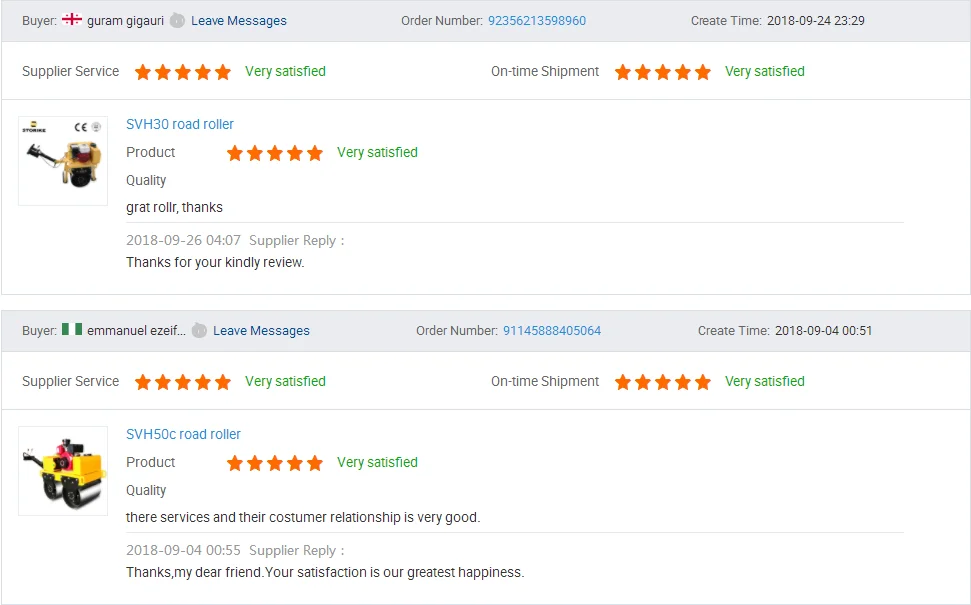

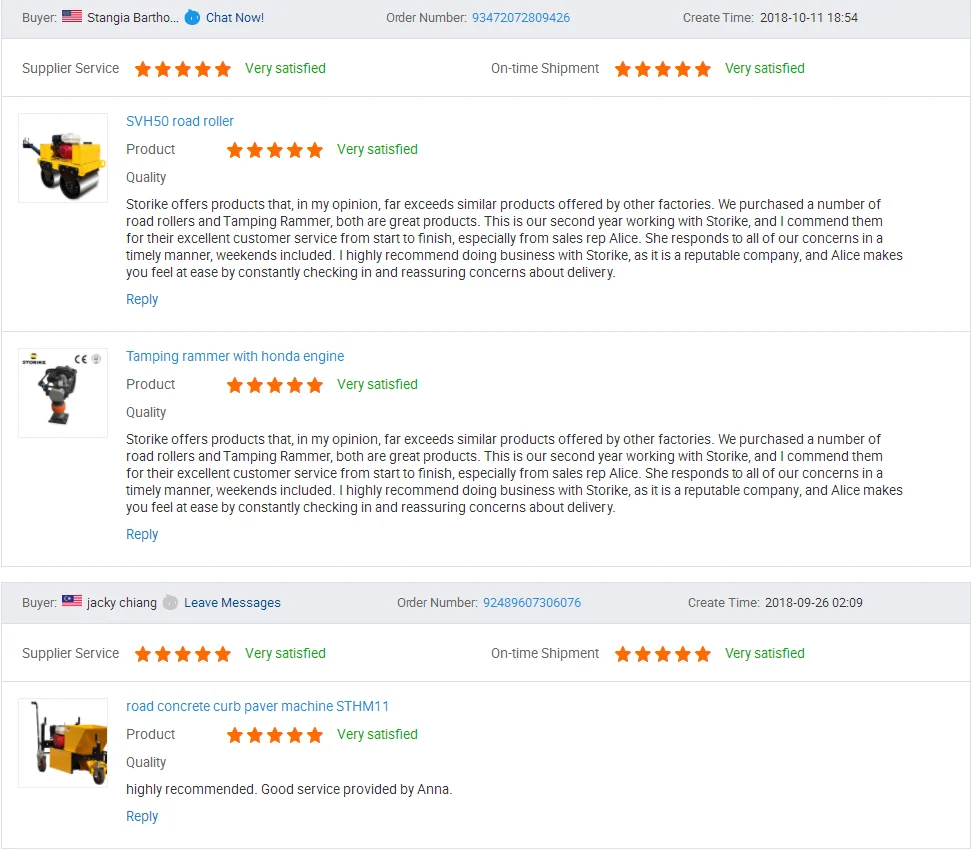

Customer comments

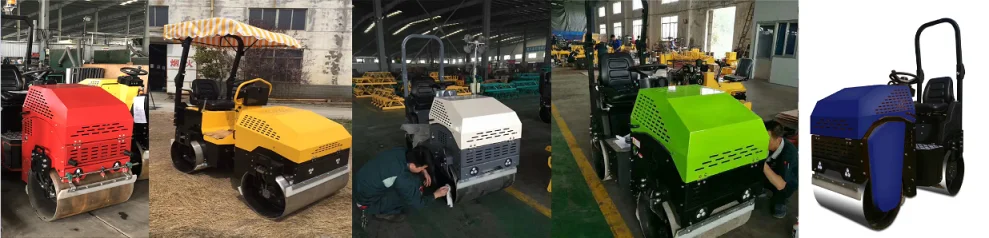

Customized products

Product Application

Hot sale road roller was used for asphalt roads used in municipal, highway pavement maintenance operations, also apply to groove, pipe trench backfill compaction in the construction engineering, building construction and square homework, rolling lawns, etc.

Packaging & Shipping

ST1000 vibration construction machinery road roller compactor
