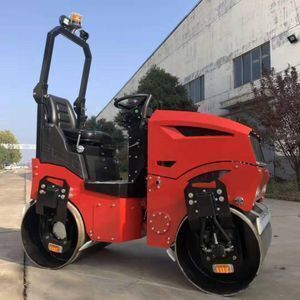

1 Ton 1.5 Ton 2 Ton Fully Hydraulic Vibrating Road Roller Compactor Price

Click here to contact

Product details

Single gross weight:	1200.0 KG;	Vibrating motor:	Denmark Danfoss;
Travel Speed:	0-4km/h;	Vibration frequency:	65HZ;
Selling Units:	Single item;	Core Components:	Motor,Pump;
Type:	Double Drum Roller,Vibratory Roller;	Showroom Location:	None;
Driving motor:	Denmark Danfoss;	Video outgoing-inspection:	Provided;
Hydraulic Pump Brand:	SAUER-DANFOSS;	Exciting force:	20KN;
Power(W):	8100;	Weight:	1200KG,1 Ton;
After Warranty Service:	Video technical support,Online support,Spare parts;	Applicable Industries:	Construction works ;
Hydraulic Valve Brand:	SAUER-DANFOSS;	Warranty:	1 YEAR;
Single package size:	195X97X152 cm;	Local Service Location:	None;
Wheel Size:	500(d)800(w)2mm;	Place of Origin:	China;
Certification:	CE ISO9001;	Condition:	New;
Engine Brand:	CHANGCHAI;	Packaging Detail:	Standard Export Package 1 Ton Sit On Hydraulic Vibrating Two Drums Smooth Wheel Road Roller Price;
Drum:	Double Drum Roller;	After-sales Service Provided:	Free spare parts,Video technical support,Online support;
Grade Ability:	30%;	Exciting Force:	25KN;
Warranty of core components:	1 YEAR;	Dimension(LWH):	18859151450mm;
Machinery Test Report:	Provided;	UNIQUE SELLING POINT:	Fully hydraulic system;
Marketing Type:	New Product 2020;	Brand Name:	STORIKE;
Package Preview:	;

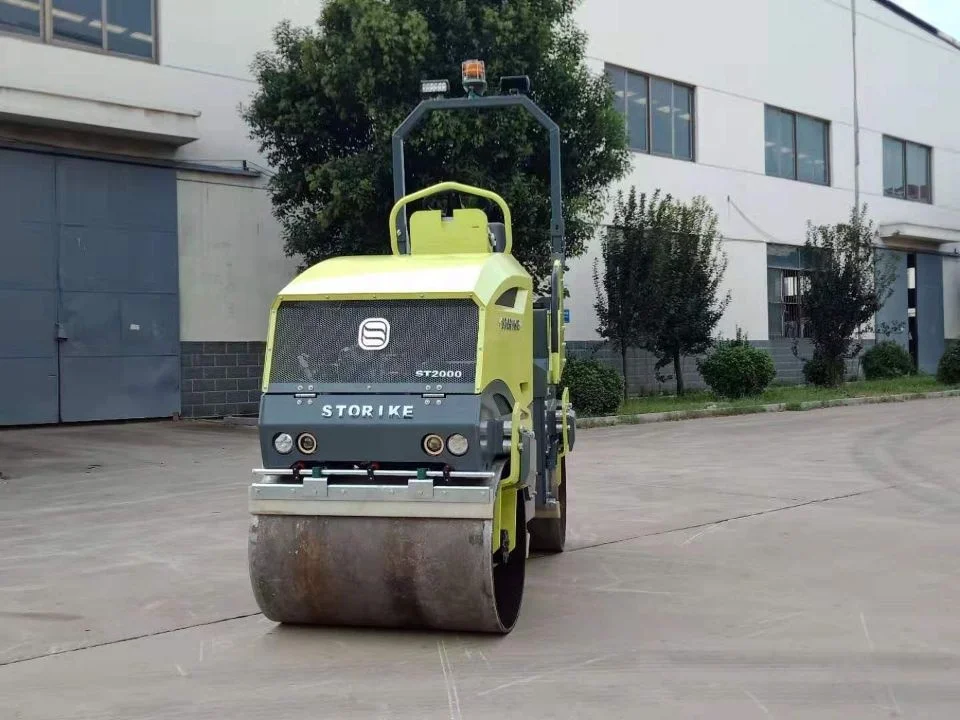

1.2 Ton Fully Hydraulic Tandem Vibratory Asphat Compactor Roller

Buyer Feedback

Specification

ITEM NO/DETAILS	ST1200	ST1200C
ENGINE
Engine	BRIGGS&STRATTON 25T2/Honda GX390	CHANGCHAI 192F
Engine type	Single cylinder, OHV, air-cooled, four-stroke, gasoline	Single cylinder, vertical, air-cooled, four-stroke, diesel
Number of cylinders	1
Output power (KW)	9.7	8.1
Rating speed(RPM)	3600
Fuel consupmtion(G/KWH)	313	320
Lubricating oil volume(L)	1.1	1.65
DRIVING
Electrical equipment(V)	12
Drive mode	Variable plunge pump, stepless speed change, double-wheel series, parallel motor
Walking speed (KM/H)	0--5
Theoretical climbing ability(%)	30/35(vibration on/off)
STEERING
Swing angle(°)	28
Steering mode	Hydraulic cylinder, articulated steering
Steering system	Swing articulated
EXCITING SYSTEM
Vibration wheel	Front
Drive form	Hydraulic Motors
Vibration frequency (HZ)	65
Vibration amplitude (MM)	0.5
Exciting force(KN)	22
SPRINKLING SYSTEM
Water spray form	Intermittent pressure water spray
CAPACITY
Hydraulic oil capacity(L)	22
Fuel capacity(L)	6.5	5.5
Water tank capacity (L)	65
SIZE
Working width(MM)	930
Overall length(MM)	1980
Machine height(MM)	1540
Turning radius(outer)(MM)	3165
Ground clearance(MM)	245
Wheel track(MM)	1356
Drum size	560800mm2
Drum thickness(MM)	12
WEIGHT
Weight(KG)	1200
Static load(N/CM)	69.5/68
