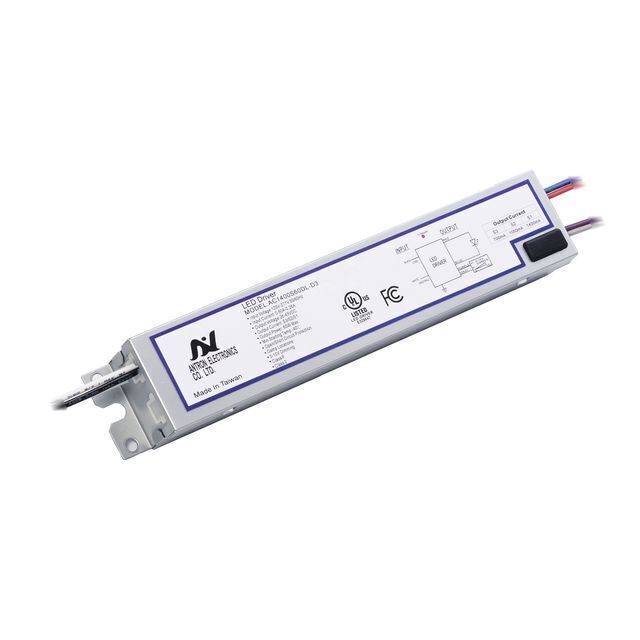

In Stock LED Driver 60w 45w 30w Class 2 ClassP UL

Supplier: ANTRON ELECTRONICS CO., LTD.
Region: Taiwan, China
Contact: Mr Jerry Tsai
Price: $7.80 / 2 - 9 pieces
$7.50 / 10 - 19 pieces
$7.20 / >=20 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Case Code:	AM103;	Product Weight（kg）:	0.6;
Packaging Detail:	5 to 100 pieces per carton depends on model. Individual packing is optional.;	Selling Units:	Single item;
Brand Name:	Antron;	Single package size:	26X6X4 cm;
Output Current:	1400/1050/700mA;	Warranty:	5 Years;
Dimming:	3 in 1 dimming (PWM, 1-10V, Rx);	Place of Origin:	Taiwan, China;
K3:	adjustable led driver for led indoor lights;	K2:	constant current led driver for indoor led lighting;
Certification:	UL, cUL, Class 2, Class P, Title 24;	Protection:	Short Circuit, Over Voltage, Over Temp;
Single gross weight:	0.6 KG;	Model Number:	AC1400S60DL-D3;
Output Type:	Single;	Type:	Constant Current;
Output Frequency:	N/A;	K1:	60w led drivers for grow light indoor;
Lighting solutions service:	LED driver customized design;	Package Preview:	;
Output Power:	60/45/30W;	Product Series:	LED Driver in Stock;
Warranty(Year):	5-Year;	Luminous Efficacy(lm/w):	170;
Input Voltage:	120-277Vac;

Your Lighting Partner

Electrical Ballast

Antron has established reputation in fluorescent ballasts in the market on T5, T8, T10, T12, CFL, Biax PLL and UV lamp ballasts. Our ballast meet UL, CE, FCC and RoHs regulations.

LED Driver

Antron developed, manufactured and customized LED drivers that were highly valued by worldwide customers. Our driver meet UL, CE, CEC, FCC and RoHs regulations.

Emergency LED Driver

Antron provided multiple solutions on emergency backup system recent years. It is our hot sale product in the market. Our emergency pack meet UL, CEC, FCC and RoHs regulations.

Product Features

- Universal input voltage 120-277Vac - Adjust output current (power) by DIP switch

- Customized current (power) options available
- Flicker Free, PFC and Isolated design
- 3-in-1 dimming (PWM/1-10V/Resistor)

- Open/Short/Over-Voltage/Over-Temperature protection

- 2kV to 4kV surge protection

- Suitable for UL dry and damp location
- 5 years warranty

Electrical Spec

Model Series			AC1400S60DL-D3
AC Input	Input Voltage	120-277Vac
		Input Frequency	60Hz
		Leakage Current	<0.75mA
		Turn On Time	<1s
		Inrush Current	<35A
		Power Factor	>0.9
		THD	<20%
DC Output	Output Current	1.4/1.05/0.7A
		Output Voltage	26-43V
		Output Power Per Channel	60/45/30W
		Output Current Tolerance	±5%
		Output Current Ripple	<5%
		Efficiency @Highest Vin	87%%
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed.
		Over-Voltage	Output current decade mode, recovers automatically after fault condition is removed.
		Over-Temperature	Shut down o/p voltage, re-power on to recover.
		Surge	2kV
Environment	Operation Temperature	Tcase -40°C~90°C
		Storage Temperature	Tcase -40°C~90°C
		Humidity	10%~90%
Safety	Safety Approval	UL8750 UL1310
		UL/cUL Class 2	V
		Withstand Voltage	I/P-O/P: 2.0K Vac, I/P-FG: 2.0K Vac, O/P-FG: 0.5K Vac
		Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100Mohm/500VD
		Noise	Sound Rating Class A
EMC	EMI	FCC Part 15 class A, UL8750, CSA C22.2 No. 250.13-14, ICES-005 Issue 4
EMC		EMS	FCC Part 15 class A, UL 8750, ICES-005 Issue 4

Model Series	Case Code	L	W	H	Unit
AC1400S60DL-D3	AM103	241	43	29	mm

Packing & Delivery

Packing Information

5 to 100 pieces per carton depends on model. Individual packing is optional.

Our Company

Our Service

Excellent Quality

Our LED drivers and ballasts are highly reliable with overall return rate below 0.3%. Antron promise we can return two placements for one fail with the new order. We are confident our products is reliable and you can enjoy the high quality of powered by Antron.

Note:
1. The policy is exclusive for Alibaba customers.
2. OEM/ODM is not applicable.

Experienced R&D and QC System

Founded in 1984, Antron has established reputation in fluorescent ballasts and continuously dedicated to be the leading expert in LED drivers globally. With more than 30 years of experience in lighting power supply, Antron developed, manufactured and customized LED drivers, fluorescent ballasts and emergency LED drivers that were highly valued by worldwide customers.

Product Warranty and Liability

To start with, Antron has more than 30 years of experience in the lighting industry. Most of our competitors only accept mass order rather than low-volume orders. But to us, any amount of order is great order. We do not discriminate. We are proud of our top-quality product, most of our products also have 5 years warranty. Besides, we have $5 millions product liability insurance that secures our clients’ rights and interests.

We can do more.

In addition to our current products, Antron specializes in adapting our products to meet individual specifications that represented by the rapid mass market. If our existing products assortment does not meet your exact needs, we can quickly and economically modify, adapt and design.

Certifications

FAQ

Why should I choose Antron?

We are a professional LED driver manufacturer with more than 32 years experience. We have an experienced R&D team, high-quality production line, mature QC control process. Quality, Service and Innovation are the core value of Antron.

We are actively looking for long term partner and welcome you to join us.
