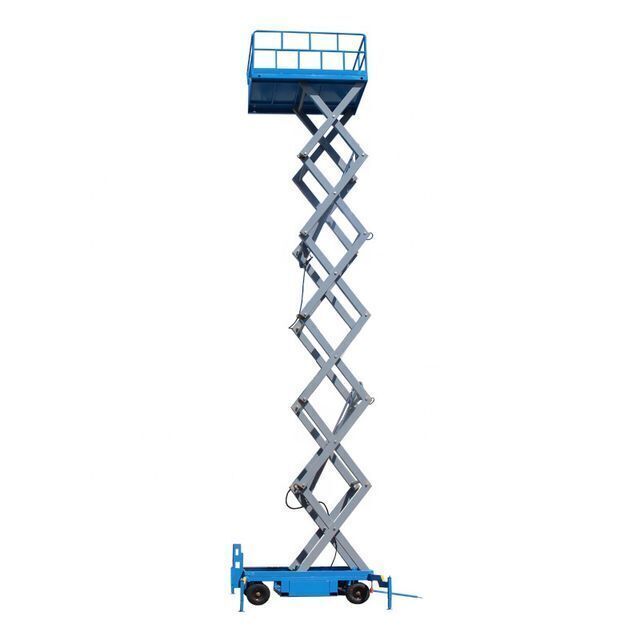

12m scissor lifting platforms 500kg building elevator construction lifter platform lift table

Supplier: Shanghai Ruibiao Construction Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Angela Cheng
Price: $1200.00 / 1 - 9 sets
$900.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Platform:	Anti-skid Checkered Plate;	Dimension(LWH):	279616701750;
Voltage:	110v 220v 240v 380v Optional;	Rated Loading Capacity(kg):	500kg-2000kg;
Warranty:	1 Year;	Supply Ability:	500 Set/Sets per Month platform lift;
Loder Weight:	2260kg;	Packaging Detail:	Plywood - 12m scissor lifting platforms 500kg building elevator construction lifter platform lift table;
Max Lifting Height:	14m;	Application:	Maintenance;
UNIQUE SELLING POINT:	Long lifetime;	Condition:	New;
Material:	High-duty Steel Structure;	Brand Name:	RUIBIAO;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Place of Origin:	China;
Feature:	Easy Operation Safety Convenience;	Lifting time:	80S;
Color:	Requirement;	After-sales Service Provided:	Video technical support,Online support,Free spare parts;
Fence height:	1000mm;	Usage:	Higher Level;
Name:	scissor lifting platforms construction lifter platform lift table;	Port:	Shanghai;
Hoisting Speed:	4-6m/min;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;

12m scissor lifting platforms 500kg building elevator construction lifter platform lift table

Product Description

Lift table is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, and you can let the mobile scissor lift at some work areas without power. Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.
A.1000kg-2000kg electric scissor lift platform lift
Model	Capacity (kg)	Lifting.Height (mm)	Min.Height (mm)	Platform size (mm)	Weight (kg)
RBSJY1.0-4	1000	4000	1180	2100*1200	1250
RBSJY1.0-6	1000	6000	1300	2100*1200	1400
RBSJY1.0-8	1000	8000	1420	2100*1200	1585
RBSJY1.0-10	1000	10000	1530	2100*1200	1700
RBSJY1.0-12	1000	12000	1750	2550*1530	2560
RBSJY1.0-14	1000	14000	1900	2812*1600	3230
RBSJY1.5-6	1500	6000	1530	2100*1530	1780
RBSJY1.5-8	1500	8000	1690	2100*1530	2070
RBSJY1.5-10	1500	10000	1850	2100*1530	2250
RBSJY1.5-12	1500	12000	1850	2550*1530	2900
RBSJY1.5-14	1500	14000	1960	2816*1600	3400
RBSJY2.0-6	2000	6000	1530	2100*1530	1780
RBSJY2.0-8	2000	8000	1690	2100*1530	2070
RBSJY2.0-10	2000	10000	1850	2100*1530	2250
RBSJY2.0-12	2000	12000	1954	2550*1600	3200
RBSJY2.0-14	2000	14000	2230	2816*1600	3900

B.300kg-500kg electric scissor lift platform lift
Model	Capacity (kg)	Lifting.Height (mm)	Platform size (mm)	Min.Height (mm)	Weight (kg)
RBSJY0.5-6	500	6000	2100*830	1200	880
RBSJY0.5-7	500	7000	2100*830	1280	1250
RBSJY0.5-8	500	8000	2100*930	1380	1050
RBSJY0.5-9	500	9000	2100*930	1500	1165
RBSJY0.5-10	500	10000	2100*1230	1530	1360
RBSJY0.5-11	500	11000	2100*1230	1650	1400
RBSJY0.5-12	500	12000	2550*1530	1750	2260
RBSJY0.5-14	500	14000	2812*1530	1810	2486
RBSJY0.3-16	300	16000	2812*1600	2080	3063
RBSJY0.3-18	300	18000	3070*1600	2080	3900

C.Features
Aerial work electric scissor lift Features: lifting mechanism of high-strength Manganese steel rectangular tube production. With a safety device to prevent Overloading of the lift. Provided to prevent hydraulic line rupture safety Protection valve. Emergency lowering device in case of a power outage.
D.Workshop

D.Internation Cerfications
