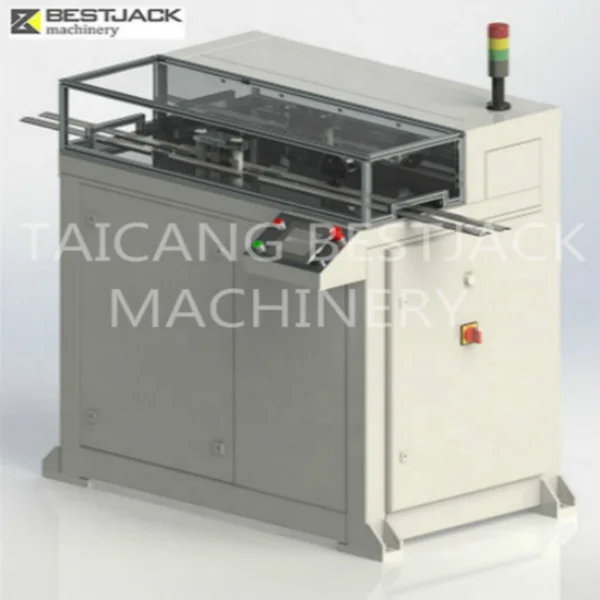

Plastic pvc extrusion profile automatic online punching machine for sunshade garage door automatic speed control

Product details
Brand Name:bestjack;Port:shanghai;
Power consumption:3KW;Dimension(L*W*H):L1350* W950* H1500;
Payment Terms:L/C,T/T;Speed regulation mode:Encoder feedback and automatic speed regulation;
Supply Ability:10 Set/Sets per Day;Packaging Detail:wooden box;
Condition:New;Applicable Industries:Manufacturing Plant,Printing Shops,Construction works ;
Compressed air:0.4MPa-0.8MPa;Weight:700KG;
Warranty:1 Year;After-sales Service Provided:Online support;
Air flow supply:≥ 0.5M/Min;Power supply:380VAC 3PH 50/60HZ N PE;
Place of Origin:Jiangsu China (Mainland);
Product Description

Product Application

Product features:

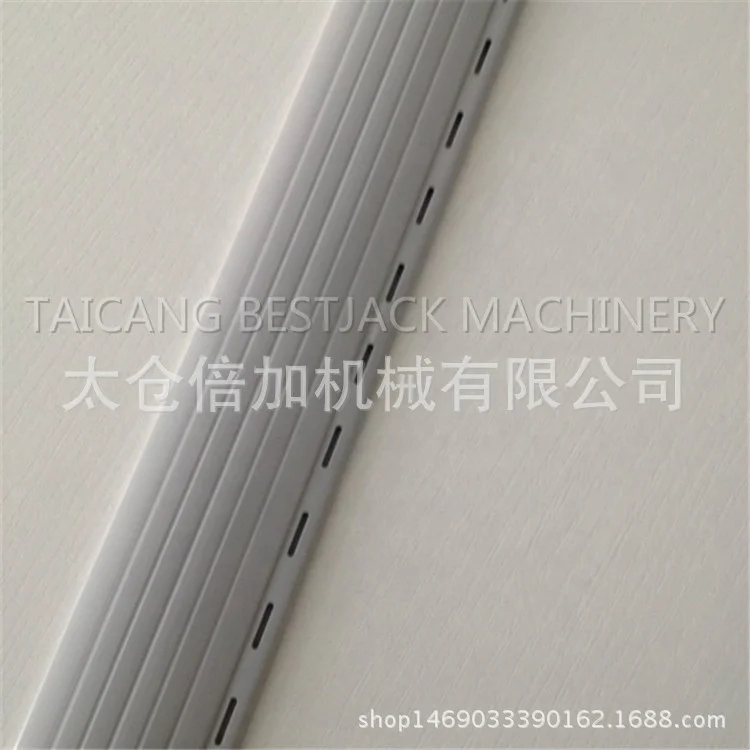

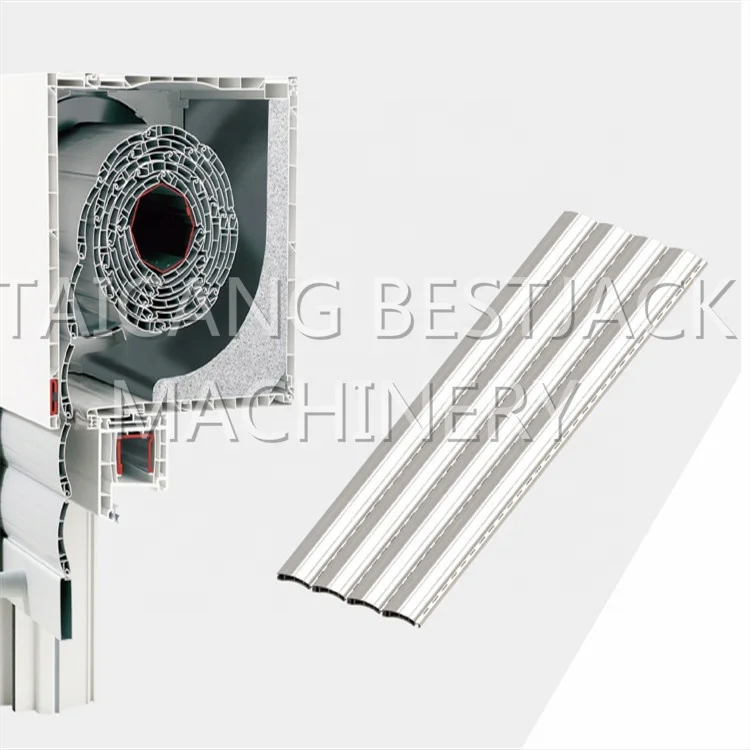

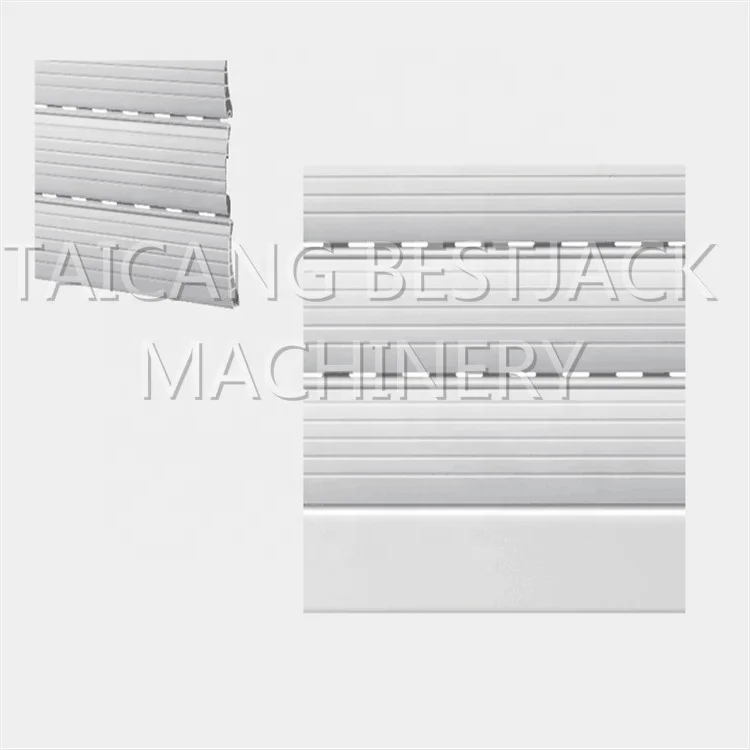

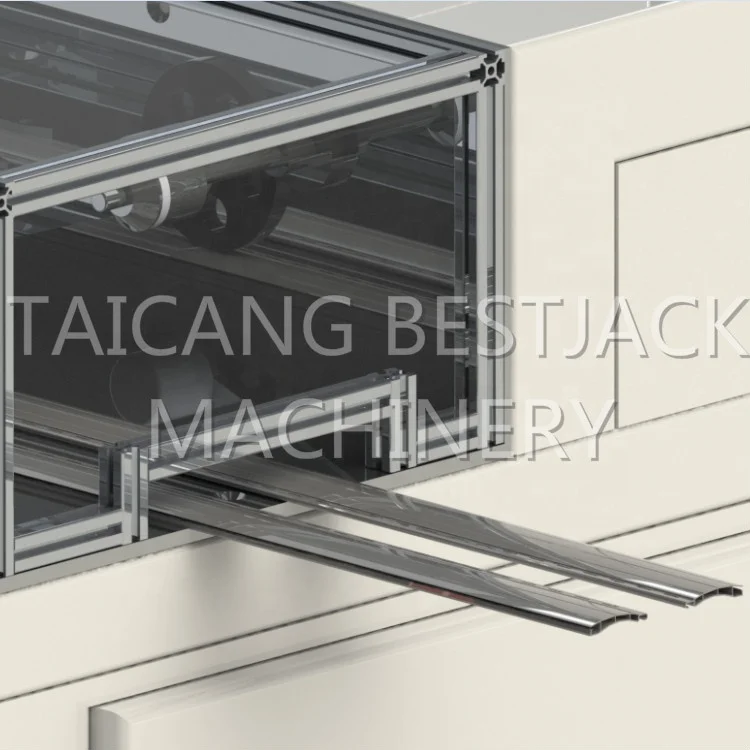

1.  Applicable for extruded online punching (for example punching of the sunshade curtain).
2.  The punching equipment is directly connected to the extrusion production line. The holes in the production process are punched. Subsequent transfer to other devices for re-processing is not needed, which saves manpower and other resources and significantly improve the production efficiency.
3.  The equipment adopts advanced HMI + PLC control mode, with user-friendly operation.
4.  The equipment can automatically regulate its operating speed and punching speed according to the feedback.
5.  The punching die is driven by servo mechanism, with stability and high accuracy!
Adopt new motion punching die and achieve online movement punching (with national invention patent, patent No.: ZL 2014 1 0496723.5).


Technical parameters

Model
OP-120
Dimension
L1350*W950*H1500
Weight
700KG

Power supply
380VAC 3PH 50/60HZ N PE
Power consumption
3KW
Compressed air
0.4MPa-0.8MPa
Air flow supply
≥ 0.5M³/Min
Motion control mode
Servo/pneumatic
(Speed regulation mode
Encoder feedback and automatic speed regulation
Certifications
Detailed Images

Machine Parts

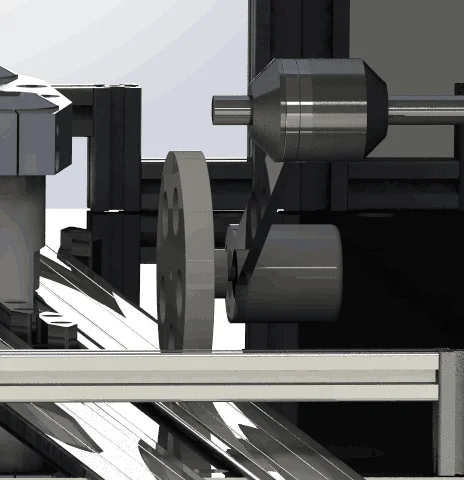

Name:  encoder

Brand: BESTJACK

Original:CHINA

Adjusting the punching speed by using the encoder to monitor the change of the motion speed of the workpiece in real time

Machine Parts

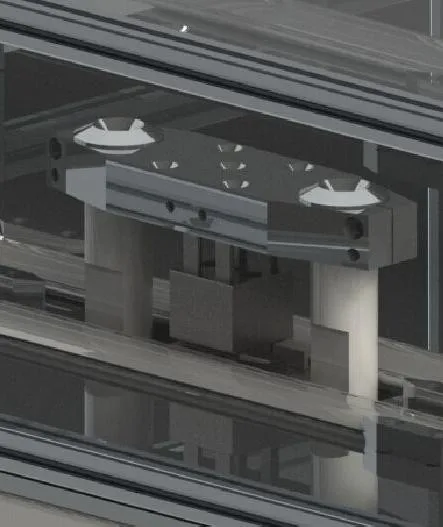

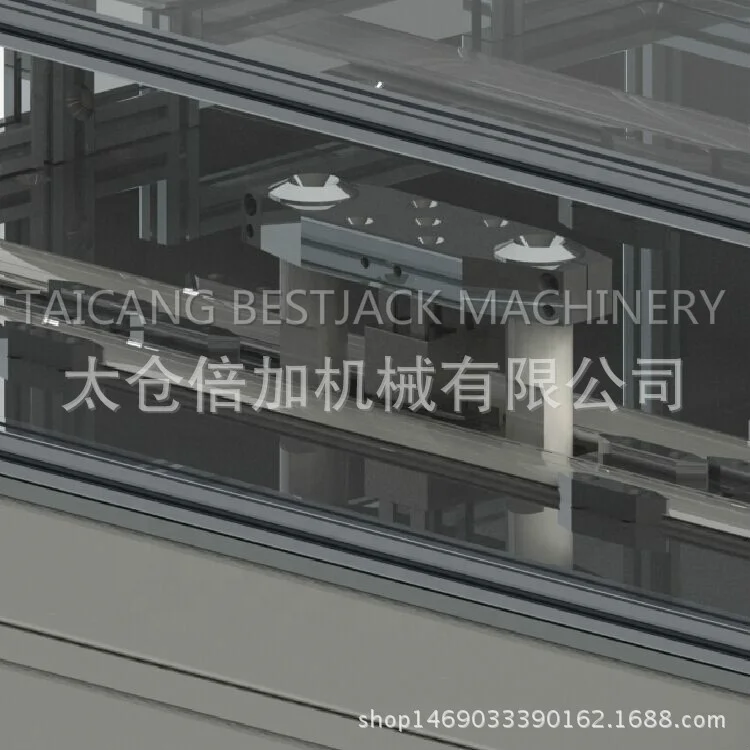

Name: moving die punching
Brand: BESTJACK
Original: CHINA
Using a new type of moving die punching to realize the online motion punching (through the national invention patent, the patent number: ZL 201410496723.5)

Machine Parts

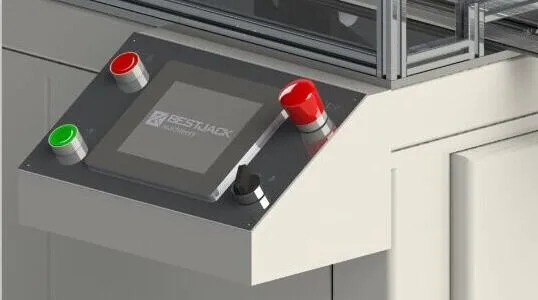

Name: HMI+PLC control
Brand:BESTJACK
Original:
CHINA

Advanced HMI+PLC control operation is simple and practical

Machine Parts

Name: blow up waste device
Brand: BESTJACK
Original:
CHINA

A blow up waste device is installed to make the equipment have no hidden danger of plugging

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
The size of the package can be adjusted according to the size of the machine
Weight
0.75T



Packaging Details
The normal package is wooden box.Packing with aluminum foil inside, moistureproof. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
The size of the package can be adjusted according to the size of the machine
Weight
0.75T



Packaging Details
The normal package is wooden box.Packing with aluminum foil inside, moistureproof. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
