Wired Recessed Mounted Magnetic Electrica Door Contact BR-1021T
- 1.00 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Dimension (mm): | 3/4" diameter; | Model Number: | BR-1021T; |
| Place of Origin: | Zhejiang China; | Closed Gap(in steel door)[Inch(mm)]: | 1/2+ (15); |
| Whether the smart: | NO; | Loop Type: | Closed; |
| Max. Current: | 0.5A; | Maximum Initial Contact Resistance(Ohm): | 0.150; |
| Payment Terms: | Western Union,T/T; | Style: | UL Wired Recessed Mounted Magnetic Electrica Door Contact BR-1021T; |
| certificate: | CE UL CUL reed switch; | Brand Name: | Sentek Bestkey; |
| Supply Ability: | 40000 Piece/Pieces per Week UL Wired Recessed Mounted Magnetic Electrica Door Contact; | Max. Voltage: | 100V; |
| color: | white brown grey reed switch; | Reed Form: | N/O; |
| Port: | Ningbo/Shanghai; | Wire range for terminals: | #20~#24AWG; |
| Certification: | UL, ROSH, CE, REACH; | Packaging Detail: | standard packing:500pcs/carton; |
| Depature Gap(in steel door)[Inch(mm)]: | 0.6 (17); |

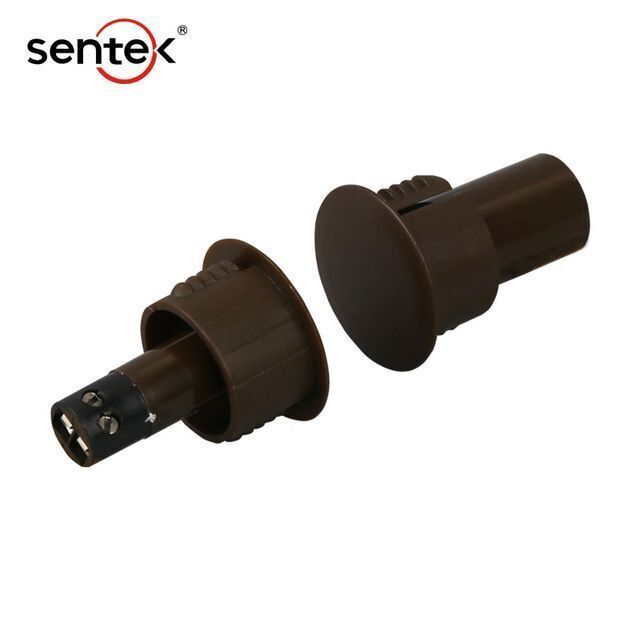

UL Wired Recessed Mounted Magnetic Electrica Door Contact BR-1021T
Product Description
Specification:
| Style: | UL Wired Recessed Mounted Magnetic Electrica Door Contact BR-1021T | Item: | BR-1021T |
| Size | 3/4”dia.x13/16"L | Color: | White, Brown, Grey |
| Cable: | #20~#24AWG | Loop Type: | closed |
| Reed Form: | N/O | Colsed Gap[Inch(mm)] | 1/2+ (15) |
| Depature Gap[Inch(mm)] | 0.6 (17) | Maximum InitialContact Resistance(Ohm) | 0.150 |
| MaximumContact Rating(W) | 7.5 | Maximum Switching Voltage(VDC/VAC) | 100 |
| Maximum Switching Current(A) | 0.4 | Certificate | CE, UL |
UL Wired Recessed Mounted Magnetic Electrica Door Contact BR-1021T
Features:
1) Diameter: 3/4", press to fit
2) Suitable for steel door installation
3) Self-locking
4) Longer leads available
5) Standard 18" 22AWG leads
6) Switch or magnet available separately
7) Colors: white, brown, grey

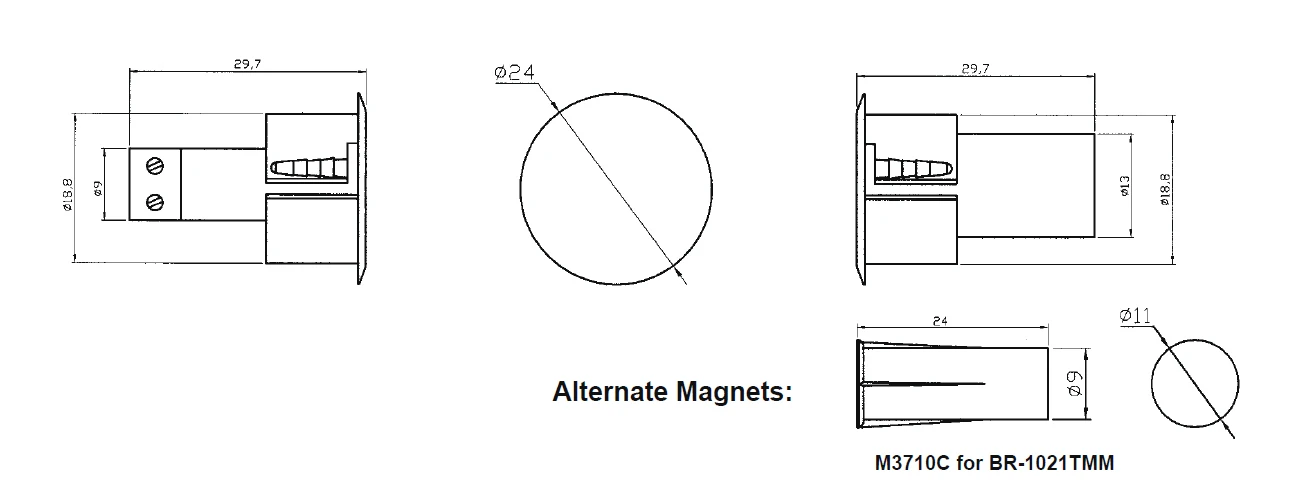

Dimension (mm):
