MF4020 bandsaw blade welder / MF4018 wood band saw blade butt welder

Click here to contact

Product details

Warranty:	One Year;	After-sales Service Provided:	Engineers available to service machinery overseas;
Usage:	Saw blade tipped machine;	Certification:	ISO9001-2008;
Dimensions:	700 X 1000 X1300 mm;	Saw blade thickness:	below 1.0mm;
Service:	automatic saw blade welding machine 100% debug before shipmen;	Packaging Detail:	automatic band saw blade butt welder wooden case or as your request;
Place of Origin:	Hebei China (Mainland);	Application:	saw blade welding machine;
Factory:	you are welcomed to visit our factory;	Saw blade width:	40-180mm;
Condition:	New;	Supply Ability:	100 Set/Sets per Month bandsaw blade welder / wood band saw blade butt welder;
Size:	70010001300mm;	Saw blade:	Stellite saw blade;
Input Voltage:	220V;	Port:	Tianjin;
Video:	automatic saw blade welding machine working video available;	Payment Terms:	L/C,T/T,Western Union;
Type:	Bandsaw blade welder / MF4018 wood band saw blade butt welder;	Brand Name:	RFX;

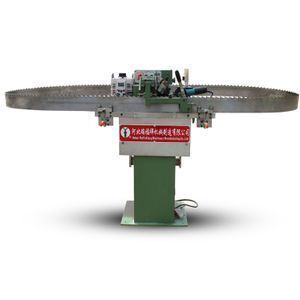

MF4020 bandsaw blade welder / MF4018 wood band saw blade butt welder

Characteristics

1.Characteristic of MF4020 bandsaw blade welder / MF4018 wood band saw blade butt welder:

0.1 saw blade welding and grinding conbined together save time and money

0.2 high efficiency and accuracy

0.3 easy to operate

2.Application of MF4020 bandsaw blade welder / MF4018 wood band saw blade butt welder:

Alloyed tooth saw blade welding and sharpening

3.Specifications of MF4020 bandsaw blade welder / MF4018 wood band saw blade butt welder:

Alloy tooth diameter	3-5mm
Welding Saw blade width	40-180mm
Welding transformer capacity	10 kva
Power frequence	50HZ
Voltage	380v
Welding Saw blade thickness	0.7-1.5mm
Tooth space range	20-45mm
Tooth grinding motor	0.75kw
Cup shape grinding wheel diameter	100mm
Grinding wheel speed	2825r/min
Overall size	227013001120mm
Total weight	340kgs
