3mm -300mm automatic pulse tube pipe Orbital tig mig ARC welding machine best price!

Supplier: Zhengzhou Kehui Technology Co., Ltd.
Region: Henan, China
Contact: Ms Michelle Chen
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE;	Brand Name:	Kehui;
Port:	Qingdao;	Welding method:	Automation TIG welding;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Construction works ,Energy & Mining,tube welding machine;	Warranty:	1 Year;
Condition:	New;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Warranty of core components:	1 Year;	Video outgoing-inspection:	Provided;
Packaging Detail:	Inner cartons wrapped with plastic wrap, the outer layer wooden;	high churn:	PLC control;
Showroom Location:	None;	Power (kW):	7.9kw;
Weight:	65KG,65KG;	Usage:	tube to pipe welding,carbon steel, stainless steel welding;
Voltage:	220/380v,220/380v;	Weight (KG):	65;
operate:	LCD touch screen;	Core Components:	Bearing,Gear;
Power Source:	250A~400A;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Dimensions:	1000X1000X1300mm,1000X1000X1300mm;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Tube Diameter:	3-180mm,3-180mm;	apply tube:	thin-walled pipe;
Key Selling Points:	Automatic;	Supply Ability:	100 Set/Sets per Month;
Power:	7.9kw;	Place of Origin:	Henan China;
Machinery Test Report:	Provided;	Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan;
Marketing Type:	New Product 2020;

Product Description

3mm -300mm automatic pulse tube pipe Orbital ARC welding machine best price!

KHGC Orbital welding machine can be used for tube outer diameter from Ф3-Ф180mm tube-tube automatic welding at all positions. It is especially suitable for welding carbon steel, alloy steel, stainless steel and titanium alloy thin-walled tubes.

Advantage:

1. Mature technology, sealed welding, weld pipe perfect. Used the maxon servo motor adapt for small space; The welding head can be rotated continuously and don't need the spot welding joint.

2. Welding accurate. Using IGBT inverter dc pulse and TIG power supply with the advanced control technology to ensure the finished product is perfect.

3. 7 types of welding heads to adapt different requirements. Customer could choose the welding head according the pipe size and your space. You also could buy some different heads to cooperate the control system for cost saving.

4. Digital programming and LCD touch. The system store could have 100 different process specifications and each one can be divided into 6 sections. You can used it anytiome.

Detailed Images

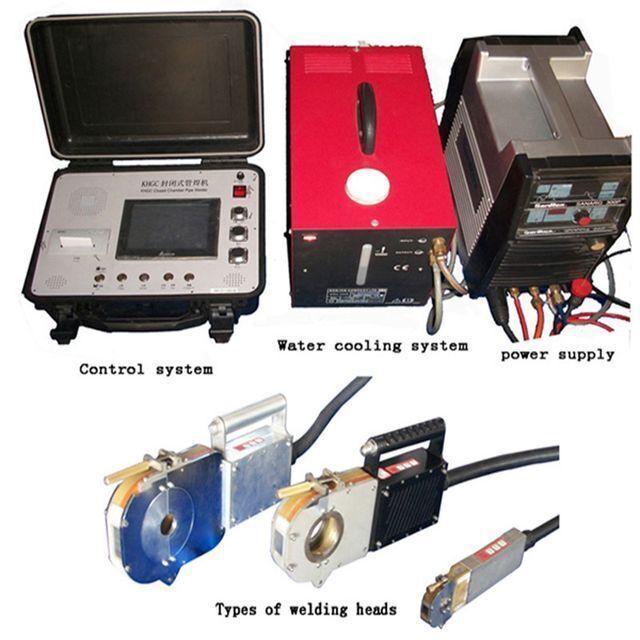

Control cabinet Water cooling Welded connection Power suppler

Technical Parameter Of Orbital welding machine
Outer diameter of weldable pipe	φ3 mm ~φ180 mm	Rated load duration	60 %
Power control mode	IGBT	Rated no-load voltage	78 V
Power	380V 50 / 60 Hz	Rated welding voltage	22.6 V
Voltage allows range of fluctuation	380 V ± 10 %	Adjustment range of welding current	5 ~ 300 A
Rated input capacity	13.9 KVA	Pulse frequency	0.5 ~ 500 Hz
Rated input power	9.5KW	Pulse duty ratio	5~95%

The KHGC Orbital welding machine have 7 types to suitable for welding different pipe diameters. Customer could choose it by your siae of need welding pipe and space.

It's also could buy a set of control system and different welding head to used for different pipe.

Welding Head Models And Parameters
Model	KHGC 20	KHGC 34	KHGC 63	KHGC 89	KHGC 114	KHGC180
Weld speed (rpm)	0.6-10	0.6-10	0.3-5	0.1-2.5	0.1-2.5	0.1-2.5
Suitable Dia (mm)	3-20	10-34	12-63	16-89	20-114	51-180
Electrode Dia (mm)	1.6	1.6/2.4	1.6/2.4	1.6/2.4	1.6/2.4	1.6/2.4

Application

Application for chemical, boiler, heat exchanger, pressure vessel, pharmaceutical, construction machinery, military and nuclear power industries.

This is the reality effect show uesd of our Orbital welding machine.

Other Type Orbital Welding Machine

Certifications

Kehui always point to technology accumulation on intelligent welding since 1996. Up to now, we has 28 national patents and 6 software Copyrights. Kehui always the leader of Intelligent welding factory system. This showed some certifications of our melding machine.

Packing & Delivery

Packed in wooden cases with shockproof foam up to about 30mm thick to ensure the safely. Professional logistics system to deliver the goods to port on time.

FAQ

Q1.Are you a factory or trading company?
A: We are a professional manufacturer specialized in Robot Welding Machines, automatic welding system since 1996, located in Zhengzhou, Capital city of Henan Province, China.

Q2. How could I know if this machine is suitable for me?
A: Before ordering, we will provide every details of the machine for your reference, or you could tell us your detailed requirements, our technician will recommend the most suitable machine for you.

Q3.How long is the warranty time for your products?

A: Our officially promised fiber laser marking machine warranty time is two whole year after delivery at best.

Q4. Can I visit your factory?

A: Welcome to visit our factory. We build business relationship with many well-known factory. We can visit the cooperative factories if you need, and you could know more thing about kehui according that.

Q5.I haven't done business with you guys before,how can i trust your company?
A: We would trade on Alibaba online to make sure your money is safely; Kehui build on 1996, we has rich experience of intelligent welding factory solutions. Kehui had established business relationship with so many famous brands. Quality is reliable.

Q6.What's the shipment terms and delivery time of your company?
A: It depends on the quantity of your order. Meanwhile,our board attach importance to foreign orders ,thus the orders aboard will have priority over it at home.

Our Company

Zhengzhou Kehui Technology is a professional integrated welding project solution supplier. We located in zhengzhou - capital of henan province, and we have more than 300 employees.

We have four manufacture basements in China, total 26000 m2, Each basement has experienced workers, is capable of technical programming, site construction, manufacture, technical support, installation, commissioning and system integration. What is more, share resource and well cooperation could strongly support big project.

Some cooperation factory show
